Automotive Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Coil Type | Coil Current | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Style | Operating Temperature | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A21CSP48VDC1.6RELAY AUTOMOTIVE SPDT 40A 48V |
1,347 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 33.3 mA | SPDT (1 Form C) | 40 A | 75VDC - Max | 48VDC | 33.6 VDC | 4.8 VDC | 7 ms | 5 ms | Sealed - Fully | Through Hole | -40°C ~ 125°C | PC Pin |
|

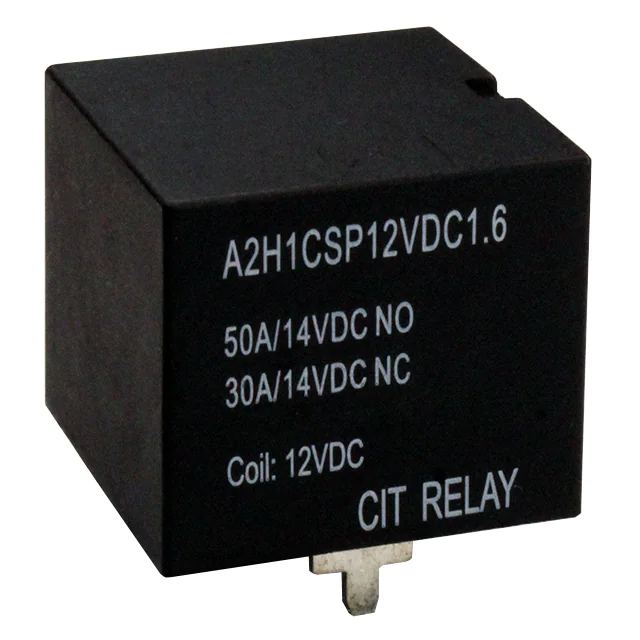

A2H1CSP12VDC1.6RELAY AUTOMOTIVE SPDT 50A 12V |
383 |
|
Datasheet |
A2H | Tray | Active | Non Latching | 133.3 mA | SPDT (1 Form C) | 50 A | 75VDC - Max | 12VDC | 7.8 VDC | 1.2 VDC | 10 ms | 10 ms | - | Through Hole | -40°C ~ 125°C | PC Pin |
|

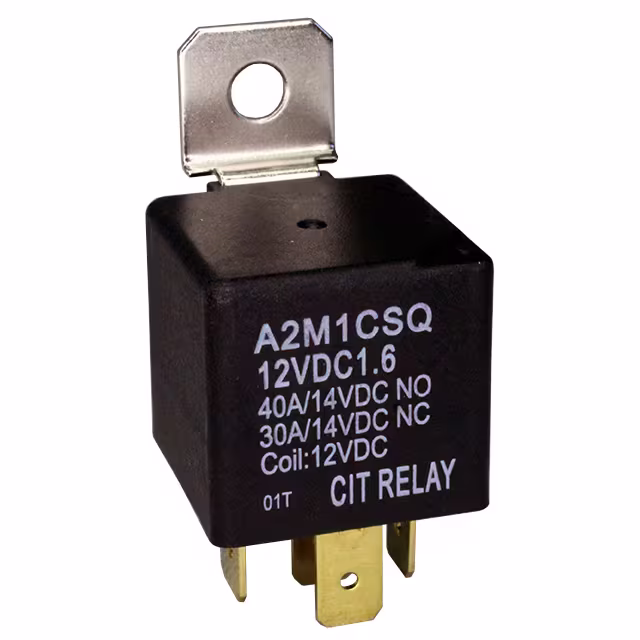

A2M1CSQ12VDC1.6RRELAY AUTOMOTIVE SPDT 40A 12V |
270 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 133.3 mA | SPDT (1 Form C) | 40 A | 75VDC - Max | 12VDC | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | -40°C ~ 125°C | Quick Connect - 0.250" (6.3mm) |
|

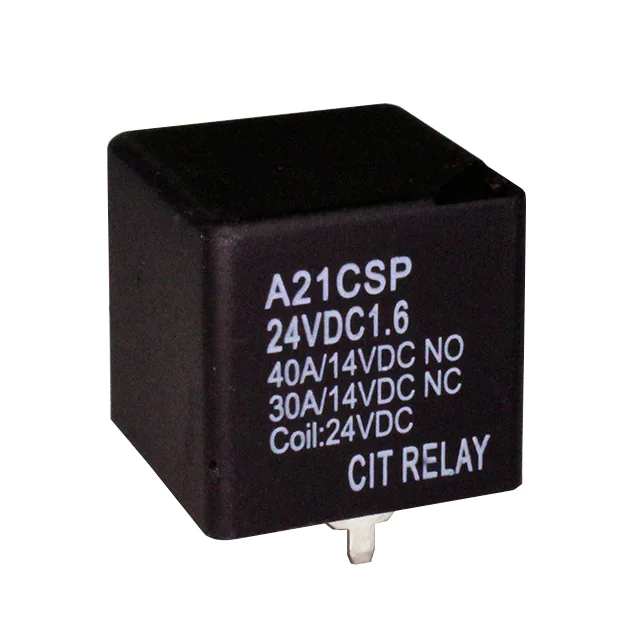

A21CSP24VDC1.6RELAY AUTOMOTIVE SPDT 40A 24V |
368 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 66.7 mA | SPDT (1 Form C) | 40 A | 75VDC - Max | 24VDC | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Fully | Through Hole | -40°C ~ 125°C | PC Pin |
|
A21CSP24VDC1.6RRELAY AUTOMOTIVE SPDT 40A 24V |
644 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 66.7 mA | SPDT (1 Form C) | 40 A | 75VDC - Max | 24VDC | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Through Hole | -40°C ~ 125°C | PC Pin |
|

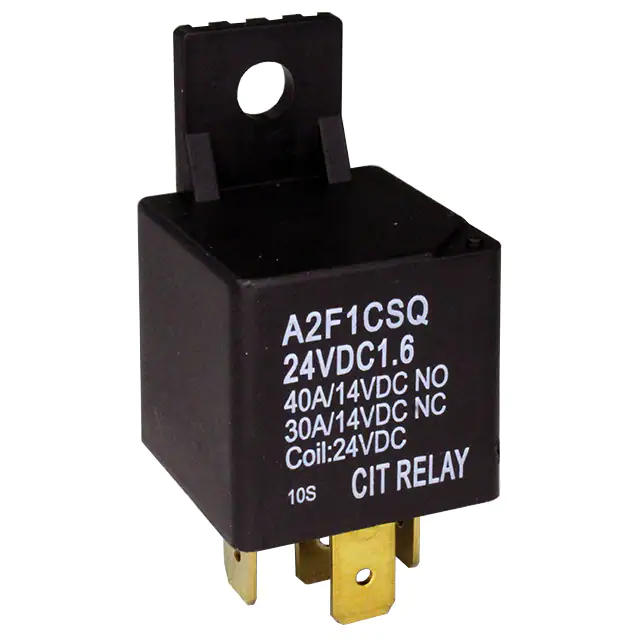

A2F1CSQ24VDC1.6RRELAY AUTOMOTIVE SPDT 40A 24V |
121 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 66.7 mA | SPDT (1 Form C) | 40 A | 75VDC - Max | 24VDC | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | -40°C ~ 125°C | Quick Connect - 0.250" (6.3mm) |
|

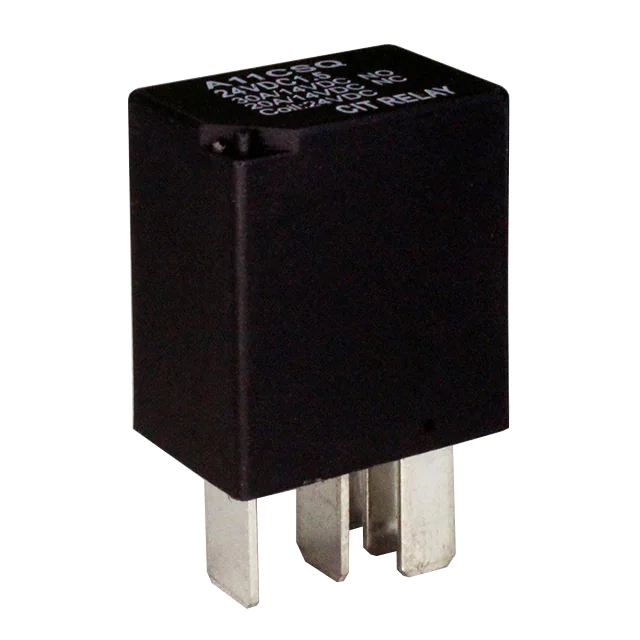

A11CSQ24VDC1.5RRELAY AUTOMOTIVE SPDT 30A 24V |
1,319 |
|
Datasheet |
A1 | Tube | Active | Non Latching | 62.5 mA | SPDT (1 Form C) | 30 A | 75VDC - Max | 24VDC | 18 VDC | 2.4 VDC | 10 ms | 7 ms | Resistor, Sealed - Fully | Socketable | -40°C ~ 85°C | Plug In, Quick Connect - 0.187" (4.7mm) |
|

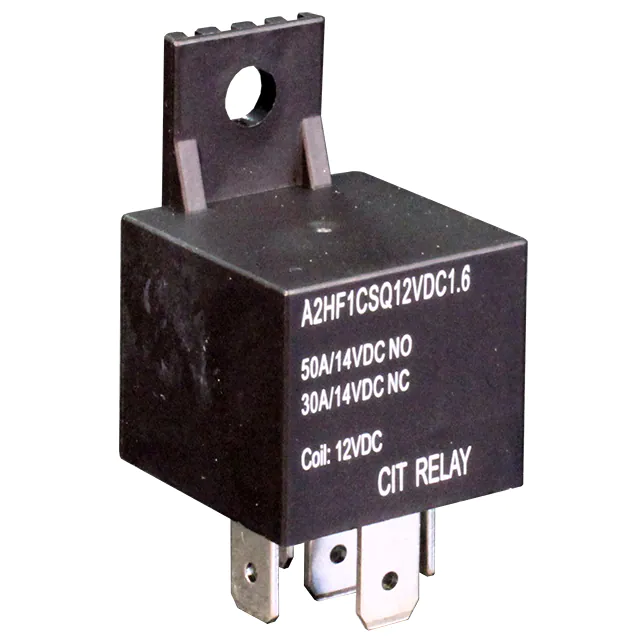

A2HF1CSQ12VDC1.6RRELAY AUTOMOTIVE SPDT 50A 12V |
305 |
|
Datasheet |
A2H | Tray | Active | Non Latching | 150 mA | SPDT (1 Form C) | 50 A | 75VDC - Max | 12VDC | 7.8 VDC | 1.2 VDC | 10 ms | 10 ms | Resistor, Sealed - Fully | Chassis Mount | -40°C ~ 125°C | Quick Connect - 0.250" (6.3mm) |
|

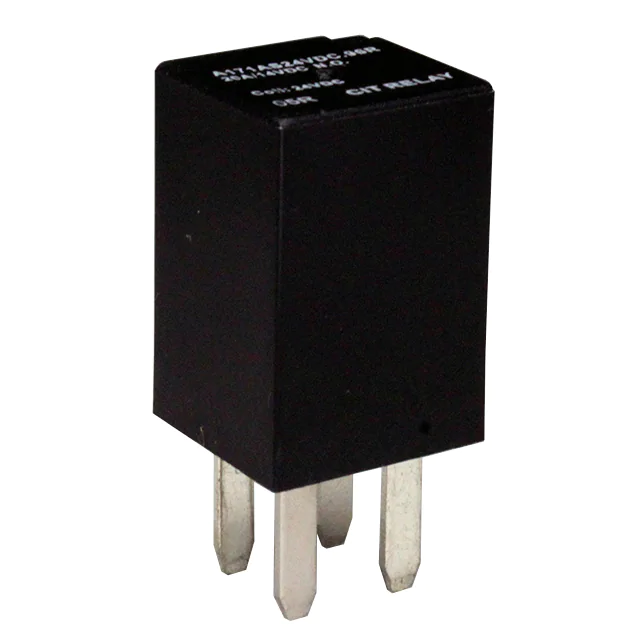

A171AHS24VDC.96RRELAY AUTOMOTIVE SPST 30A 24V |
3,991 |
|
Datasheet |
A17 | Tray | Active | Non Latching | 40 mA | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 24VDC | 18 VDC | 2.4 VDC | 10 ms | 5 ms | Resistor, Sealed - Fully | Through Hole | -40°C ~ 85°C | PC Pin |
|
A171AHS12VDC.96RRELAY AUTOMOTIVE SPST 30A 12V |
630 |
|
Datasheet |
A17 | Tray | Active | Non Latching | 80 mA | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 12VDC | 9 VDC | 1.2 VDC | 10 ms | 5 ms | Resistor, Sealed - Fully | Through Hole | -40°C ~ 85°C | PC Pin |
|
G8G-1A7R DC12AUTO MOTIVE PCB RELAY, DC 12V |
2,319 |
|
Datasheet |
G8G | Tube | Active | Non Latching | 40 mA | SPST-NO (1 Form A) | 35 A | 14VDC - Nom | 12VDC | 6.5 VDC | 0.5 VDC | 10 ms | 5 ms | Sealed - Flux Protection | Socketable | -40°C ~ 125°C | Plug In |
|

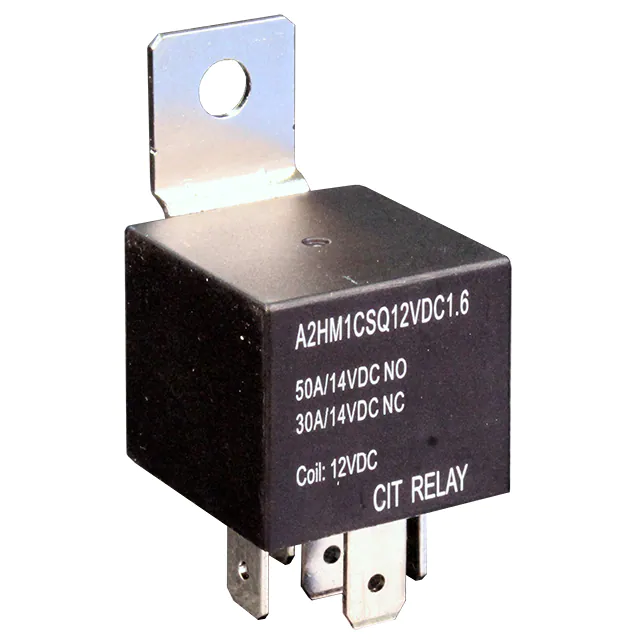

A2HM1CSQ12VDC1.6RRELAY AUTOMOTIVE SPDT 50A 12V |
706 |
|
Datasheet |
A2H | Tray | Active | Non Latching | 150 mA | SPDT (1 Form C) | 50 A | 75VDC - Max | 12VDC | 7.8 VDC | 1.2 VDC | 10 ms | 10 ms | Resistor, Sealed - Fully | Chassis Mount | -40°C ~ 125°C | Quick Connect - 0.250" (6.3mm) |
|
A2HF1CSQ24VDC1.6DRELAY AUTOMOTIVE SPDT 50A 24V |
455 |
|
Datasheet |
A2H | Tray | Active | Non Latching | 66.7 mA | SPDT (1 Form C) | 50 A | 75VDC - Max | 24VDC | 15.6 VDC | 2.4 VDC | 10 ms | 10 ms | Diode, Sealed - Fully | Chassis Mount | -40°C ~ 125°C | Quick Connect - 0.250" (6.3mm) |
|

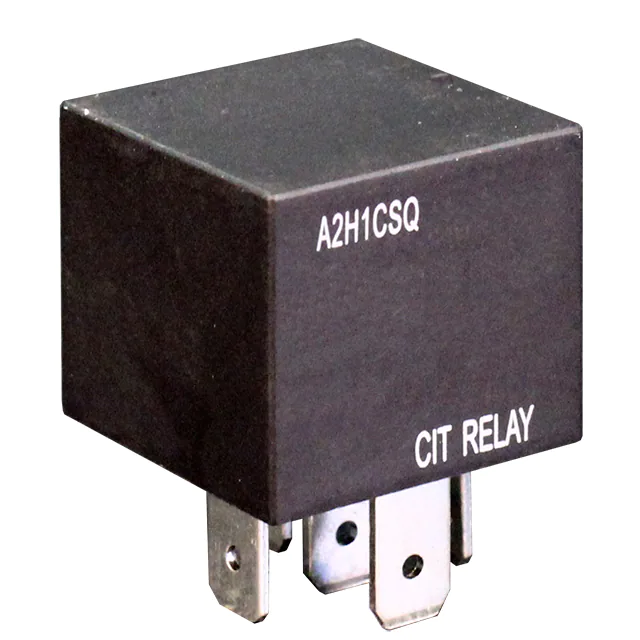

A2H1CSQ24VDC1.6RRELAY AUTOMOTIVE SPDT 50A 24V |
298 |
|
Datasheet |
A2H | Tray | Active | Non Latching | 75 mA | SPDT (1 Form C) | 50 A | 75VDC - Max | 24VDC | 15.6 VDC | 2.4 VDC | 10 ms | 10 ms | Resistor, Sealed - Fully | Socketable | -40°C ~ 125°C | Plug In, Quick Connect - 0.250" (6.3mm) |
|
AZ9731-1C-12DC4R1RELAY AUTOMOTIVE SPDT 30A 12V |
942 |
|
Datasheet |
AZ9731 | Tray | Active | Non Latching | 133.3 mA | SPDT (1 Form C) | 30 A | 75VDC - Max | 12VDC | 7.8 VDC | 1.8 VDC | 7 ms | 5 ms | Resistor, MINI-ISO, Shrouded w/ Steel Bracket Sealed - Epoxy | Chassis Mount | -40°C ~ 125°C | Plug In, Quick Connect - 0.250" (6.3mm) |
|
AZ9871-2A-12DETRELAY AUTOMOTIVE DPST 30A 12V |
877 |
|
Datasheet |
AZ9871 | Tray | Active | Non Latching | 47.2 mA | DPST-NO (2 Form A) | 30 A | 24VDC - Max | 12VDC | 6.9 VDC | 1.5 VDC | 3 ms | 1.5 ms | Sealed - Epoxy | Through Hole | -40°C ~ 105°C | PC Pin |
|
|
AZ9731-1C-12DC3R1RELAY AUTOMOTIVE SPDT 30A 12V |
330 |
|
Datasheet |
AZ9731 | Tray | Active | Non Latching | 133.3 mA | SPDT (1 Form C) | 30 A | 75VDC - Max | 12VDC | 7.8 VDC | 1.8 VDC | 7 ms | 5 ms | MINI-ISO, Resistor | Socketable | -40°C ~ 125°C | Plug In, Quick Connect - 0.250" (6.3mm) |
|
CB1A-24VRELAY AUTOMOTIVE SPST 20A 24V |
702 |
|
Datasheet |
CB | Bulk | Active | Non Latching | 75 mA | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 24VDC | 14 VDC | 2.4 VDC | 15 ms | 15 ms | Sealed - Fully | Socketable | -40°C ~ 85°C | Plug In, Quick Connect - 0.250" (6.3mm) |
|
A2M1ASQ48VDC1.6RRELAY AUTOMOTIVE SPST 40A 48V |
352 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 33.3 mA | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 48VDC | 33.6 VDC | 4.8 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | -40°C ~ 125°C | Quick Connect - 0.250" (6.3mm) |
|
|
A2M1ASQ48VDC1.6DRELAY AUTOMOTIVE SPST 40A 48V |
351 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 33.3 mA | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 48VDC | 33.6 VDC | 4.8 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Chassis Mount | -40°C ~ 125°C | Quick Connect - 0.250" (6.3mm) |
