Automotive Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Coil Type | Coil Current | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Style | Operating Temperature | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CB1AHF-P-12VRELAY AUTOMOTIVE SPST 70A 12V |
888 |
|
Datasheet |
CB | Bulk | Active | Non Latching | 117 mA | SPST-NO (1 Form A) | 70 A | 14VDC - Nom | 12VDC | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Sealed - Flux Protection | Through Hole | -40°C ~ 85°C | PC Pin |
|
CB1AH-R-12VRELAY AUTOMOTIVE SPST 70A 12V |
1,962 |
|
Datasheet |
CB | Bulk | Active | Non Latching | 134 mA | SPST-NO (1 Form A) | 70 A | 14VDC - Nom | 12VDC | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Resistor, Sealed - Fully | Socketable | -40°C ~ 85°C | Plug In, Quick Connect - Multiple Sizes |
|
|
CB1A-T-P-12VRELAY AUTOMOTIVE SPST 40A 12V |
665 |
|
Datasheet |
CB | Bulk | Active | Non Latching | 117 mA | SPST-NO (1 Form A) | 40 A | 14VDC - Nom | 12VDC | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Sealed - Fully | Through Hole | -40°C ~ 125°C | PC Pin |
|
CB1AH-R-M-12VRELAY AUTOMOTIVE SPST 70A 12V |
775 |
|
Datasheet |
CB | Bulk | Active | Non Latching | 134 mA | SPST-NO (1 Form A) | 70 A | 14VDC - Nom | 12VDC | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Resistor, Sealed - Fully | Chassis Mount | -40°C ~ 85°C | Quick Connect - 0.250"/0.375" |
|
RC-400012-DSRELAY GEN PURPOSE SPDT 40A 12V |
273 |
|
Datasheet |
- | Bulk | Active | Non Latching | - | SPDT (1 Form C) | 40 A | 12VDC - Nom | 12VDC | 7.8 VDC | 1.2 VDC | - | - | Diode | Chassis Mount | -40°C ~ 85°C | Plug In |
|
6-1419137-4RELAY GEN PURPOSE SPDT 25A 12V |
431 |
|
Datasheet |
- | Bulk | Active | Non Latching | 100.8 mA | SPDT (1 Form C) | 25 A | 14VDC - Nom | 12VDC | 7.2 VDC | 1.6 VDC | 6 ms | 3 ms | Diode | Socketable | -40°C ~ 125°C | Plug In |
|
CA1A-12V-C-5RELAY AUTOMOTIVE SPST 30A 12V |
235 |
|
Datasheet |
CA | Bulk | Active | Non Latching | 150 mA | SPST-NO (1 Form A) | 30 A | 16VDC - Max | 12VDC | 8 VDC | 0.6 VDC | 10 ms | 10 ms | - | Socketable | -30°C ~ 80°C | Plug In |
|
CA1A-12V-A-5RELAY AUTOMOTIVE SPST 30A 12V |
628 |
|
Datasheet |
CA | Bulk | Active | Non Latching | 150 mA | SPST-NO (1 Form A) | 30 A | 16VDC - Max | 12VDC | 8 VDC | 0.6 VDC | 10 ms | 10 ms | - | Chassis Mount | -30°C ~ 80°C | Plug In |
|
CA1-DC12V-NRELAY AUTOMOTIVE SPDT 20A 12V |
1,490 |
|
Datasheet |
CA | Tray | Active | Non Latching | 150 mA | SPDT (1 Form C) | 20 A | 15VDC - Max | 12VDC | 8 VDC | 0.6 VDC | 10 ms | 10 ms | - | Chassis Mount | -30°C ~ 80°C | Plug In |
|
|
CB1AH-M-12VRELAY AUTOMOTIVE SPST 70A 12V |
932 |
|
Datasheet |
CB | Bulk | Active | Non Latching | 150 mA | SPST-NO (1 Form A) | 70 A | 14VDC - Nom | 12VDC | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Sealed - Fully | Chassis Mount | -40°C ~ 85°C | Quick Connect - 0.250"/0.375" |
|

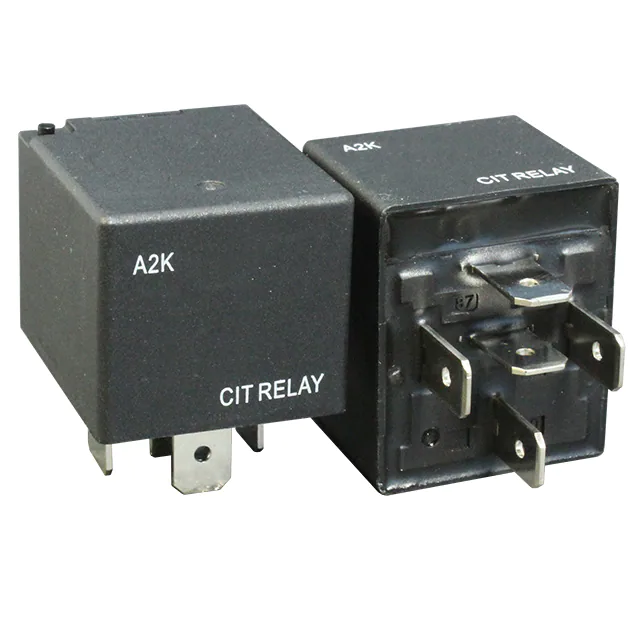

A2K1ASQ12VDC1.6RELAY AUTOMOTIVE SPST 120A 12V |
130 |
|
Datasheet |
A2K | Tray | Active | Non Latching | 133.3 mA | SPST-NO (1 Form A) | 60 A | 110VDC - Max | 12VDC | 7.8 VDC | 1.2 VDC | 15 ms | 15 ms | Magnetic Blowout, Sealed - Fully | Socketable | -40°C ~ 125°C | Plug In, Quick Connect - 0.250" (6.3mm) |
|
CB1-T-R-12VRELAY AUTOMOTIVE SPDT 40A 12V |
307 |
|
Datasheet |
CB | Bulk | Active | Non Latching | 134 mA | SPDT (1 Form C) | 40 A | 14VDC - Nom | 12VDC | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Resistor, Sealed - Fully | Socketable | -40°C ~ 125°C | Plug In, Quick Connect - 0.250" (6.3mm) |
|
|
CB1AH-24VRELAY AUTOMOTIVE SPST 70A 24V |
568 |
|
Datasheet |
CB | Bulk | Active | Non Latching | 75 mA | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 24VDC | 14 VDC | 2.4 VDC | 15 ms | 15 ms | Sealed - Fully | Socketable | -40°C ~ 85°C | Plug In, Quick Connect - Multiple Sizes |
|
2359393-1RELAY V23074A2002A402-EV-CBOX |
854 |
|
Datasheet |
Micro Relay A | Box | Active | Non Latching | 55.8 mA | SPST-NO (1 Form A) | 30 A | 32VDC - Max | 24VDC | 14.4 VDC | 3.6 VDC | 6 ms | 3 ms | Diode | Socketable | -40°C ~ 125°C | Plug In, Quick Connect - Multiple Sizes |
|
6-1393292-3RELAY AUTOMOTIVE SPDT 30A 24V |
277 |
|
Datasheet |
Micro Relay A | Bulk | Active | Non Latching | - | SPDT (1 Form C) | 30 A | 24VDC - Nom | 24VDC | 14.4 VDC | 3.6 VDC | - | - | Diode | Socketable | -40°C ~ 125°C | Plug In, Quick Connect - Multiple Sizes |
|
|
A2K1CSP12VDC1.6RELAY AUTOMOTIVE SPDT 120A 12V |
320 |
|
Datasheet |
A2K | Tray | Active | Non Latching | 133.3 mA | SPDT (1 Form C) | 60 A | 110VDC - Max | 12VDC | 7.8 VDC | 1.2 VDC | 15 ms | 15 ms | Magnetic Blowout, Sealed - Fully | Through Hole | -40°C ~ 125°C | PC Pin |
|
V23074A1002A403RELAY AUTOMOTIVE SPDT 30A 24V |
163 |
|
Datasheet |
Micro Relay A | Bulk | Active | Non Latching | - | SPDT (1 Form C) | 30 A | 24VDC - Nom | 24VDC | 14.4 VDC | 3.6 VDC | - | - | Resistor | Socketable | -40°C ~ 125°C | Plug In, Quick Connect - Multiple Sizes |
|

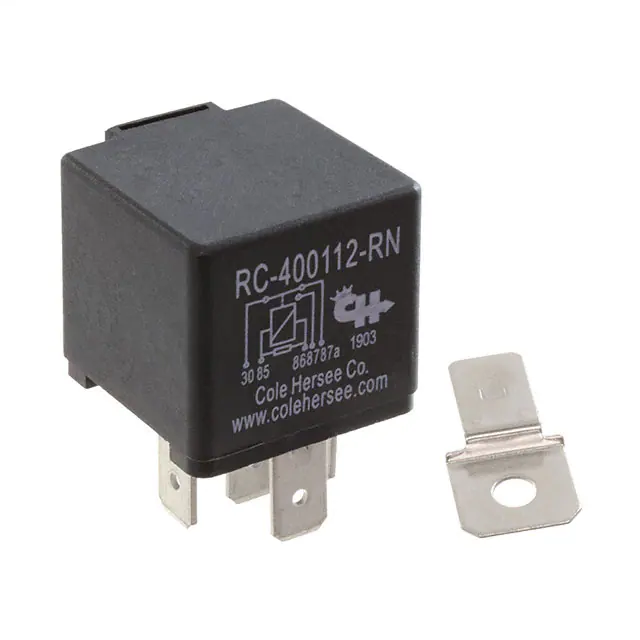

RC-400112-RNRELAY GEN PURPOSE SPDT 40A 12V |
400 |
|
Datasheet |
- | Bulk | Active | Non Latching | - | SPDT (1 Form C) | 40 A | 12VDC - Nom | 12VDC | 7.8 VDC | 1.2 VDC | - | - | Resistor | Chassis Mount | -40°C ~ 85°C | Plug In |
|
RC-400112-DNRELAY GEN PURPOSE SPDT 40A 12V |
236 |
|
Datasheet |
- | Bulk | Active | Non Latching | - | SPDT (1 Form C) | 40 A | 12VDC - Nom | 12VDC | 7.8 VDC | 1.2 VDC | - | - | Diode | Chassis Mount | -40°C ~ 85°C | Plug In |
|
RA-400112-DNRELAY GEN PURPOSE SPST 40A 12V |
247 |
|
Datasheet |
- | Bulk | Active | Non Latching | - | SPST-NO (1 Form A) | 40 A | 12VDC - Nom | 12VDC | 7.8 VDC | 1.2 VDC | - | - | Diode | Chassis Mount | -40°C ~ 85°C | Plug In |
