Automotive Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Coil Type | Coil Current | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Style | Operating Temperature | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CB1A-12VRELAY AUTOMOTIVE SPST 40A 12V |
733 |
|
Datasheet |
CB | Bulk | Active | Non Latching | 117 mA | SPST-NO (1 Form A) | 40 A | 14VDC - Nom | 12VDC | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Sealed - Fully | Socketable | -40°C ~ 85°C | Plug In, Quick Connect - 0.250" (6.3mm) |
|
PC792C-1C-C1-24C-N-XRELAY AUTOMOTIVE SPDT 50A 24V |
353 |
|
Datasheet |
- | Box | Active | Non Latching | 75 mA | SPDT (1 Form C) | - | 75VDC - Max | 24VDC | 15.6 VDC | 2.4 VDC | 7 ms | 2 ms | - | Chassis Mount | -40°C ~ 125°C | Quick Connect - 0.250" (6.3mm) |
|
1-1414761-0RELAY AUTO SPDT 30A 12V |
1,970 |
|
Datasheet |
Micro Relay K | Bulk | Active | Non Latching | 47.2 mA | SPDT (1 Form C) | 30 A | 12VDC - Nom | 12VDC | 6.9 VDC | 1.5 VDC | 3 ms | 1.5 ms | - | Through Hole | -40°C ~ 105°C | PC Pin |
|
A61CS24VDC1.3RRELAY AUTOMOTIVE SPDT 30A 24V |
869 |
|
Datasheet |
A6 | Tray | Active | Non Latching | 55 mA | SPDT (1 Form C) | 30 A | 75VDC - Max | 24VDC | 16.8 VDC | 2.4 VDC | 5 ms | 2 ms | Resistor, Sealed - Fully | Through Hole | -40°C ~ 85°C | PC Pin |
|
A2M1CSQ6VDC1.6RELAY AUTOMOTIVE SPDT 40A 6V |
378 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 266.7 mA | SPDT (1 Form C) | 40 A | 75VDC - Max | 6VDC | 4.2 VDC | 0.6 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | -40°C ~ 125°C | Quick Connect - 0.250" (6.3mm) |
|
|
EP1-3N1SAUTO RELAY SINGLE FORM C 12V |
936 |
|
Datasheet |
EP1 | Tube | Active | Non Latching | 53.3 mA | SPDT (1 Form C) | 25 A | 16VDC - Max | 12VDC | 6.5 VDC | 0.9 VDC | 5 ms | 2 ms | Sealed - Fully | Through Hole | -40°C ~ 85°C | PC Pin |
|
A102CS12VDCRELAY AUTOMOTIVE DPDT 30A 12V |
508 |
|
Datasheet |
A10 | Tube | Active | Non Latching | 47.2 mA | DPDT (2 Form C) | 30 A | 28VDC - Max | 12VDC | 8.4 VDC | 1.2 VDC | 4 ms | 1.5 ms | Sealed - Fully | Through Hole | -40°C ~ 105°C | PC Pin |
|

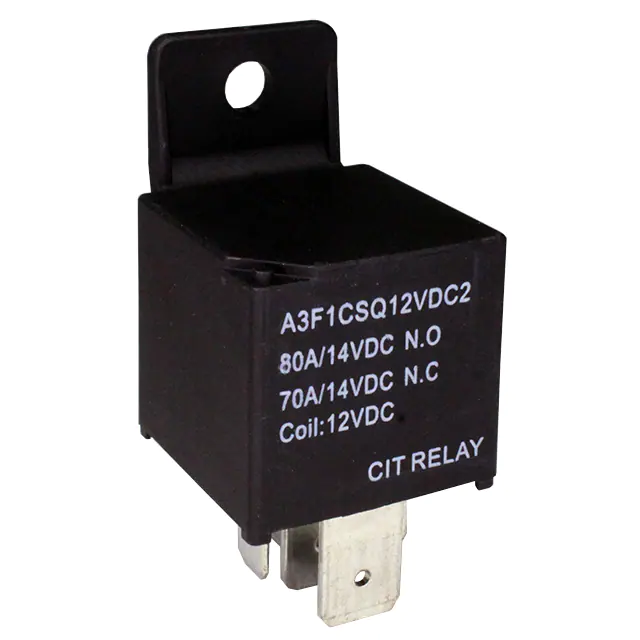

A3F1CSQ12VDC2RELAY AUTOMOTIVE SPDT 80A 12V |
221 |
|
Datasheet |
A3F | Tray | Active | Non Latching | 150 mA | SPDT (1 Form C) | 80 A | 75VDC - Max | 12VDC | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | -40°C ~ 125°C | Quick Connect - Multiple Sizes |
|
A2S1CSQ12VDC1.6RELAY AUTOMOTIVE SPDT 40A 12V |
203 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 133.3 mA | SPDT (1 Form C) | 40 A | 75VDC - Max | 12VDC | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | -40°C ~ 125°C | Quick Connect - 0.250" (6.3mm) |
|
A2S1CSQ12VDC1.6RRELAY AUTOMOTIVE SPDT 40A 12V |
1,048 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 133.3 mA | SPDT (1 Form C) | 40 A | 75VDC - Max | 12VDC | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | -40°C ~ 125°C | Quick Connect - 0.250" (6.3mm) |
|
ACJ2212RELAY AUTOMOTIVE SPDTX2 20A 12V |
435 |
|
Datasheet |
ACJ | Tube | Active | Non Latching | 53.3 mA | SPDT (1 Form C) x 2 | 20 A | 14VDC - Nom | 12VDC | 7.2 VDC | 1 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | -40°C ~ 85°C | PC Pin |
|
PC792A-1C-C3-12S-N-XRELAY AUTOMOTIVE SPDT 40A 12V |
625 |
|
Datasheet |
- | Bag | Active | Non Latching | 133.3 mA | SPDT (1 Form C) | 40 A | 75VDC - Max | 12VDC | 7.8 VDC | 1.8 VDC | 7 ms | 2 ms | Sealed - Fully | Chassis Mount | -40°C ~ 125°C | Quick Connect - 0.250" (6.3mm) |
|
A2S1CSQ24VDC1.6RELAY AUTOMOTIVE SPDT 40A 24V |
146 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 66.7 mA | SPDT (1 Form C) | 40 A | 75VDC - Max | 24VDC | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | -40°C ~ 125°C | Quick Connect - 0.250" (6.3mm) |
|
ACJ2112RELAY AUTOMOTIVE SPDTX2 20A 12V |
479 |
|
Datasheet |
ACJ | Tube | Active | Non Latching | 66.7 mA | SPDT (1 Form C) x 2 | 20 A | 14VDC - Nom | 12VDC | 6.5 VDC | 0.8 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | -40°C ~ 85°C | PC Pin |
|
A31ASQ12VDC2RRELAY AUTOMOTIVE SPST 80A 12V |
709 |
|
Datasheet |
A3 | Tray | Active | Non Latching | 150 mA | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 12VDC | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Socketable | -40°C ~ 125°C | Quick Connect - Multiple Sizes |
|
A3M1ASQ12VDC2RELAY AUTOMOTIVE SPST 80A 12V |
322 |
|
Datasheet |
A3 | Tray | Active | Non Latching | 150 mA | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 12VDC | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | -40°C ~ 125°C | Quick Connect - Multiple Sizes |
|
ACNM1112RELAY AUTOMOTIVE SPDT 30A 12V |
1,548 |
|
Datasheet |
ACNM | Tube | Active | Non Latching | 53.3 mA | SPDT (1 Form C) | 30 A | 14VDC - Nom | 12VDC | 7.2 VDC | 1 VDC | 10 ms | 10 ms | - | Through Hole | -40°C ~ 85°C | PC Pin |
|
A3F1ASQ12VDC2RRELAY AUTOMOTIVE SPST 80A 12V |
975 |
|
Datasheet |
A3F | Tray | Active | Non Latching | 150 mA | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 12VDC | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | -40°C ~ 125°C | Quick Connect - Multiple Sizes |
|

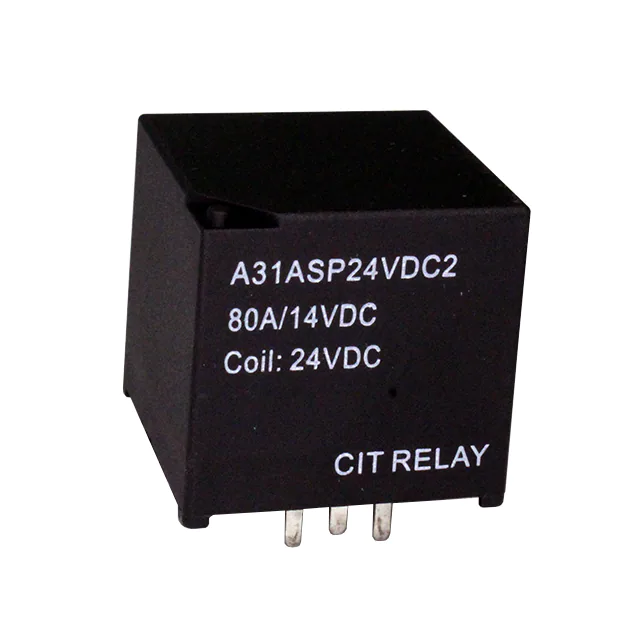

A31ASP24VDC2RELAY AUTOMOTIVE SPST 80A 24V |
657 |
|
Datasheet |
A3 | Tray | Active | Non Latching | 75 mA | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 24VDC | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Fully | Through Hole | -40°C ~ 125°C | PC Pin |
|
ACNM7112SAXRELAY AUTOMOTIVE SPST 30A 12V |
25,582 |
|
Datasheet |
ACNM | Tape & Reel (TR) | Active | Non Latching | 53.3 mA | SPST-NO (1 Form A) | 30 A | 14VDC - Nom | 12VDC | 7.2 VDC | 1 VDC | 10 ms | 10 ms | - | Surface Mount | -40°C ~ 110°C | Gull Wing |
