Programmable Timers and Oscillators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Count | Voltage - Supply | Current - Supply | Operating Temperature | Frequency | Supplier Device Package | Mounting Style | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTC6995MPS6-2#TRMPBFIC OSC SILICON PROG TSOT23-6 |
677 |
|
Datasheet |
TimerBlox® | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | Oscillator, Silicon | - | 2.25V ~ 5.5V | 135 µA | -55°C ~ 125°C | 29.1µHz ~ 977Hz | TSOT-23-6 | Surface Mount | - | - |
|
|
LTC6990MPS6#TRMPBFIC OSC SILICON PROG TSOT23-6 |
610 |
|
Datasheet |
TimerBlox® | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | Oscillator, Silicon | - | 2.25V ~ 5.5V | 235 µA | -55°C ~ 125°C | 488Hz ~ 2MHz | TSOT-23-6 | Surface Mount | - | - |
|

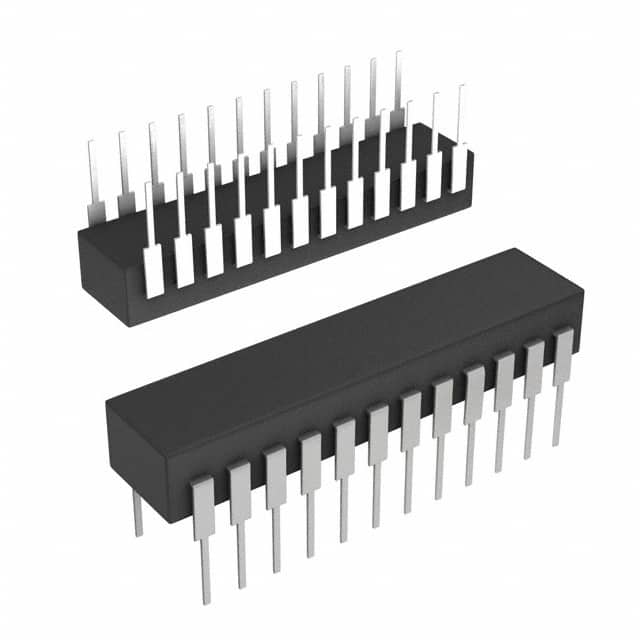

CP82C54-10ZIC OSC PROG TIMER 10MHZ 24DIP |
1,304 |
|
Datasheet |
- | 24-DIP (0.600", 15.24mm) | Tube | Active | Programmable Timer | - | 4.5V ~ 5.5V | 10 mA | 0°C ~ 70°C | 10MHz | 24-PDIP | Through Hole | - | - |
|

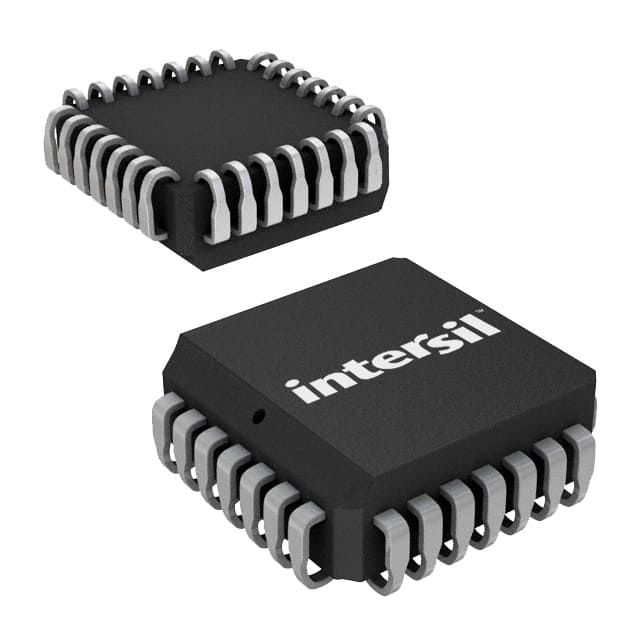

CS82C54ZIC OSC PROG TIMER 8MHZ 28PLCC |
981 |
|
Datasheet |
- | 28-LCC (J-Lead) | Tube | Active | Programmable Timer | - | 4.5V ~ 5.5V | 10 mA | 0°C ~ 70°C | 8MHz | 28-PLCC (11.51x11.51) | Surface Mount | - | - |
|
|
CS82C54-10ZIC OSC PROG TIMER 10MHZ 28PLCC |
2,516 |
|
Datasheet |
- | 28-LCC (J-Lead) | Tube | Active | Programmable Timer | - | 4.5V ~ 5.5V | 10 mA | 0°C ~ 70°C | 10MHz | 28-PLCC (11.51x11.51) | Surface Mount | - | - |
|
|
CS82C54-10Z96IC OSC PROG TIMER 10MHZ 28PLCC |
773 |
|
Datasheet |
- | 28-LCC (J-Lead) | Tape & Reel (TR) | Active | Programmable Timer | - | 4.5V ~ 5.5V | 10 mA | 0°C ~ 70°C | 10MHz | 28-PLCC (11.51x11.51) | Surface Mount | - | - |
|
|
IS82C54-10ZIC OSC PROG TIMER 10MHZ 28PLCC |
731 |
|
Datasheet |
- | 28-LCC (J-Lead) | Tube | Active | Programmable Timer | - | 4.5V ~ 5.5V | 10 mA | -40°C ~ 85°C | 10MHz | 28-PLCC (11.51x11.51) | Surface Mount | - | - |
|
AD2S99BPZIC OSC SINUSOIDAL PROG 20PLCC |
188 |
|
Datasheet |
- | 20-LCC (J-Lead) | Tube | Active | Oscillator, Sinusoidal | - | ±4.75V ~ 5.25V | 8 mA | -40°C ~ 85°C | 2kHz ~ 20kHz | 20-PLCC (9x9) | Surface Mount | - | - |
|
NE555PWRIC OSC SGL TIMER 100KHZ 8TSSOP |
9,911 |
|
Datasheet |
- | 8-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | 555 Type, Timer/Oscillator (Single) | - | 4.5V ~ 16V | 10 mA | 0°C ~ 70°C | 100kHz | 8-TSSOP | Surface Mount | - | - |
|
NE555PSRIC OSC SINGLE TIMER 100KHZ 8SO |
4,307 |
|
Datasheet |
- | 8-SOIC (0.209", 5.30mm Width) | Tape & Reel (TR) | Active | 555 Type, Timer/Oscillator (Single) | - | 4.5V ~ 16V | 10 mA | 0°C ~ 70°C | 100kHz | 8-SO | Surface Mount | - | - |
|
SA555PIC OSC SINGLE TIMER 100KHZ 8-DIP |
6,003 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Bulk | Active | 555 Type, Timer/Oscillator (Single) | - | 4.5V ~ 16V | 10 mA | -40°C ~ 85°C | 100kHz | 8-PDIP | Through Hole | - | - |
|
|
SE555PIC OSC SINGLE TIMER 100KHZ 8-DIP |
5,171 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 555 Type, Timer/Oscillator (Single) | - | 4.5V ~ 18V | 10 mA | -55°C ~ 125°C | 100kHz | 8-PDIP | Through Hole | - | - |
|
NE556DRIC OSC TIMER DUAL 100KHZ 14SOIC |
11,760 |
|
Datasheet |
- | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 555 Type, Timer/Oscillator (Dual) | - | 4.5V ~ 16V | 20 mA | 0°C ~ 70°C | 100kHz | 14-SOIC | Surface Mount | - | - |
|
|
NA555PIC OSC SINGLE TIMER 100KHZ 8-DIP |
5,710 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 555 Type, Timer/Oscillator (Single) | - | 4.5V ~ 16V | 10 mA | -40°C ~ 105°C | 100kHz | 8-PDIP | Through Hole | - | - |
|
CD4541BPWRIC OSC PROG TIMER 100KHZ 14TSSOP |
2,838 |
|
Datasheet |
- | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Programmable Timer | 65536 | 3V ~ 20V | - | -55°C ~ 125°C | 100kHz | 14-TSSOP | Surface Mount | - | - |
|
NE556NIC OSC TIMER DUAL 100KHZ 14-DIP |
3,174 |
|
Datasheet |
- | 14-DIP (0.300", 7.62mm) | Tube | Active | 555 Type, Timer/Oscillator (Dual) | - | 4.5V ~ 16V | 20 mA | 0°C ~ 70°C | 100kHz | 14-PDIP | Through Hole | - | - |
|
|
NA556DRIC OSC TIMER DUAL 14-SOIC |
12,068 |
|
Datasheet |
- | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 555 Type, Timer/Oscillator (Dual) | - | 4.5V ~ 16V | 20 mA | -40°C ~ 105°C | - | 14-SOIC | Surface Mount | - | - |
|
NE555S-13IC OSC SINGLE TIMER 500KHZ 8SO |
21,027 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 555 Type, Timer/Oscillator (Single) | - | 4.5V ~ 16V | 13 mA | 0°C ~ 70°C | 500kHz | 8-SO | Surface Mount | - | - |
|
|
NA556NIC OSC TIMER DUAL 14-DIP |
1,490 |
|
Datasheet |
- | 14-DIP (0.300", 7.62mm) | Tube | Active | 555 Type, Timer/Oscillator (Dual) | - | 4.5V ~ 16V | 20 mA | -40°C ~ 105°C | - | 14-PDIP | Through Hole | - | - |
|
|
TLC555CPSRIC OSC SINGLE TIMER 2.1MHZ 8SO |
4,165 |
|
Datasheet |
LinCMOS™ | 8-SOIC (0.209", 5.30mm Width) | Tape & Reel (TR) | Active | 555 Type, Timer/Oscillator (Single) | - | 2V ~ 15V | 360 µA | 0°C ~ 70°C | 2.1MHz | 8-SO | Surface Mount | - | - |
