| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Programmable | Number of Bits | Settling Time | Output Type | Differential Output | Number of D/A Converters | Data Interface | Reference Type | Voltage - Supply, Analog | Voltage - Supply, Digital | INL/DNL (LSB) | Mounting Style | Architecture | Supplier Device Package | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AD7805CRZ-REELIC DAC 10BIT V-OUT 28SOIC |
2,714 |
|
Datasheet |
- | 28-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | 10 | 4µs | Voltage - Buffered | No | 4 | Parallel | External, Internal | 3V ~ 5.5V | 3V ~ 5.5V | ±3 (Max), ±0.125 | Surface Mount | - | 28-SOIC | -40°C ~ 85°C | - | - |
|
AD5555CRUIC DAC 14BIT A-OUT 16TSSOP |
4,533 |
|
Datasheet |
- | 16-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | Not Verified | 14 | 500ns (Typ) | Current - Unbuffered | No | 2 | SPI | External | 5V | 5V | ±1 (Max), ±1 (Max) | Surface Mount | R-2R | 16-TSSOP | -40°C ~ 85°C | - | - |
|
AD7845JRIC DAC 12BIT V-OUT 24SOIC |
1,523 |
|
Datasheet |
- | 24-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Not Verified | 12 | 5µs | Voltage - Buffered | No | 1 | Parallel | External | ±14.25V ~ 15.75V | - | ±1 (Max), ±1 (Max) | Surface Mount | R-2R | 24-SOIC | 0°C ~ 70°C | - | - |
|
MAX520BCPEIC DAC 8BIT V-OUT 16DIP |
1,018 |
|
Datasheet |
- | 16-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | 8 | 2µs (Typ) | Voltage - Unbuffered | No | 4 | I2C | External | 5V | 5V | ±1 (Max), ±1 (Max) | Through Hole | R-2R | 16-PDIP | 0°C ~ 70°C | - | - |
|
TMC3533R2C80IC DAC 10BIT A-OUT 44PLCC |
2,015 |
|
Datasheet |
- | 44-LCC (J-Lead) | Bulk | Active | Not Verified | 10 | 15ns (Typ) | Current - Unbuffered | No | 3 | - | External | 4.75V ~ 5.25V | 4.75V ~ 5.25V | - | Surface Mount | - | 44-PLCC (16.59x16.59) | 0°C ~ 70°C | - | - |
|
DAC5652AIPFBG4IC DAC 10BIT PAR 48-TQFP |
1,555 |
|
Datasheet |
- | 48-TQFP | Tray | Active | Not Verified | - | - | - | - | - | - | - | - | - | - | Surface Mount | - | 48-TQFP (7x7) | - | - | - |
|
DAC8841FWIC DAC 8BIT V-OUT 24CDIP |
4,459 |
|
Datasheet |
- | 24-CDIP (0.300", 7.62mm) | Bulk | Active | Not Verified | 8 | 6µs | Voltage - Buffered | No | 8 | SPI | External | 5V | 5V | ±0.5, ±1 (Max) | Through Hole | Multiplying DAC | 24-CDIP | -40°C ~ 85°C | - | - |
|
MAX5352ACPA+IC DAC 12BIT V-OUT 8DIP |
3,520 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Bulk | Obsolete | Not Verified | 12 | 14µs (Typ) | Voltage - Buffered | No | 1 | SPI | External | 5V | 5V | ±0.5 (Max), ±1 (Max) | Through Hole | R-2R | 8-PDIP | 0°C ~ 70°C | - | - |
|
DAC100DDQ7IC DAC 10BIT A-OUT 16CERDIP |
2,534 |
|
Datasheet |
- | 16-CDIP (0.300", 7.62mm) | Bulk | Active | Not Verified | 10 | 375ns | Current - Unbuffered | No | 1 | - | External, Internal | ±6V ~ 18V | ±6V ~ 18V | ±0.5 (Max) | Through Hole | - | 16-CERDIP | -55°C ~ 125°C | - | - |
|
DAC8408BIETIC DAC 8BIT A-OUT 28CDIP |
3,059 |
|
Datasheet |
- | 28-CDIP | Bulk | Active | Not Verified | 8 | 250ns | Current - Unbuffered | No | 4 | Parallel | External | 4.5V ~ 5.5V | 4.5V ~ 5.5V | ±0.5 (Max), ±1 (Max) | Through Hole | Multiplying DAC, R-2R | 28-CDIP | -55°C ~ 125°C | - | - |
|
DAC714HB-1DAC, 1 FUNC, SERIAL INPUT LOADIN |
4,373 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
LTC2637IDE-LMX10#PBFIC DAC 10BIT V-OUT 14DFN |
4,346 |
|
Datasheet |
- | 14-WFDFN Exposed Pad | Tube | Active | Not Verified | 10 | 4.1µs (Typ) | Voltage - Buffered | No | 8 | I2C | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.2, ±0.5 (Max) | Surface Mount | - | 14-DFN (4x3) | -40°C ~ 85°C | - | - |
|
MAX5200AEUBIC DAC 16BIT V-OUT 10UMAX |
100 |
|
Datasheet |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Bulk | Active | Not Verified | 16 | 25µs (Typ) | Voltage - Buffered | No | 1 | 3-Wire Serial, 4-Wire Serial, MICROWIRE, QSPI, SPI | Internal | 4.75V ~ 5.25V | 4.75V ~ 5.25V | ±10, ±1 (Max) | Surface Mount | - | 10-uMAX | -40°C ~ 105°C | - | - |
|
HI3197JCQIC DAC 10BIT V OR A-OUT 48LQFP |
2,788 |
|
Datasheet |
- | 48-LQFP | Bulk | Active | Not Verified | 10 | 3.5ns | Voltage or Current - Unbuffered | Yes | 1 | - | External | 4.75V ~ 5.25V | 4.75V ~ 5.25V | ±1.2, 0.5 | Surface Mount | - | 48-LQFP (7x7) | -20°C ~ 75°C | - | - |
|
AD558JNIC DAC 8BIT V-OUT 16DIP |
1,549 |
|
Datasheet |
DACPORT® | 16-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | 8 | 3µs | Voltage - Buffered | No | 1 | Parallel | Internal | 4.5V ~ 16.5V | 4.5V ~ 16.5V | ±0.5 (Max), - | Through Hole | R-2R | 16-PDIP | 0°C ~ 70°C | - | - |
|
AD9768JQIC DAC 8BIT A-OUT 18CERDIP |
2,644 |
|
Datasheet |
AD9768 | 18-CDIP (0.300", 7.62mm) | Bulk | Active | Not Verified | 8 | 5ns | Current - Buffered | No | 1 | - | External | - | - | - | Through Hole | Multiplying DAC | 18-CERDIP | 0°C ~ 70°C | - | - |
|
AD7112CNIC DAC DUAL LOGARITHMIC 20-DIP |
3,460 |
|
Datasheet |
LOGDAC® | 20-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | - | - | - | - | - | - | - | - | - | - | Through Hole | - | 20-PDIP | - | - | - |
|
ISL5761/2IBIC DAC 10BIT A-OUT 28SOIC |
1,972 |
|
Datasheet |
- | 28-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Not Verified | 10 | - | Current - Unbuffered | Yes | 1 | Parallel | External, Internal | 2.7V ~ 3.6V | 2.7V ~ 3.6V | ±0.1, ±0.1 | Surface Mount | Current Source | 28-SOIC | -40°C ~ 85°C | - | - |
|
AD7849ARIC DAC 14BIT V-OUT 20SOIC |
4,183 |
|
Datasheet |
- | 20-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Not Verified | 14 | 10µs (Typ) | Voltage - Buffered | No | 1 | SPI | External | ±14.25V ~ 15.75V | 5V | ±5 (Max), ±0.25 (Max) | Surface Mount | String DAC | 20-SOIC | -40°C ~ 85°C | - | - |
|

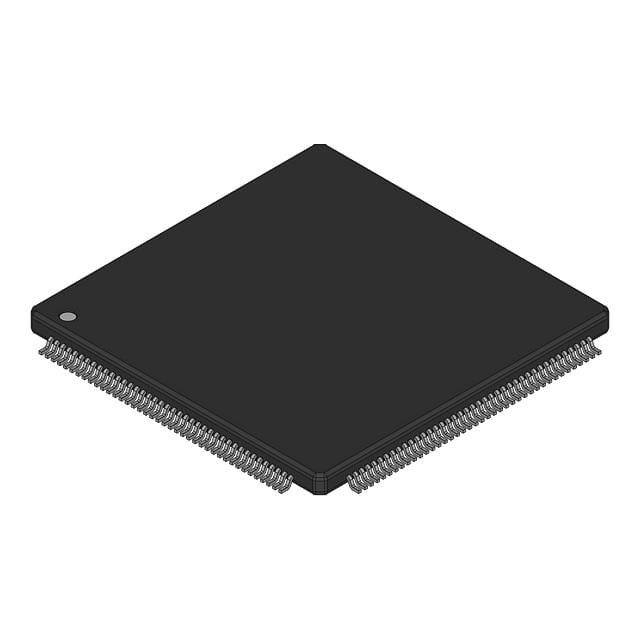

TVP3026-250MDNPALETTE DAC, 1280 X 1024 PIXELS |
4,427 |
|
Datasheet |
* | - | Bulk | Active | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
