| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Technology | Type | Number of Channels | Inputs - Side 1/Side 2 | Channel Type | Isolated Power | Voltage - Isolation | Common Mode Transient Immunity (Min) | Data Rate | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Qualification | Rise / Fall Time (Typ) | Grade | Voltage - Supply | Operating Temperature | Mounting Style | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI8622BB-B-IM12.5KV DUAL CHANNEL ISOLATOR IN C |
1,605 |
|
Datasheet |
- | 8-VDFN | Tray | Obsolete | Capacitive Coupling | General Purpose | 2 | 1/1 | Unidirectional | No | 2500Vrms | 35kV/µs | 150Mbps | 13ns, 13ns | 4.5ns | - | 2.5ns, 2.5ns | - | 2.5V ~ 5.5V | -40°C ~ 125°C | Surface Mount | 8-DFN (5x4) |
|
|
SI8610EB-B-IM12.5KV SINGLE CHANNEL ISOLATOR IN |
4,878 |
|
Datasheet |
- | 8-VDFN | Tray | Obsolete | Capacitive Coupling | General Purpose | 1 | 1/0 | Unidirectional | No | 2500Vrms | 35kV/µs | 1Mbps | 35ns, 35ns | 25ns | - | 2.5ns, 2.5ns | - | 2.5V ~ 5.5V | -40°C ~ 125°C | Surface Mount | 8-DFN (5x4) |
|
|
SI8622EB-B-IM12.5KV DUAL CHANNEL ISOLATOR IN C |
2,578 |
|
Datasheet |
- | 8-VDFN | Tray | Obsolete | Capacitive Coupling | General Purpose | 2 | 1/1 | Unidirectional | No | 2500Vrms | 35kV/µs | 150Mbps | 13ns, 13ns | 4.5ns | - | 2.5ns, 2.5ns | - | 2.5V ~ 5.5V | -40°C ~ 125°C | Surface Mount | 8-DFN (5x4) |
|
|
SI8621BB-B-IM12.5KV DUAL CHANNEL ISOLATOR IN C |
1,256 |
|
Datasheet |
- | 8-VDFN | Tray | Obsolete | Capacitive Coupling | General Purpose | 2 | 1/1 | Unidirectional | No | 2500Vrms | 35kV/µs | 1Mbps | 35ns, 35ns | 25ns | - | 2.5ns, 2.5ns | - | 2.5V ~ 5.5V | -40°C ~ 125°C | Surface Mount | 8-DFN (5x4) |
|
VT-USB-ISO-480USB HIGH SPEED ISOLATOR >800MA |
1,544 |
|
Datasheet |
ISO | - | Retail Package | Active | - | USB | 1 | - | Bidirectional | Yes | 2500VDC | - | 480Mbps | - | - | - | - | - | 5V | 40°C ~ 50°C | - | - |
|

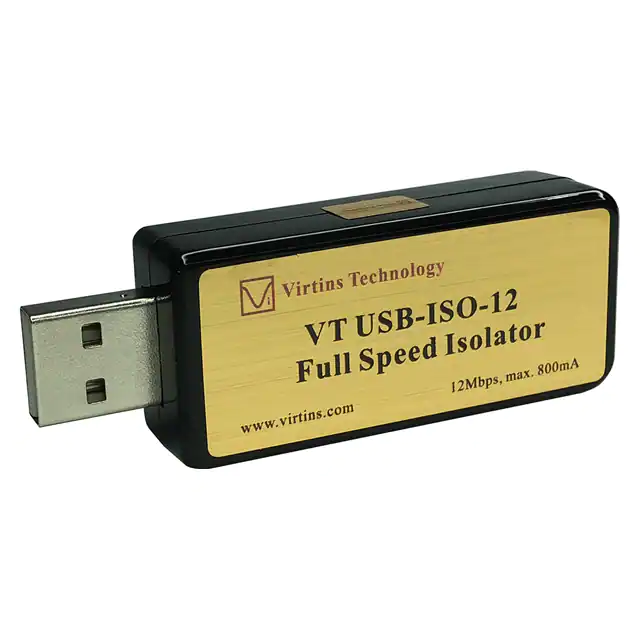

VT-USB-ISO-12USB FULL SPEED ISOLATOR >800MA |
2,956 |
|
Datasheet |
ISO | - | Retail Package | Active | - | USB | 1 | - | Bidirectional | Yes | 2500VDC | - | 12Mbps | - | - | - | - | - | 5V | 40°C ~ 50°C | - | - |
|
MAX14930FASE+CZ0DGTL ISO 2750VRMS 4CH GP 16SOIC |
1,146 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Capacitive Coupling | I2C, R232, RS422, RS485, SPI | 4 | 4/0 | Unidirectional | No | 2750Vrms | 25kV/µs (Typ) | 150Mbps | 7.5ns, 7.4ns | 1ns | - | 2ns, 2ns | - | 1.71V ~ 5.5V | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
MAX14930FASE+TCZ0DGTL ISO 2750VRMS 4CH GP 16SOIC |
3,862 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Capacitive Coupling | I2C, R232, RS422, RS485, SPI | 4 | 4/0 | Unidirectional | No | 2750Vrms | 25kV/µs (Typ) | 150Mbps | 7.5ns, 7.4ns | 1ns | - | 2ns, 2ns | - | 1.71V ~ 5.5V | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
MAX14931FASE+CZ1DGTL ISO 2750VRMS 4CH GP 16SOIC |
2,872 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Capacitive Coupling | I2C, R232, RS422, RS485, SPI | 4 | 3/1 | Unidirectional | No | 2750Vrms | 25kV/µs (Typ) | 150Mbps | 7.5ns, 7.4ns | 1ns | - | 2ns, 2ns | - | 1.71V ~ 5.5V | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
MAX14931FASE+TCZ1DGTL ISO 2750VRMS 4CH GP 16SOIC |
1,775 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Capacitive Coupling | I2C, R232, RS422, RS485, SPI | 4 | 3/1 | Unidirectional | No | 2750Vrms | 25kV/µs (Typ) | 150Mbps | 7.5ns, 7.4ns | 1ns | - | 2ns, 2ns | - | 1.71V ~ 5.5V | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
ISOS141FDBQSEPIC ISOLATION |
3,260 |
|
Datasheet |
- | 16-SSOP (0.154", 3.90mm Width) | Tube | Active | Capacitive Coupling | CAN, RS422, RS485, SPI | 4 | 3/1 | Unidirectional | No | 3000Vrms | 100kV/µs | 100Mbps | 16ns, 16ns | 4.9ns | - | 2.4ns, 2.4ns | - | 2.25V ~ 5.5V | -55°C ~ 125°C | Surface Mount | 16-SSOP |
|
ISO7721FSDPROTOTYPE |
1,976 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Bulk | Active | Capacitive Coupling | CAN, RS232, RS485 | 2 | 1/1 | Unidirectional | Yes | 3000Vrms | 85kV/µs | 100Mbps | 16ns, 16ns | 4.9ns | - | 1.8ns, 1.9ns | - | 2.25V ~ 5.5V | -55°C ~ 125°C | Surface Mount | 8-SOIC |
|
|
ISO7721FSDRPROTOTYPE |
3,098 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Bulk | Active | Capacitive Coupling | CAN, RS232, RS485 | 2 | 1/1 | Unidirectional | Yes | 3000Vrms | 85kV/µs | 100Mbps | 16ns, 16ns | 4.9ns | - | 1.8ns, 1.9ns | - | 2.25V ~ 5.5V | -55°C ~ 125°C | Surface Mount | 8-SOIC |
|
|
ISO1212SDBQRPROTOTYPE |
4,565 |
|
Datasheet |
ISO121x | 16-SSOP (0.154", 3.90mm Width) | Bulk | Active | Capacitive Coupling | General Purpose | 2 | 2/0 | Unidirectional | Yes | 2500Vrms | 25kV/µs | 4Mbps | 140ns, 15ns | - | - | 3ns, 3ns | - | 2.25V ~ 5.5V | -40°C ~ 125°C | Surface Mount | 16-SSOP |
|
|
ISO7741FSDBQPROTOTYPE |
4,532 |
|
Datasheet |
ISO774x | 16-SSOP (0.154", 3.90mm Width) | Bulk | Last Time Buy | Capacitive Coupling | CAN, RS232, RS485, SPI | 4 | 3/1 | Unidirectional | Yes | 3000Vrms | 85kV/µs | 100Mbps | 16ns, 16ns | 4.9ns | - | 2.4ns, 2.4ns | - | 2.25V ~ 5.5V | -55°C ~ 125°C | Surface Mount | 16-SSOP |
|
|
ISO7421QDRQ1PROTOTYPE |
3,963 |
|
Datasheet |
ISO742x | 8-SOIC (0.154", 3.90mm Width) | Bulk | Active | Capacitive Coupling | General Purpose | 2 | 1/1 | Unidirectional | Yes | 2500Vrms | 25kV/µs | 1Mbps | 14ns, 14ns | 3.7ns | - | 1ns, 1ns | - | 3.15V ~ 3.45V, 4.75V ~ 5.25V | -40°C ~ 125°C | Surface Mount | 8-SOIC |
|
|
NCIV9211R2HIGH SPEED DUAL-CHANNEL, BI-DIRE |
1,221 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Bulk | Discontinued | Capacitive Coupling | General Purpose | 2 | 1/1 | Unidirectional | No | 5000Vrms | 100kV/µs | 50Mbps | 25ns, 25ns | 10ns | AEC-Q100 | 1.1ns, 1.1ns | Automotive | 2.5V ~ 5.5V | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
NCIV9210R2HIGH SPEED DUAL-CHANNEL, BI-DIRE |
1,215 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Bulk | Discontinued | Capacitive Coupling | I2C, SPI | 2 | 1/1 | Unidirectional | No | 5000Vrms | 100kV/µs | 50Mbps | 25ns | 10ns | AEC-Q100 | 2.2ns, 3ns | Automotive | 2.5V ~ 5.5V | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
NCIV9211HIGH SPEED DUAL-CHANNEL, BI-DIRE |
1,414 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Bulk | Discontinued | Capacitive Coupling | General Purpose | 2 | 1/1 | Unidirectional | No | 5000Vrms | 100kV/µs | 50Mbps | 25ns, 25ns | 10ns | AEC-Q100 | 1.1ns, 1.1ns | Automotive | 2.5V ~ 5.5V | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
NCID9200R2HIGH SPEEDDUAL-CHANNEL, CERAMIC |
2,425 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Bulk | Discontinued | Capacitive Coupling | I2C, SPI | 2 | 2/0 | Unidirectional | Yes | 5000Vrms | 100kV/µs | 20Mbps | 140ns, 140ns | 60ns | - | 2.7ns, 2.3ns | - | 2.5V ~ 5.5V | -40°C ~ 125°C | Surface Mount | 16-SOIC |
