| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ND3KC16H-RSW ROTARY DIP HEX COMP 0.1A 5V |
192 |
|
Datasheet |
ND3 | Tape & Reel (TR) | Obsolete | Hexadecimal Complement | 16 | 5VDC | Rotary with Shaft | Raised | 100mA | Beryllium Copper | Gold | 0.316" (8.03mm) | Surface Mount, Right Angle | Gull Wing | -25°C ~ 85°C | 0.050" (1.27mm), Half | Epoxy Sealed Terminals | Yes |
|
1825428-4SWITCH SLIDE DIP SPST 0.1A 24V |
1,129 |
|
Datasheet |
ARF | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.189" (4.80mm) | Through Hole | PC Pin | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
1-1825008-2SWITCH ROTARY DIP HEX |
2,612 |
|
Datasheet |
DR | Bulk | Obsolete | Hexadecimal | 16 | - | Rotary with Shaft | Raised | - | - | - | - | Through Hole | - | - | - | - | No |
|
|
FR01AR16PB-WSWITCH ROTARY DIP HEX 0.1A 5V |
4,676 |
|
Datasheet |
FR01 | Bulk | Active | Hexadecimal | 16 | 5VDC | Rotary with Shaft | Raised | 100mA | Copper Alloy | Gold | 1.104" (28.05mm) | Panel Mount | PC Pin | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|

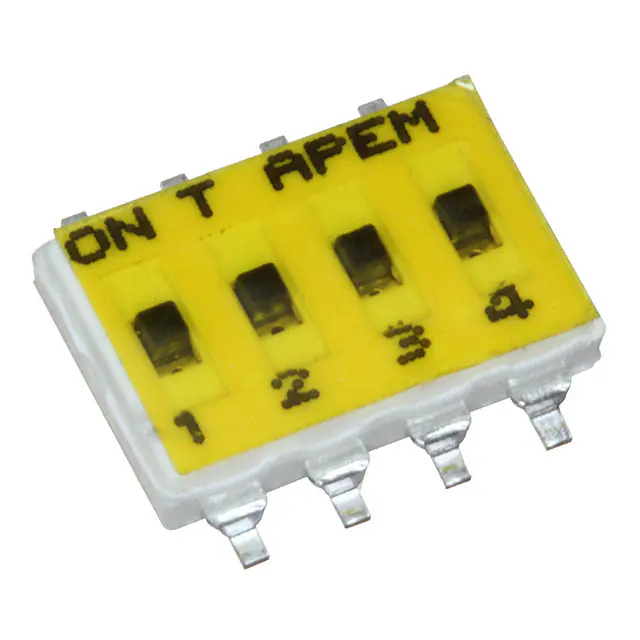

IKN0403000SWITCH SLIDE DIP SPST 0.1A 24V |
11,543 |
|
Datasheet |
IKN | Tube | Obsolete | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.112" (2.85mm) | Surface Mount | Gull Wing | -40°C ~ 100°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
|
ADE0204Slide Dip Switch, 2 Switches, SP |
4,080 |
|
Datasheet |
DIP | Tube | Active | SPST | 2 | 24VDC | Slide (Standard) | Raised | 100mA | Copper Alloy | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
ADE0404Slide Dip Switch, 4 Switches, SP |
5,020 |
|
Datasheet |
DIP | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Raised | 100mA | Copper Alloy | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
A6T 1101HDIP SWITCH |
6,004 |
|
Datasheet |
A6T | Bulk | Active | SPST | 1 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | - | 0.142" (3.60mm) | Through Hole | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|
|
ADE06A04Slide Dip Switch, 6 Switches, SP |
3,090 |
|
Datasheet |
DIP | Bulk | Active | SPST | 6 | 24VDC | Slide (Standard) | Raised | 100mA | Copper Alloy | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
BD01SWITCH DIP OFF ON SPST 1 EXTENDE |
1,165 |
|
Datasheet |
BD | Bulk | Active | SPST | 1 | 5VDC | Slide (Standard) | Raised | 100mA | Phosphor Bronze | Gold | 0.297" (7.54mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
ADF02S04Slide Dip Switch, 2 Switches, SP |
6,960 |
|
Datasheet |
DIP | Bulk | Active | SPST | 2 | 5VDC | Slide (Standard) | Raised | 100mA | Copper Alloy | Gold | 0.177" (4.50mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
ADF04ST04Slide Dip Switch, 4 Switches, SP |
4,588 |
|
Datasheet |
DIP | Tube | Active | SPST | 4 | 5VDC | Slide (Standard) | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.177" (4.50mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
BPA02BDIP / ROTARY DIP |
1,683 |
|
Datasheet |
BPA | Bulk | Active | SPST | 2 | 5VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.287" (7.30mm) | Through Hole, Right Angle | PC Pin | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
A6T 3131MSlide Dip Switch, 3 Switches, 3P |
568 |
|
Datasheet |
A6T | Bulk | Active | SPST | 3 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | Gold | 0.142" (3.60mm) | Through Hole | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|
|
A6S 0009HDIP SWITCH |
10,196 |
|
Datasheet |
A6S-H | - | Active | SPST | 2 | 24VDC | Slide (Standard) | Raised | 25mA | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|
|
ADP04S04Piano Dip Switch, 4 Switches, SP |
4,865 |
|
Datasheet |
DIP | Bulk | Active | SPST | 4 | 24VDC | Piano | Raised | 100mA | Copper Alloy | Gold | 0.273" (6.93mm) | Surface Mount, Right Angle | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
A6EN0015FDIP SWITCH |
386 |
|
Datasheet |
A6E | - | Active | - | - | 24VDC | Slide (Standard) | - | 25mA | - | - | - | Through Hole | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|
|
A6S 0023CDIP SWITCH |
354 |
|
Datasheet |
A6S-H | Bulk | Active | SPST | 7 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | Yes |
|
|
A6S 0013FSWITCH SLIDE DIP 0.025A 24V |
296 |
|
Datasheet |
A6S-H | Bulk | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | Yes |
|
|
ADE0704Slide Dip Switch, 7 Switches, SP |
440 |
|
Datasheet |
DIP | Tube | Active | SPST | 7 | 24VDC | Slide (Standard) | Raised | 100mA | Copper Alloy | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
