| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
429427320916SWITCH ROTARY DIP HEX 0.15A 24V |
3,515 |
|
Datasheet |
WS-ROTU | Tube | Active | Hexadecimal | 16 | 24VDC | Rotary for Tool | Flush, Recessed | 150mA | - | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
429427320911SW ROTARY DIP BCD COMP 0.15A 24V |
4,056 |
|
Datasheet |
WS-ROTU | Tube | Active | BCD Complement | 10 | 24VDC | Rotary for Tool | Flush, Recessed | 150mA | - | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
428427520917SW ROTARY DIP HEX COMP 0.15A 24V |
3,354 |
|
Datasheet |
WS-ROTU | Tube | Active | Hexadecimal Complement | 16 | 24VDC | Rotary for Tool | Flush, Recessed | 150mA | - | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
76RSB05STSWITCH ROCKER DIP SPST 0.15A 30V |
2,203 |
|
Datasheet |
76 | Tube | Active | SPST | 5 | 30VDC | Rocker | Flush, Recessed | 150mA | Copper Alloy | Gold | 0.292" (7.41mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
78B09TSWITCH SLIDE DIP SPST 0.15A 30V |
1,715 |
|
Datasheet |
78 | Tube | Active | SPST | 9 | 30VDC | Slide (Standard) | Raised | 150mA | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

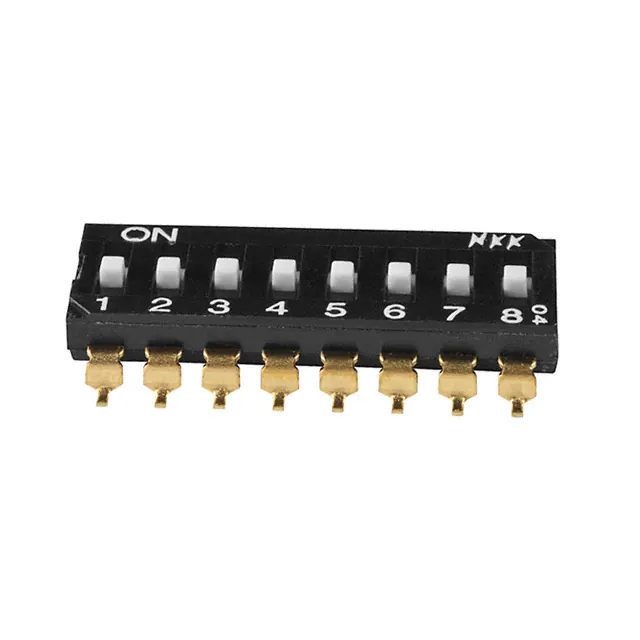

JS0208AP4SWITCH SLIDE DIP SPST 0.025A 24V |
2,360 |
|
Datasheet |
JS | Bulk | Active | SPST | 8 | 24VDC | Slide (Standard) | Raised | 25mA | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|
429427520916SWITCH ROTARY DIP HEX 0.15A 24V |
2,118 |
|
Datasheet |
WS-ROTU | Tube | Active | Hexadecimal | 16 | 24VDC | Rotary for Tool | Flush, Recessed | 150mA | - | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
428527520911SW ROTARY DIP BCD COMP 0.15A 24V |
4,272 |
|
Datasheet |
WS-ROTV | Tube | Active | BCD Complement | 10 | 24VDC | Rotary for Tool | Flush, Recessed | 150mA | - | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | IP67 - Dust Tight, Waterproof | Yes |
|
|
428527520910SWITCH ROTARY DIP BCD 0.15A 24V |
4,208 |
|
Datasheet |
WS-ROTV | Tube | Active | BCD | 10 | 24VDC | Rotary for Tool | Flush, Recessed | 150mA | - | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | IP67 - Dust Tight, Waterproof | Yes |
|

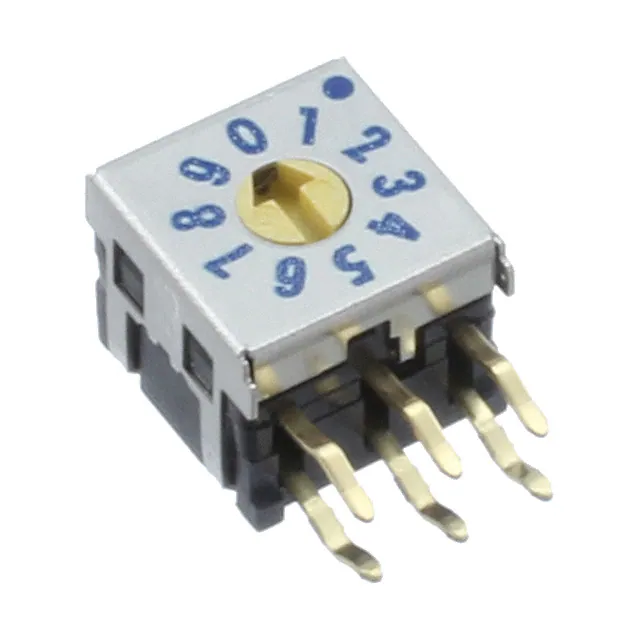

DRR7010CSWITCH ROTARY DIP BCD 0.03A 15V |
2,066 |
|
Datasheet |
DR | Tube | Active | BCD | 10 | 15VDC | Rotary for Tool | Flush, Recessed | 30mA | - | Gold | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | -25°C ~ 85°C | 0.100" (2.54mm), Full | Process Sealed | Yes |
|
A6SN-0101SWITCH SLIDE DIP SPST 0.025A 24V |
2,541 |
|
Datasheet |
A6SN | Tube | Active | SPST | 10 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | - | 0.175" (4.45mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
78RB10STSWITCH SLIDE DIP SPST 0.15A 30V |
3,763 |
|
Datasheet |
78 | Tube | Active | SPST | 10 | 30VDC | Slide (Standard) | Flush, Recessed | 150mA | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
A6RS-161RFSWITCH ROTARY DIP HEX 0.025A 24V |
3,821 |
|
Datasheet |
A6RS | Tube | Active | Hexadecimal | 16 | 24VDC | Rotary for Tool | Flush, Recessed | 25mA | - | - | 0.185" (4.70mm) | Surface Mount | Gull Wing | -25°C ~ 80°C | 0.100" (2.54mm), Full | - | No |
|
76PSB05STSWITCH PIANO DIP SPST 0.15A 30V |
1,385 |
|
Datasheet |
76 | Tube | Active | SPST | 5 | 30VDC | Piano | Raised | 150mA | Copper Alloy | Gold | 0.301" (7.65mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
A6RS-101RS-PSWITCH ROTARY DIP BCD 0.025A 24V |
4,130 |
|
Datasheet |
A6RS | Tape & Reel (TR) | Active | BCD | 10 | 24VDC | Rotary with Shaft | Raised | 25mA | - | - | 0.472" (12.00mm) | Surface Mount | Gull Wing | -25°C ~ 80°C | 0.100" (2.54mm), Full | - | No |
|
FR01KR10P-SSWITCH ROTARY DIP BCD 0.1A 5V |
1,851 |
|
Datasheet |
FR01 | Tube | Active | BCD | 10 | 5VDC | Rotary with Shaft | Raised | 100mA | Copper Alloy | Gold | 0.426" (10.82mm) | Through Hole | PC Pin | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
A6S-0104-HSWITCH SLIDE DIP SPST 0.025A 24V |
4,190 |
|
Datasheet |
A6S-H | Tube | Active | SPST | 10 | 24VDC | Slide (Standard) | Raised | 25mA | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|
|
A6S-0102-HSWITCH SLIDE DIP SPST 0.025A 24V |
3,547 |
|
Datasheet |
A6S-H | Tube | Active | SPST | 10 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
A6HF-8102SWITCH SLIDE DIP SPST 0.025A 24V |
2,015 |
|
Datasheet |
A6HF | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|
FR02FR10PSWITCH ROTARY DIP BCD 0.1A 5V |
1,513 |
|
Datasheet |
FR02 | Bulk | Active | BCD | 10 | 5VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.154" (3.90mm) | Surface Mount | Gull Wing | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
