| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FR02FR16PSWITCH ROTARY DIP HEX 0.1A 5V |
3,223 |
|
Datasheet |
FR02 | Bulk | Active | Hexadecimal | 16 | 5VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.154" (3.90mm) | Surface Mount | Gull Wing | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
A6RS-162RSSWITCH ROTARY DIP HEX 0.025A 24V |
4,338 |
|
Datasheet |
A6RS | Tube | Active | Hexadecimal | 16 | 24VDC | Rotary with Shaft | Raised | 25mA | - | - | 0.472" (12.00mm) | Surface Mount | Gull Wing | -25°C ~ 80°C | 0.100" (2.54mm), Full | - | No |
|
FR01FC16H-SSW ROTARY DIP HEX COMP 0.1A 5V |
3,688 |
|
Datasheet |
FR01 | Tube | Active | Hexadecimal Complement | 16 | 5VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
FR01FC10H-SSW ROTARY DIP BCD COMP 0.1A 5V |
4,810 |
|
Datasheet |
FR01 | Tube | Active | BCD Complement | 10 | 5VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
FR01KR10H-SSWITCH ROTARY DIP BCD 0.1A 5V |
3,257 |
|
Datasheet |
FR01 | Tube | Active | BCD | 10 | 5VDC | Rotary with Shaft | Raised | 100mA | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
FR01KR16H-06XL-SSWITCH ROTARY DIP HEX 0.1A 5V |
100 |
|
Datasheet |
FR01 | Tube | Active | Hexadecimal | 16 | 5VDC | Rotary with Shaft | Raised | 100mA | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
78B08RATSWITCH SLIDE DIP SPST 0.15A 30V |
4,799 |
|
Datasheet |
78 | Tube | Active | SPST | 8 | 30VDC | Slide (Standard) | Raised | 150mA | Copper Alloy | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
76PSB10TSWITCH PIANO DIP SPST 0.15A 30V |
3,400 |
|
Datasheet |
76 | Tube | Active | SPST | 10 | 30VDC | Piano | Raised | 150mA | Copper Alloy | Gold | 0.301" (7.65mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
97R10STSWITCH SLIDE DIP SPST 0.025A 24V |
1,517 |
|
Datasheet |
97 | Bulk | Active | SPST | 10 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.061" (1.55mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|
FR01KR10P-WSWITCH ROTARY DIP BCD 0.1A 5V |
4,475 |
|
Datasheet |
FR01 | Bulk | Active | BCD | 10 | 5VDC | Rotary with Shaft | Raised | 100mA | Copper Alloy | Gold | 0.426" (10.82mm) | Through Hole | PC Pin | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|

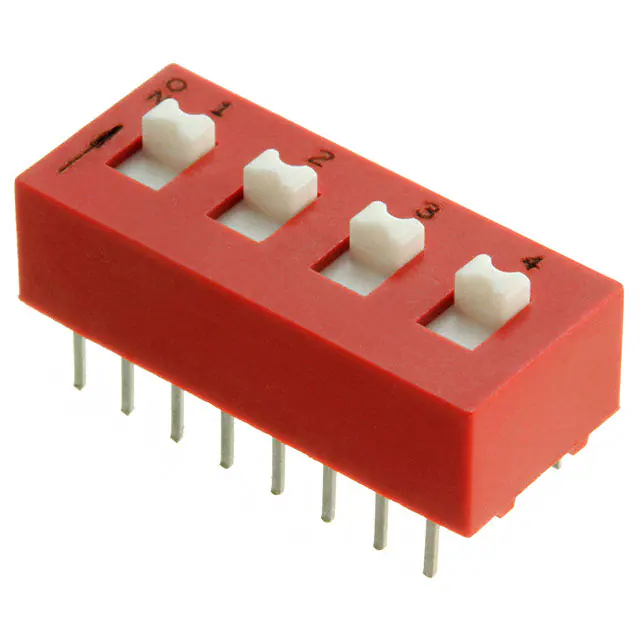

78F04TSWITCH SLIDE DIP DPST 0.15A 30V |
4,427 |
|
Datasheet |
78 | Tube | Active | DPST | 4 | 30VDC | Slide (Standard) | Raised | 150mA | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
90HBW05PTSWITCH SLIDE DIP SPST 0.025A 24V |
4,456 |
|
Datasheet |
90HB | Tube | Active | SPST | 5 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.190" (4.83mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
A6DR-8100SWITCH PIANO DIP SPST 0.03A 30V |
1,813 |
|
Datasheet |
A6DR | Tray | Active | SPST | 8 | 30VDC | Piano | Raised | 30mA | - | Gold | 0.292" (7.41mm) | Through Hole, Right Angle | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | IP64 - Dust Tight, Water Resistant | Yes |
|
A6KS-102RFSWITCH ROTARY DIP BCD 0.025A 24V |
3,253 |
|
Datasheet |
A6KS | Tube | Active | BCD | 10 | 24VDC | Rotary for Tool | Flush, Recessed | 25mA | - | Gold | 0.118" (3.00mm) | Surface Mount | Gull Wing | -30°C ~ 80°C | 0.100" (2.54mm), Full | - | No |
|
FR01SR10P-W-SSWITCH ROTARY DIP BCD 0.1A 5V |
4,192 |
|
Datasheet |
FR01 | Tube | Active | BCD | 10 | 5VDC | Rotary with Knob | Raised | 100mA | Copper Alloy | Gold | 0.284" (7.21mm) | Through Hole | PC Pin | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
FR01SC10P-SSW ROTARY DIP BCD COMP 0.1A 5V |
1,532 |
|
Datasheet |
FR01 | Tube | Active | BCD Complement | 10 | 5VDC | Rotary with Knob | Raised | 100mA | Copper Alloy | Gold | 0.284" (7.21mm) | Through Hole | PC Pin | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
A6DR-6100SWITCH PIANO DIP SPST 0.03A 30V |
2,086 |
|
Datasheet |
A6DR | Tube | Active | SPST | 6 | 30VDC | Piano | Raised | 30mA | - | Gold | 0.292" (7.41mm) | Through Hole, Right Angle | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | IP64 - Dust Tight, Water Resistant | Yes |
|
A6RV-162RSSWITCH ROTARY DIP HEX 0.025A 24V |
2,424 |
|
Datasheet |
A6RV | Tube | Active | Hexadecimal | 16 | 24VDC | Rotary with Shaft | Raised | 25mA | - | - | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | -25°C ~ 80°C | 0.100" (2.54mm), Full | Sealed | No |
|
A6E-0104-NSWITCH SLIDE DIP SPST 0.025A 24V |
3,002 |
|
Datasheet |
A6E-N | Tube | Active | SPST | 10 | 24VDC | Slide (Standard) | Raised | 25mA | - | Gold | 0.277" (7.05mm) | Through Hole | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|
78HJ01GWTSWITCH SLIDE DIP SPDT 0.15A 30V |
3,336 |
|
Datasheet |
78H | Tube | Active | SPDT | 1 | 30VDC | Slide (Standard) | Raised | 150mA | Copper Alloy | Gold | 0.327" (8.30mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
