| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

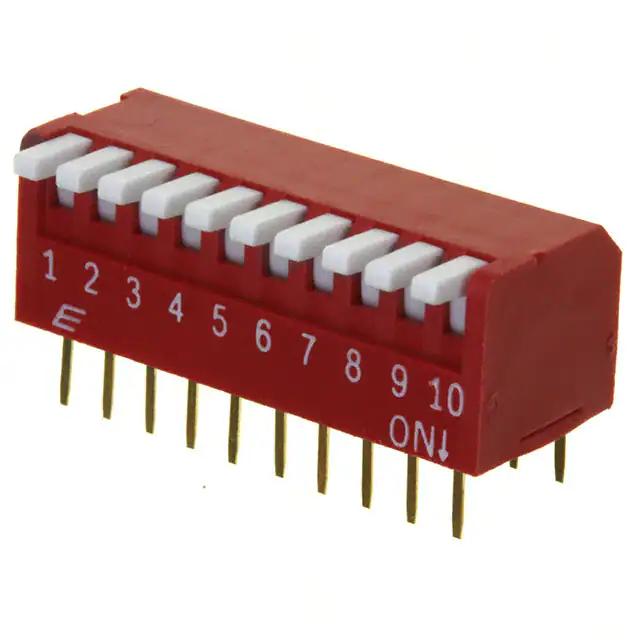

KAP1110ESWITCH PIANO DIP SPST 0.025A 24V |
499 |
|
Datasheet |
KAP | Tube | Active | SPST | 10 | 24VDC | Piano | Raised | 25mA | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
A6SR-4101SWITCH PIANO DIP SPST 0.025A 24V |
1,681 |
|
Datasheet |
A6SR | Tube | Active | SPST | 4 | 24VDC | Piano | Flush, Recessed | 25mA | - | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|
78RB03TSWITCH SLIDE DIP SPST 0.15A 30V |
1,694 |
|
Datasheet |
78 | Tube | Active | SPST | 3 | 30VDC | Slide (Standard) | Flush, Recessed | 150mA | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
A6T-5102SWITCH SLIDE DIP SPST 0.025A 24V |
1,230 |
|
Datasheet |
A6T | Tube | Active | SPST | 5 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | - | 0.142" (3.60mm) | Through Hole | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
CFS-0801MASWITCH SLIDE DIP SPST 0.1A 6V |
4,584 |
|
Datasheet |
CFS | Tube | Active | SPST | 8 | 6VDC | Slide (Standard) | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.154" (3.90mm) | Surface Mount | J Lead | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

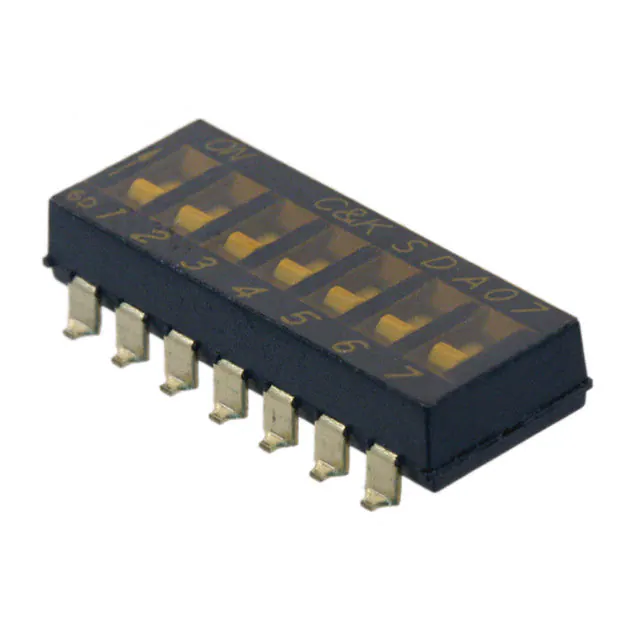

SDA07H0SBSWITCH SLIDE DIP SPST 0.025A 24V |
3,282 |
|
Datasheet |
SDA | Tube | Active | SPST | 7 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
EDS08SNRNTU04QSWITCH SLIDE DIP SPST 0.025A 24V |
3,396 |
|
Datasheet |
EDS | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.136" (3.45mm) | Surface Mount | J Lead | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
EDS08SGRNTR04QSWITCH SLIDE DIP SPST 0.025A 24V |
1,421 |
|
Datasheet |
EDS | Tape & Reel (TR) | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.134" (3.40mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

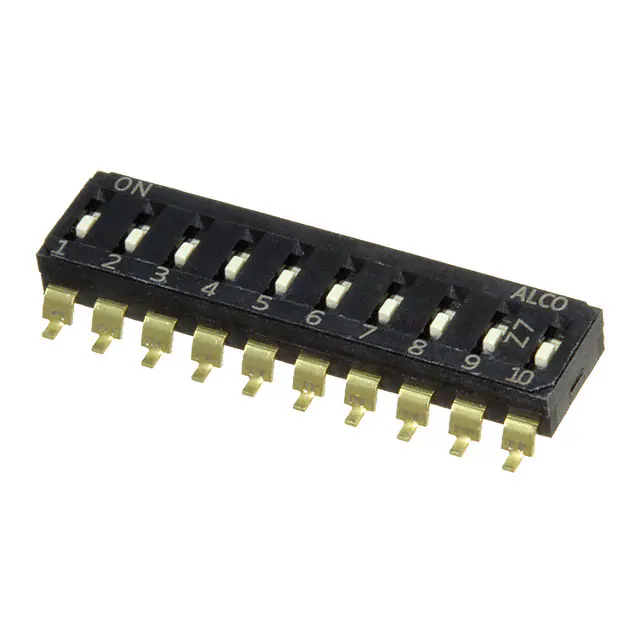

EDS10SGRNTU04QSWITCH SLIDE DIP SPST 0.025A 24V |
1,468 |
|
Datasheet |
EDS | Tube | Active | SPST | 10 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.134" (3.40mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
RD10RA8CTTSW ROTARY DIP OCT COMP 0.15A 50V |
1,808 |
|
Datasheet |
RD10 | Tube | Active | Octal Complement | 8 | 50VDC | Rotary for Tool | Flush, Recessed | 150mA | Copper Alloy | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
A6S-5104-PHSWITCH SLIDE DIP SPST 0.025A 24V |
4,794 |
|
Datasheet |
A6S-H | Tape & Reel (TR) | Active | SPST | 5 | 24VDC | Slide (Standard) | Raised | 25mA | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|
EDS08SNNNTR04QSWITCH SLIDE DIP SPST 0.025A 24V |
1,610 |
|
Datasheet |
EDS | Tape & Reel (TR) | Active | SPST | 8 | 24VDC | Slide (Standard) | Raised | 25mA | Copper Alloy | Gold | 0.152" (3.85mm) | Surface Mount | J Lead | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
EDS08SGRSTU04QSWITCH SLIDE DIP SPST 0.025A 24V |
2,936 |
|
Datasheet |
EDS | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.134" (3.40mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
EDS10SNNNTU04QSWITCH SLIDE DIP SPST 0.025A 24V |
4,864 |
|
Datasheet |
EDS | Tube | Active | SPST | 10 | 24VDC | Slide (Standard) | Raised | 25mA | Copper Alloy | Gold | 0.152" (3.85mm) | Surface Mount | J Lead | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
RD10RA10CVATSW ROTARY DIP BCD COMP 0.15A 50V |
3,941 |
|
Datasheet |
RD10 | Tube | Active | BCD Complement | 10 | 50VDC | Rotary for Tool | Flush, Recessed | 150mA | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
A6T-0102SWITCH SLIDE DIP SPST 0.025A 24V |
1,129 |
|
Datasheet |
A6T | Tube | Active | SPST | 10 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | - | 0.142" (3.60mm) | Through Hole | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
|
EDS10SNNNTR04QSWITCH SLIDE DIP SPST 0.025A 24V |
1,827 |
|
Datasheet |
EDS | Tape & Reel (TR) | Active | SPST | 10 | 24VDC | Slide (Standard) | Raised | 25mA | Copper Alloy | Gold | 0.152" (3.85mm) | Surface Mount | J Lead | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
EDS10SGRNTR04QSWITCH SLIDE DIP SPST 0.025A 24V |
4,275 |
|
Datasheet |
EDS | Tape & Reel (TR) | Active | SPST | 10 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.134" (3.40mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
RDS-16S-74R45A-508-DSWITCH ROTARY DIP HEX 0.1A 42V |
4,502 |
|
Datasheet |
RDS-74R45A-508 | Tube | Active | Hexadecimal | 16 | 42VDC | Rotary with Shaft | Raised | 100mA | Copper Alloy | Gold | 0.291" (7.40mm) | Through Hole, Right Angle | PC Pin | -60°C ~ 125°C | 0.100" (2.54mm), Full | IP67 - Dust Tight, Waterproof | No |
|
EDSP02SGRNNTU04SWITCH PIANO DIP SPST 0.025A 24V |
4,891 |
|
Datasheet |
EDSP | Tube | Active | SPST | 2 | 24VDC | Piano | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
