| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KJ05EXRSWITCH SLIDE DIP SPST 0.025A 24V |
1,043 |
|
Datasheet |
KJ | Tape & Reel (TR) | Active | SPST | 5 | 24VDC | Slide (Standard) | Raised | 25mA | Beryllium Copper | Gold | 0.161" (4.10mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
219-10LPSTJSWITCH SLIDE DIP SPST 0.1A 20V |
4,084 |
|
Datasheet |
219 | Tube | Active | SPST | 10 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
219-10LPSTJFSWITCH SLIDE DIP SPST 0.1A 20V |
4,292 |
|
Datasheet |
219 | Tube | Active | SPST | 10 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
219-10MSTJSWITCH SLIDE DIP SPST 0.1A 20V |
4,207 |
|
Datasheet |
219 | Tube | Active | SPST | 10 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|

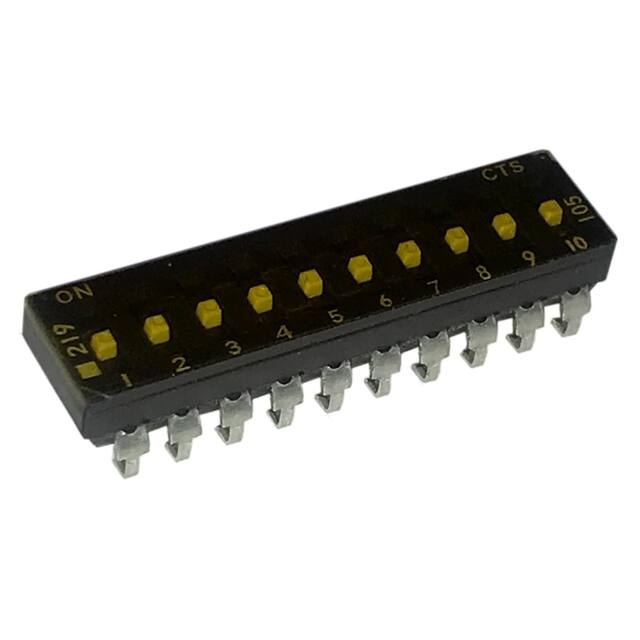

219-10MSTJFSWITCH SLIDE DIP SPST 0.1A 20V |
3,161 |
|
Datasheet |
219 | Tube | Active | SPST | 10 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
|
206-10ESWITCH SLIDE DIP SPST 0.05A 24V |
2,186 |
|
Datasheet |
206 | Tube | Active | SPST | 10 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.434" (11.02mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
209-12MSSWITCH SLIDE DIP SPST 0.1A 20V |
4,446 |
|
Datasheet |
209 | Tube | Active | SPST | 12 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
206-12LPSSWITCH SLIDE DIP SPST 0.05A 24V |
2,673 |
|
Datasheet |
206 | Tube | Active | SPST | 12 | 24VDC | Slide (Standard) | Flush, Recessed | 50mA | - | Gold | 0.299" (7.60mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
206-12LPSNSWITCH SLIDE DIP SPST 0.05A 24V |
3,028 |
|
Datasheet |
206 | Tube | Active | SPST | 12 | 24VDC | Slide (Standard) | Flush, Recessed | 50mA | - | Gold | 0.299" (7.60mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|

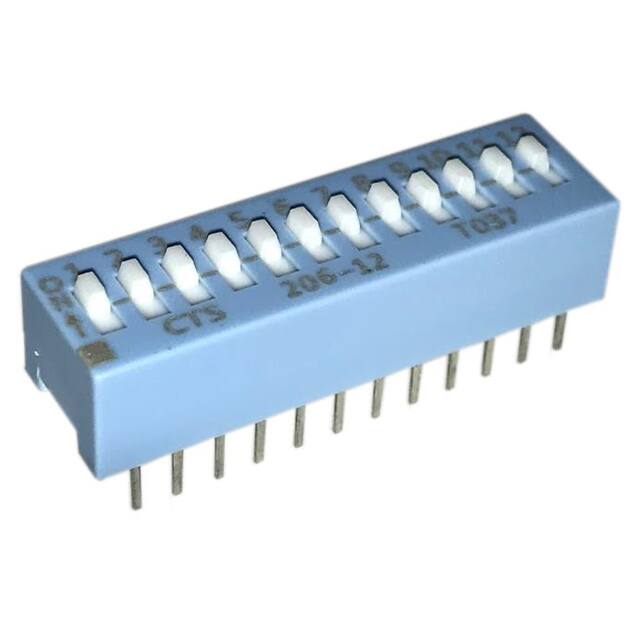

206-12SSWITCH SLIDE DIP SPST 0.05A 24V |
2,121 |
|
Datasheet |
206 | Tube | Active | SPST | 12 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
209-12ESSWITCH SLIDE DIP SPST 0.1A 20V |
4,522 |
|
Datasheet |
209 | Tube | Active | SPST | 12 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
209-12ESDSWITCH SLIDE DIP SPST 0.1A 20V |
3,249 |
|
Datasheet |
209 | Tube | Active | SPST | 12 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
209-12ESFSWITCH SLIDE DIP SPST 0.1A 20V |
1,676 |
|
Datasheet |
209 | Tube | Active | SPST | 12 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
209-12ESFDSWITCH SLIDE DIP SPST 0.1A 20V |
1,636 |
|
Datasheet |
209 | Tube | Active | SPST | 12 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
209-12LPSSWITCH SLIDE DIP SPST 0.1A 20V |
2,150 |
|
Datasheet |
209 | Tube | Active | SPST | 12 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
209-12LPSDSWITCH SLIDE DIP SPST 0.1A 20V |
4,844 |
|
Datasheet |
209 | Tube | Active | SPST | 12 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
209-12LPSFSWITCH SLIDE DIP SPST 0.1A 20V |
4,770 |
|
Datasheet |
209 | Tube | Active | SPST | 12 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
209-12LPSFDSWITCH SLIDE DIP SPST 0.1A 20V |
4,319 |
|
Datasheet |
209 | Tube | Active | SPST | 12 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
209-12MSDSWITCH SLIDE DIP SPST 0.1A 20V |
2,286 |
|
Datasheet |
209 | Tube | Active | SPST | 12 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
209-12MSFSWITCH SLIDE DIP SPST 0.1A 20V |
1,472 |
|
Datasheet |
209 | Tube | Active | SPST | 12 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
