| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DS01-254-S-12BESWITCH SLIDE DIP SPST 0.025A 24V |
3,147 |
|
Datasheet |
DS01-254 | Tube | Active | SPST | 12 | 24VDC | Slide (Standard) | Raised | 25mA | Copper Alloy | Gold | 0.264" (6.70mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
DS01-254-L-12BESWITCH SLIDE DIP SPST 0.025A 24V |
1,923 |
|
Datasheet |
DS01-254 | Tube | Active | SPST | 12 | 24VDC | Slide (Standard) | Raised | 25mA | Copper Alloy | Gold | 0.264" (6.70mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
KP06RTSWITCH PIANO DIP SPST 0.025A 24V |
3,176 |
|
Datasheet |
KP | Tube | Active | SPST | 6 | 24VDC | Piano | Flush, Recessed | 25mA | Phosphor Bronze | Gold | 0.374" (9.50mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
206-7RASWITCH SLIDE DIP SPST 0.05A 24V |
1,108 |
|
Datasheet |
206RA | Tube | Active | SPST | 7 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
DS02-254-1L-06BESWITCH PIANO DIP SPST 0.025A 24V |
3,014 |
|
Datasheet |
DS02-254 | Tube | Obsolete | SPST | 6 | 24VDC | Piano | Raised | 25mA | Copper Alloy | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
A6S-4102-PSWITCH SLIDE DIP SPST 0.025A 24V |
2,745 |
|
Datasheet |
A6S | Tape & Reel (TR) | Obsolete | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | - | 0.146" (3.70mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
ADF04SWITCH SLIDE DIP SPST 0.025A 24V |
3,686 |
|
Datasheet |
ADF | Tube | Obsolete | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.189" (4.80mm) | Through Hole | PC Pin | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
193-5MSSWITCH PIANO DIP SPST 0.05A 24V |
1,195 |
|
Datasheet |
193 | Tube | Active | SPST | 5 | 24VDC | Piano | Raised | 50mA | - | Gold | 0.359" (9.12mm) | Surface Mount, Right Angle | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
193-5MSNSWITCH PIANO DIP SPST 0.05A 24V |
1,919 |
|
Datasheet |
193 | Tube | Active | SPST | 5 | 24VDC | Piano | Raised | 50mA | - | Gold | 0.359" (9.12mm) | Surface Mount, Right Angle | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
204-6STRSWITCH SLIDE DIP SPST 0.05A 24V |
1,008 |
|
Datasheet |
204 | Tape & Reel (TR) | Active | SPST | 6 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
218-6LPSRSWITCH SLIDE DIP SPST 0.025A 24V |
2,282 |
|
Datasheet |
218 | Tape & Reel (TR) | Active | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.104" (2.65mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.050" (1.27mm), Half | Epoxy Sealed Terminals | No |
|
218-6LPSRFSWITCH SLIDE DIP SPST 0.025A 24V |
3,390 |
|
Datasheet |
218 | Tape & Reel (TR) | Active | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.104" (2.65mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.050" (1.27mm), Half | Epoxy Sealed Terminals | No |
|
|
QFPS12LDIP SWITCHES / SIP SWITCHES |
1,103 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
KJ05EXTSWITCH SLIDE DIP SPST 0.025A 24V |
2,344 |
|
Datasheet |
KJ | Tube | Active | SPST | 5 | 24VDC | Slide (Standard) | Raised | 25mA | Beryllium Copper | Gold | 0.161" (4.10mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
KJ05RXTSWITCH SLIDE DIP SPST 0.025A 24V |
3,412 |
|
Datasheet |
KJ | Tube | Active | SPST | 5 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.138" (3.50mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
KR06RTSWITCH SLIDE DIP SPST 0.025A 24V |
1,030 |
|
Datasheet |
KR | Tube | Active | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
ADE06SSWITCH SLIDE DIP SPST 0.1A 24V |
1,915 |
|
Datasheet |
ADE | Tube | Obsolete | SPST | 6 | 24VDC | Slide (Standard) | Raised | 100mA | Copper Alloy | Gold | 0.219" (5.55mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|

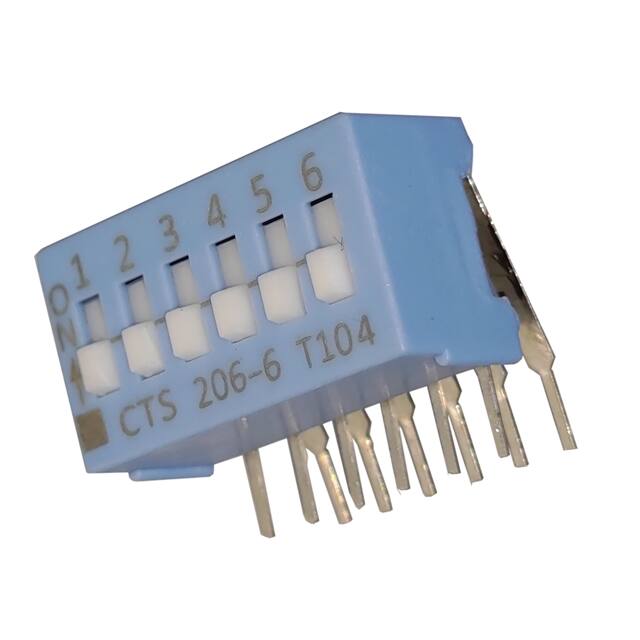

206-6RASSWITCH SLIDE DIP SPST 0.05A 24V |
1,484 |
|
Datasheet |
206RA | Tube | Active | SPST | 6 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
204-7STSWITCH SLIDE DIP SPST 0.05A 24V |
4,675 |
|
Datasheet |
204 | Tube | Active | SPST | 7 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
|
206-213SSWITCH SLIDE DIP DPST 0.05A 24V |
1,926 |
|
Datasheet |
206 | Tube | Active | DPST | 3 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
