| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
219-9LPSRSWITCH SLIDE DIP SPST 0.1A 20V |
4,325 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 9 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-9LPSRFSWITCH SLIDE DIP SPST 0.1A 20V |
1,774 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 9 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-9MSRSWITCH SLIDE DIP SPST 0.1A 20V |
2,898 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 9 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-9MSRFSWITCH SLIDE DIP SPST 0.1A 20V |
4,167 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 9 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
DS02C-254-2L-06BESWITCH PIANO DIP SPST 0.025A 24V |
3,480 |
|
Datasheet |
DS02-254 | Tube | Obsolete | SPST | 6 | 24VDC | Piano | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
78B04SWITCH SLIDE DIP SPST 0.15A 30V |
3,141 |
|
Datasheet |
78 | Bulk | Obsolete | SPST | 4 | 30VDC | Slide (Standard) | Raised | 150mA | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
CJS-1200BSWITCH SLIDE SPDT 100MA 6V |
2,203 |
|
Datasheet |
CJS | Bulk | Active | SPDT | - | - | Flush | - | 100mA | Copper Alloy | Gold | - | Surface Mount | Gull Wing | -40°C ~ 85°C | - | Tape Seal | - |
|
|
204-4LPSTRSWITCH SLIDE DIP SPST 0.05A 24V |
4,596 |
|
Datasheet |
204 | Tape & Reel (TR) | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 50mA | - | Gold | 0.359" (9.12mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
218-4LPSTJRFSWITCH SLIDE DIP SPST 0.025A 24V |
3,369 |
|
Datasheet |
218 | Tape & Reel (TR) | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.050" (1.27mm), Half | Epoxy Sealed Terminals, Tape Seal | Yes |
|
206-10LPSTSWITCH SLIDE DIP SPST 0.05A 24V |
2,059 |
|
Datasheet |
206 | Tube | Active | SPST | 10 | 24VDC | Slide (Standard) | Flush, Recessed | 50mA | - | Gold | 0.299" (7.60mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
|
204-3STRSWITCH SLIDE DIP SPST 0.05A 24V |
3,189 |
|
Datasheet |
204 | Tape & Reel (TR) | Active | SPST | 3 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|

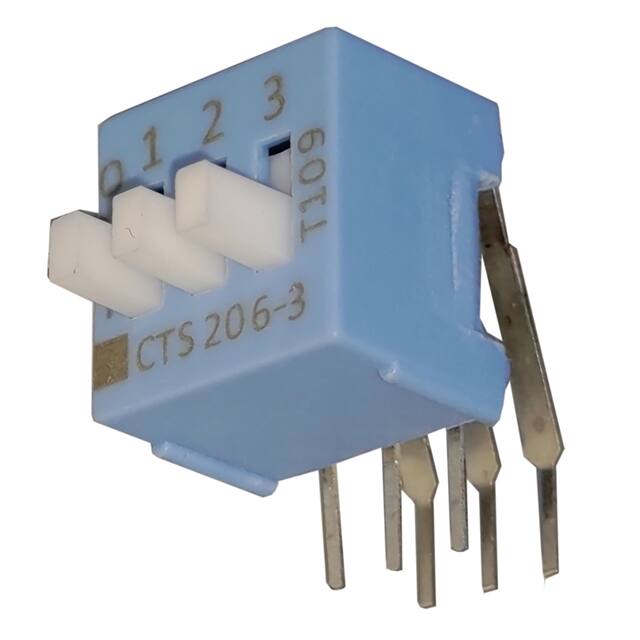

206-3RAESSWITCH SLIDE DIP SPST 0.05A 24V |
4,768 |
|
Datasheet |
206RA | Tube | Active | SPST | 3 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
206-122SSWITCH SLIDE DIP SPDT 0.05A 24V |
1,273 |
|
Datasheet |
206 | Tube | Active | SPDT | 2 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
218-4LPSJSWITCH SLIDE DIP SPST 0.025A 24V |
3,063 |
|
Datasheet |
218 | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.050" (1.27mm), Half | Epoxy Sealed Terminals | No |
|
218-4LPSJFSWITCH SLIDE DIP SPST 0.025A 24V |
2,497 |
|
Datasheet |
218 | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.050" (1.27mm), Half | Epoxy Sealed Terminals | No |
|
219-8ESJRSWITCH SLIDE DIP SPST 0.1A 20V |
2,297 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 8 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.224" (5.70mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-8ESJRFSWITCH SLIDE DIP SPST 0.1A 20V |
2,994 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 8 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.224" (5.70mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-8LPSJRSWITCH SLIDE DIP SPST 0.1A 20V |
3,078 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 8 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-8LPSJRFSWITCH SLIDE DIP SPST 0.1A 20V |
1,407 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 8 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-8MSJRSWITCH SLIDE DIP SPST 0.1A 20V |
4,805 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 8 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
