| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

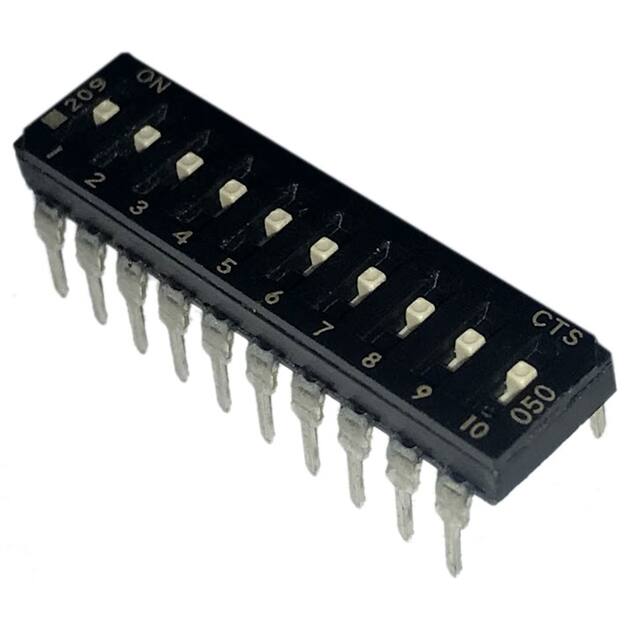

209-10LPSSWITCH SLIDE DIP SPST 0.1A 20V |
3,714 |
|
Datasheet |
209 | Tube | Active | SPST | 10 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
209-10LPSDSWITCH SLIDE DIP SPST 0.1A 20V |
4,981 |
|
Datasheet |
209 | Tube | Active | SPST | 10 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
209-10LPSFSWITCH SLIDE DIP SPST 0.1A 20V |
4,761 |
|
Datasheet |
209 | Tube | Active | SPST | 10 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
209-10LPSFDSWITCH SLIDE DIP SPST 0.1A 20V |
3,864 |
|
Datasheet |
209 | Tube | Active | SPST | 10 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
209-10MSDSWITCH SLIDE DIP SPST 0.1A 20V |
4,037 |
|
Datasheet |
209 | Tube | Active | SPST | 10 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
209-10MSFSWITCH SLIDE DIP SPST 0.1A 20V |
3,596 |
|
Datasheet |
209 | Tube | Active | SPST | 10 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
209-10MSFDSWITCH SLIDE DIP SPST 0.1A 20V |
4,866 |
|
Datasheet |
209 | Tube | Active | SPST | 10 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
KJ04EXTSWITCH SLIDE DIP SPST 0.025A 24V |
4,544 |
|
Datasheet |
KJ | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Raised | 25mA | Beryllium Copper | Gold | 0.161" (4.10mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
KG08ETSWITCH SLIDE DIP SPST 0.025A 24V |
3,122 |
|
Datasheet |
KG | Tube | Obsolete | SPST | 8 | 24VDC | Slide (Standard) | Raised | 25mA | Phosphor Bronze | Gold | 0.258" (6.55mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
193-4MSNSWITCH PIANO DIP SPST 0.05A 24V |
4,979 |
|
Datasheet |
193 | Tube | Active | SPST | 4 | 24VDC | Piano | Raised | 50mA | - | Gold | 0.359" (9.12mm) | Surface Mount, Right Angle | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
DS04-254-2-07BK-SMT-TRSWITCH SLIDE DIP SPST 0.025A 24V |
2,531 |
|
Datasheet |
DS04-254-SMT | Tape & Reel (TR) | Active | SPST | 7 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.167" (4.25mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
KAS1104RSWITCH SLIDE DIP SPST 0.025A 24V |
4,719 |
|
Datasheet |
KAS | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Phosphor Bronze | Gold | 0.236" (6.00mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
KAS1103RSWITCH SLIDE DIP SPST 0.025A 24V |
3,000 |
|
Datasheet |
KAS | Tube | Active | SPST | 3 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Phosphor Bronze | Gold | 0.236" (6.00mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

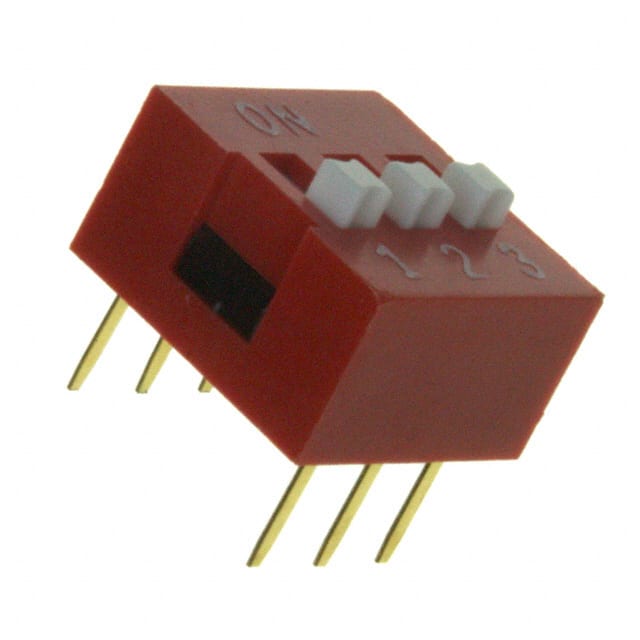

KAS1103ESWITCH SLIDE DIP SPST 0.025A 24V |
3,846 |
|
Datasheet |
KAS | Tube | Active | SPST | 3 | 24VDC | Slide (Standard) | Raised | 25mA | Phosphor Bronze | Gold | 0.275" (6.99mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
193-3MSRSWITCH PIANO DIP SPST 0.05A 24V |
1,230 |
|
Datasheet |
193 | Tape & Reel (TR) | Active | SPST | 3 | 24VDC | Piano | Raised | 50mA | - | Gold | 0.359" (9.12mm) | Surface Mount, Right Angle | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
193-3MSRNSWITCH PIANO DIP SPST 0.05A 24V |
1,610 |
|
Datasheet |
193 | Tape & Reel (TR) | Active | SPST | 3 | 24VDC | Piano | Raised | 50mA | - | Gold | 0.359" (9.12mm) | Surface Mount, Right Angle | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
KT08RTHSWITCH SLIDE DIP SPST 0.025A 24V |
3,362 |
|
Datasheet |
KT | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.144" (3.65mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
KT08ETHSWITCH SLIDE DIP SPST 0.025A 24V |
2,981 |
|
Datasheet |
KT | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Raised | 25mA | Beryllium Copper | Gold | 0.167" (4.25mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
CAS-120TA1SWITCH SLIDE SPDT 100MA 6V |
3,818 |
|
Datasheet |
CAS | Tape & Reel (TR) | Active | SPDT | - | - | Flush | - | 100mA | Copper Alloy | Gold | - | Surface Mount | J Lead | -40°C ~ 85°C | - | - | - |
|
CAS-120TB1SWITCH SLIDE SPDT 100MA 6V |
1,147 |
|
Datasheet |
CAS | Tape & Reel (TR) | Active | SPDT | - | - | Flush | - | 100mA | Copper Alloy | Gold | - | Surface Mount | Gull Wing | -40°C ~ 85°C | - | - | - |
