| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
195-7MSTSWITCH PIANO DIP SPST 0.05A 24V |
1,281 |
|
Datasheet |
195 | Tube | Active | SPST | 7 | 24VDC | Piano | Raised | 50mA | - | Tin | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
219-7LPSTJRSWITCH SLIDE DIP SPST 0.1A 20V |
1,966 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 7 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
219-7LPSTJRFSWITCH SLIDE DIP SPST 0.1A 20V |
4,989 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 7 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
219-7MSTJRSWITCH SLIDE DIP SPST 0.1A 20V |
2,045 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 7 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
219-7MSTJRFSWITCH SLIDE DIP SPST 0.1A 20V |
2,258 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 7 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
KAR04LGGRSWITCH PIANO DIP SPST 0.025A 24V |
4,159 |
|
Datasheet |
KAR | Tape & Reel (TR) | Obsolete | SPST | 4 | 24VDC | Piano | Raised | 25mA | Copper Alloy | Gold | 0.287" (7.30mm) | Surface Mount, Right Angle | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | Process Sealed | Yes |
|
|
206-4RASSWITCH SLIDE DIP SPST 0.05A 24V |
1,018 |
|
Datasheet |
206RA | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
DS02C-254-2L-07BESWITCH PIANO DIP SPST 0.025A 24V |
3,613 |
|
Datasheet |
DS02-254 | Tube | Obsolete | SPST | 7 | 24VDC | Piano | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
208-12LPSTSWITCH SLIDE DIP SPST 0.05A 24V |
2,014 |
|
Datasheet |
208 | Tube | Active | SPST | 12 | 24VDC | Slide (Standard) | Flush, Recessed | 50mA | - | Tin | 0.299" (7.60mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|

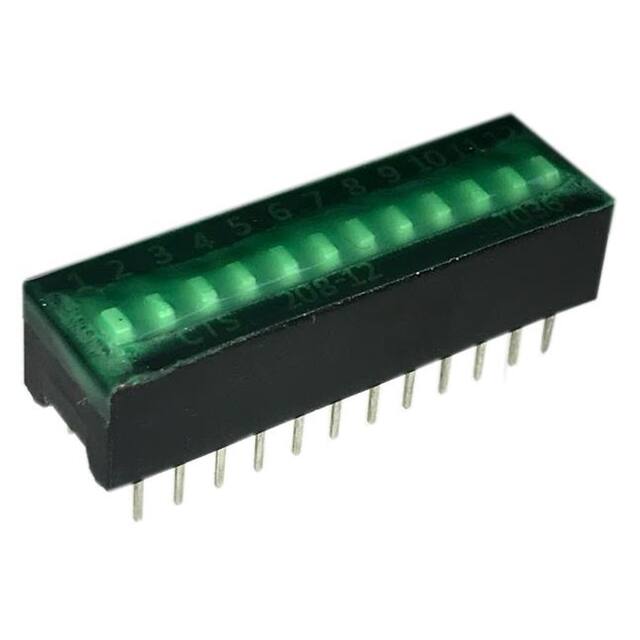

208-12STSWITCH SLIDE DIP SPST 0.05A 24V |
2,231 |
|
Datasheet |
208 | Tube | Active | SPST | 12 | 24VDC | Slide (Standard) | Raised | 50mA | - | Tin | 0.334" (8.48mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
195-10MSSWITCH PIANO DIP SPST 0.05A 24V |
4,115 |
|
Datasheet |
195 | Tube | Active | SPST | 10 | 24VDC | Piano | Raised | 50mA | - | Tin | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
195-10MSNSWITCH PIANO DIP SPST 0.05A 24V |
4,880 |
|
Datasheet |
195 | Tube | Active | SPST | 10 | 24VDC | Piano | Raised | 50mA | - | Tin | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
KAE02SGGTSWITCH SLIDE DIP SPST 0.025A 24V |
3,058 |
|
Datasheet |
KAE | Tube | Active | SPST | 2 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper | Gold | 0.148" (3.75mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
KAE02LAGTSWITCH SLIDE DIP SPST 0.025A 24V |
3,648 |
|
Datasheet |
KAE | Tube | Active | SPST | 2 | 24VDC | Slide (Standard) | Raised | 25mA | Copper | Gold | 0.169" (4.30mm) | Through Hole | PC Pin | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
KAE02LHGTSWITCH SLIDE DIP SPST 0.025A 24V |
4,067 |
|
Datasheet |
KAE | Tube | Active | SPST | 2 | 24VDC | Slide (Standard) | Raised | 25mA | Copper | Gold | 0.169" (4.30mm) | Through Hole | PC Pin | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
KAE01SGGRSWITCH SLIDE DIP SPST 0.025A 24V |
4,393 |
|
Datasheet |
KAE | Tape & Reel (TR) | Active | SPST | 1 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper | Gold | 0.123" (3.12mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
KAE02LGGTSWITCH SLIDE DIP SPST 0.025A 24V |
4,762 |
|
Datasheet |
KAE | Tube | Active | SPST | 2 | 24VDC | Slide (Standard) | Raised | 25mA | Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
1-1825058-6SWITCH STANDARD DIP SPST |
1,635 |
|
Datasheet |
ADE | Tube | Active | SPST | 7 | - | Standard | Raised | - | - | - | - | Surface Mount | - | - | - | - | Yes |
|
218-4LPSJRSWITCH SLIDE DIP SPST 0.025A 24V |
4,886 |
|
Datasheet |
218 | Tape & Reel (TR) | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.050" (1.27mm), Half | Epoxy Sealed Terminals | No |
|
218-4LPSJRFSWITCH SLIDE DIP SPST 0.025A 24V |
2,529 |
|
Datasheet |
218 | Tape & Reel (TR) | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.050" (1.27mm), Half | Epoxy Sealed Terminals | No |
