| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

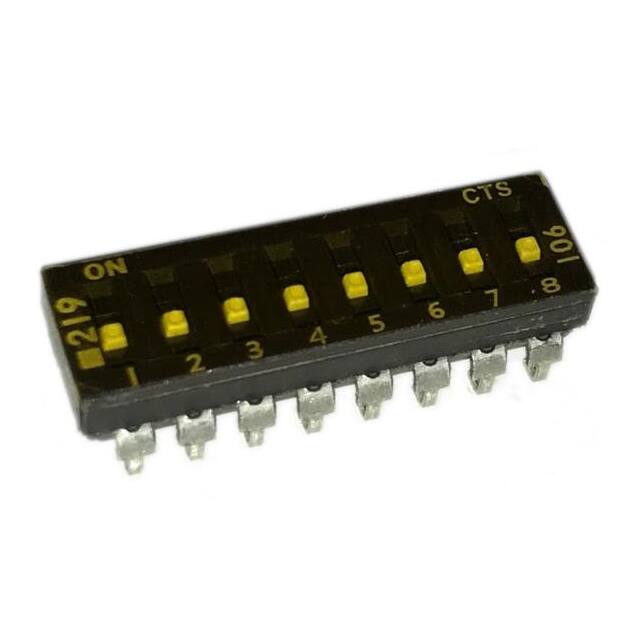

219-8LPSTJFSWITCH SLIDE DIP SPST 0.1A 20V |
4,184 |
|
Datasheet |
219 | Tube | Active | SPST | 8 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
219-8MSTJSWITCH SLIDE DIP SPST 0.1A 20V |
2,027 |
|
Datasheet |
219 | Tube | Active | SPST | 8 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
219-8MSTJFSWITCH SLIDE DIP SPST 0.1A 20V |
4,587 |
|
Datasheet |
219 | Tube | Active | SPST | 8 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
206-211RASWITCH SLIDE DIP DPST 0.05A 24V |
3,851 |
|
Datasheet |
206RA | Tube | Active | DPST | 1 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
206-5RASWITCH SLIDE DIP SPST 0.05A 24V |
4,498 |
|
Datasheet |
206RA | Tube | Active | SPST | 5 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
218-4LPSTFSWITCH SLIDE DIP SPST 0.025A 24V |
1,935 |
|
Datasheet |
218 | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.104" (2.65mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.050" (1.27mm), Half | Epoxy Sealed Terminals, Tape Seal | Yes |
|
DS01-254-L-09BESWITCH SLIDE DIP SPST 0.025A 24V |
3,184 |
|
Datasheet |
DS01-254 | Tube | Active | SPST | 9 | 24VDC | Slide (Standard) | Raised | 25mA | Copper Alloy | Gold | 0.264" (6.70mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
DS01-254-S-10BESWITCH SLIDE DIP SPST 0.025A 24V |
1,113 |
|
Datasheet |
DS01-254 | Tube | Active | SPST | 10 | 24VDC | Slide (Standard) | Raised | 25mA | Copper Alloy | Gold | 0.264" (6.70mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
DS01-254-L-10BESWITCH SLIDE DIP SPST 0.025A 24V |
3,016 |
|
Datasheet |
DS01-254 | Tube | Active | SPST | 10 | 24VDC | Slide (Standard) | Raised | 25mA | Copper Alloy | Gold | 0.264" (6.70mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
206-121STSWITCH SLIDE DIP SPDT 0.05A 24V |
2,739 |
|
Datasheet |
206 | Tube | Active | SPDT | 1 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
|
CFS-0303TBSWITCH SLIDE DIP SPST 0.1A 6V |
3,650 |
|
Datasheet |
CFS | Tape & Reel (TR) | Active | SPST | 3 | 6VDC | Slide (Standard) | Raised | 100mA | Copper Alloy | Gold | 0.185" (4.70mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
CFS-0302TASWITCH SLIDE DIP SPST 0.1A 6V |
1,033 |
|
Datasheet |
CFS | Tape & Reel (TR) | Active | SPST | 3 | 6VDC | Slide (Standard) | Raised | 100mA | Copper Alloy | Gold | 0.177" (4.50mm) | Surface Mount | J Lead | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
KJ03RXRSWITCH SLIDE DIP SPST 0.025A 24V |
1,215 |
|
Datasheet |
KJ | Tape & Reel (TR) | Active | SPST | 3 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.138" (3.50mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
KJ03RTTSWITCH SLIDE DIP SPST 0.025A 24V |
1,976 |
|
Datasheet |
KJ | Tube | Active | SPST | 3 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.140" (3.55mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
KJ04RXTSWITCH SLIDE DIP SPST 0.025A 24V |
1,234 |
|
Datasheet |
KJ | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.138" (3.50mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

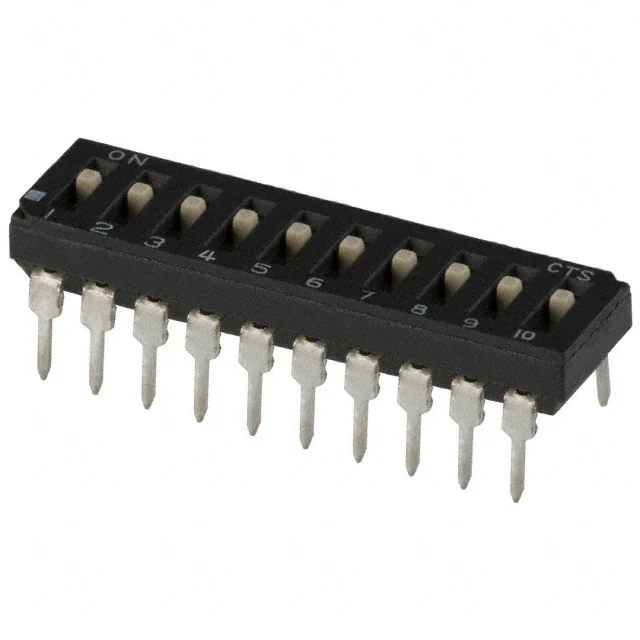

209-10MSSWITCH SLIDE DIP SPST 0.1A 20V |
3,244 |
|
Datasheet |
209 | Tube | Active | SPST | 10 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
209-10ESSWITCH SLIDE DIP SPST 0.1A 20V |
3,519 |
|
Datasheet |
209 | Tube | Active | SPST | 10 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
209-10ESDSWITCH SLIDE DIP SPST 0.1A 20V |
2,863 |
|
Datasheet |
209 | Tube | Active | SPST | 10 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
209-10ESFSWITCH SLIDE DIP SPST 0.1A 20V |
2,757 |
|
Datasheet |
209 | Tube | Active | SPST | 10 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
209-10ESFDSWITCH SLIDE DIP SPST 0.1A 20V |
4,197 |
|
Datasheet |
209 | Tube | Active | SPST | 10 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
