| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

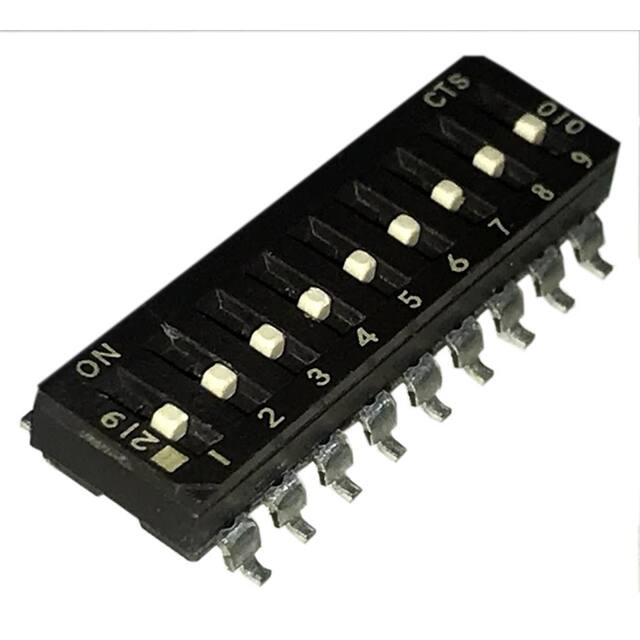

219-9MSFSWITCH SLIDE DIP SPST 0.1A 20V |
3,741 |
|
Datasheet |
219 | Tube | Active | SPST | 9 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
209-9LPSTSWITCH SLIDE DIP SPST 0.1A 20V |
1,250 |
|
Datasheet |
209 | Tube | Active | SPST | 9 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|

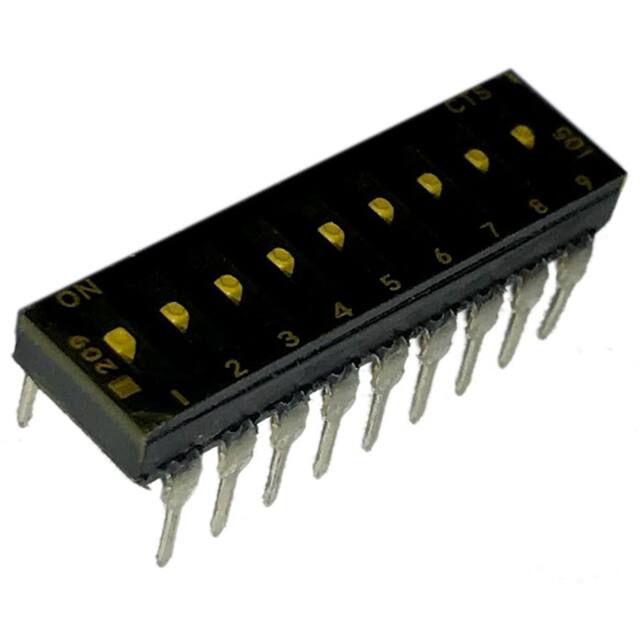

209-9LPSTDSWITCH SLIDE DIP SPST 0.1A 20V |
2,026 |
|
Datasheet |
209 | Tube | Active | SPST | 9 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|

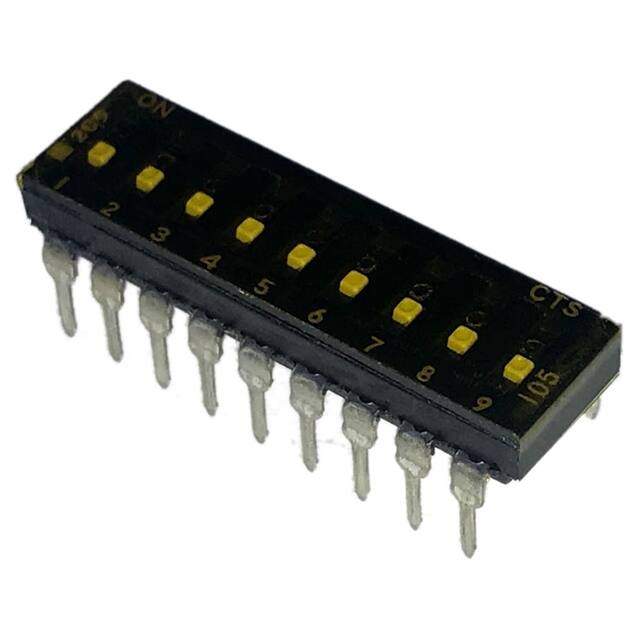

209-9LPSTFSWITCH SLIDE DIP SPST 0.1A 20V |
1,380 |
|
Datasheet |
209 | Tube | Active | SPST | 9 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|

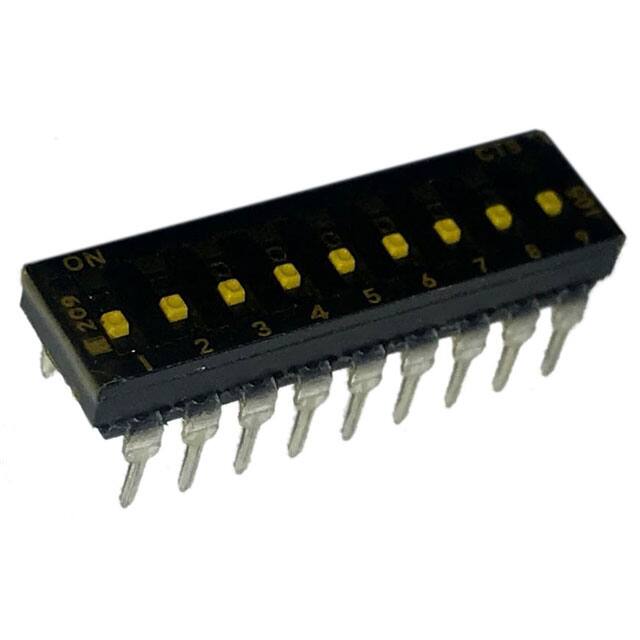

209-9LPSTFDSWITCH SLIDE DIP SPST 0.1A 20V |
3,825 |
|
Datasheet |
209 | Tube | Active | SPST | 9 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
209-9MSTSWITCH SLIDE DIP SPST 0.1A 20V |
1,986 |
|
Datasheet |
209 | Tube | Active | SPST | 9 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
|
209-9MSTDSWITCH SLIDE DIP SPST 0.1A 20V |
1,456 |
|
Datasheet |
209 | Tube | Active | SPST | 9 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
|
209-9MSTFSWITCH SLIDE DIP SPST 0.1A 20V |
4,322 |
|
Datasheet |
209 | Tube | Active | SPST | 9 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
|
209-9MSTFDSWITCH SLIDE DIP SPST 0.1A 20V |
4,244 |
|
Datasheet |
209 | Tube | Active | SPST | 9 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
|
KAJ06SGGRSWITCH SLIDE DIP SPST 0.025A 24V |
3,253 |
|
Datasheet |
KAJ | Tape & Reel (TR) | Obsolete | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.140" (3.55mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
204-5SRSWITCH SLIDE DIP SPST 0.05A 24V |
2,536 |
|
Datasheet |
204 | Tape & Reel (TR) | Active | SPST | 5 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.394" (10.01mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
206-9SSWITCH SLIDE DIP SPST 0.05A 24V |
1,918 |
|
Datasheet |
206 | Tube | Active | SPST | 9 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|

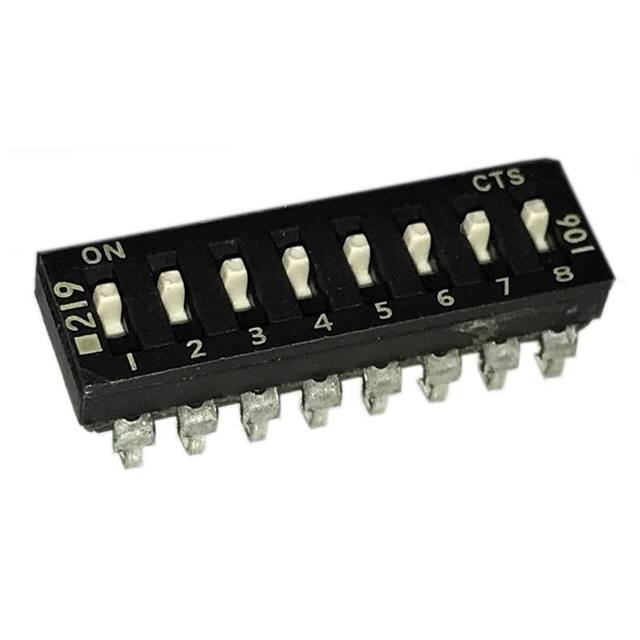

219-8ESJSWITCH SLIDE DIP SPST 0.1A 20V |
4,985 |
|
Datasheet |
219 | Tube | Active | SPST | 8 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.224" (5.70mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-8ESJFSWITCH SLIDE DIP SPST 0.1A 20V |
2,171 |
|
Datasheet |
219 | Tube | Active | SPST | 8 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.224" (5.70mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-8LPSJSWITCH SLIDE DIP SPST 0.1A 20V |
2,899 |
|
Datasheet |
219 | Tube | Active | SPST | 8 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-8LPSJFSWITCH SLIDE DIP SPST 0.1A 20V |
2,982 |
|
Datasheet |
219 | Tube | Active | SPST | 8 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-8MSJSWITCH SLIDE DIP SPST 0.1A 20V |
1,216 |
|
Datasheet |
219 | Tube | Active | SPST | 8 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-8MSJFSWITCH SLIDE DIP SPST 0.1A 20V |
4,132 |
|
Datasheet |
219 | Tube | Active | SPST | 8 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
DS04-254-1S-08BKSWITCH SLIDE DIP SPST 0.025A 24V |
4,016 |
|
Datasheet |
DS04-254 | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Raised | 25mA | Copper Alloy | Gold | 0.166" (4.21mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
DS04-254-2S-08BKSWITCH SLIDE DIP SPST 0.025A 24V |
2,681 |
|
Datasheet |
DS04-254 | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.144" (3.66mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
