| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
218-2LPSJSWITCH SLIDE DIP SPST 0.025A 24V |
1,441 |
|
Datasheet |
218 | Tube | Active | SPST | 2 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.050" (1.27mm), Half | Epoxy Sealed Terminals | No |
|
218-2LPSJFSWITCH SLIDE DIP SPST 0.025A 24V |
4,224 |
|
Datasheet |
218 | Tube | Active | SPST | 2 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.050" (1.27mm), Half | Epoxy Sealed Terminals | No |
|
219-6LPSTJRSWITCH SLIDE DIP SPST 0.1A 20V |
3,800 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 6 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
219-6LPSTJRFSWITCH SLIDE DIP SPST 0.1A 20V |
1,328 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 6 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
219-6MSTJRSWITCH SLIDE DIP SPST 0.1A 20V |
2,242 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 6 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
219-6MSTJRFSWITCH SLIDE DIP SPST 0.1A 20V |
2,226 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 6 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
218-2LPSTJRSWITCH SLIDE DIP SPST 0.025A 24V |
3,402 |
|
Datasheet |
218 | Tape & Reel (TR) | Active | SPST | 2 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.050" (1.27mm), Half | Epoxy Sealed Terminals, Tape Seal | Yes |
|
218-2LPSTJRFSWITCH SLIDE DIP SPST 0.025A 24V |
1,334 |
|
Datasheet |
218 | Tape & Reel (TR) | Active | SPST | 2 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.050" (1.27mm), Half | Epoxy Sealed Terminals, Tape Seal | Yes |
|
ADF04STSWITCH SLIDE DIP SPST 0.025A 24V |
3,462 |
|
Datasheet |
ADF | Tube | Obsolete | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.177" (4.50mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
206-5ESSWITCH SLIDE DIP SPST 0.05A 24V |
4,312 |
|
Datasheet |
206 | Tube | Active | SPST | 5 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.434" (11.02mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
206-7LPSTSWITCH SLIDE DIP SPST 0.05A 24V |
2,174 |
|
Datasheet |
206 | Tube | Active | SPST | 7 | 24VDC | Slide (Standard) | Flush, Recessed | 50mA | - | Gold | 0.299" (7.60mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
|
QHPS06ERDIP SWITCHES / SIP SWITCHES |
4,932 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
193-3MSSWITCH PIANO DIP SPST 0.05A 24V |
1,140 |
|
Datasheet |
193 | Tube | Active | SPST | 3 | 24VDC | Piano | Raised | 50mA | - | Gold | 0.359" (9.12mm) | Surface Mount, Right Angle | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
193-3MSNSWITCH PIANO DIP SPST 0.05A 24V |
1,906 |
|
Datasheet |
193 | Tube | Active | SPST | 3 | 24VDC | Piano | Raised | 50mA | - | Gold | 0.359" (9.12mm) | Surface Mount, Right Angle | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
209-9ESSWITCH SLIDE DIP SPST 0.1A 20V |
1,111 |
|
Datasheet |
209 | Tube | Active | SPST | 9 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
209-9ESDSWITCH SLIDE DIP SPST 0.1A 20V |
2,834 |
|
Datasheet |
209 | Tube | Active | SPST | 9 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
209-9ESFSWITCH SLIDE DIP SPST 0.1A 20V |
1,841 |
|
Datasheet |
209 | Tube | Active | SPST | 9 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
209-9ESFDSWITCH SLIDE DIP SPST 0.1A 20V |
3,700 |
|
Datasheet |
209 | Tube | Active | SPST | 9 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
209-9LPSSWITCH SLIDE DIP SPST 0.1A 20V |
3,981 |
|
Datasheet |
209 | Tube | Active | SPST | 9 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|

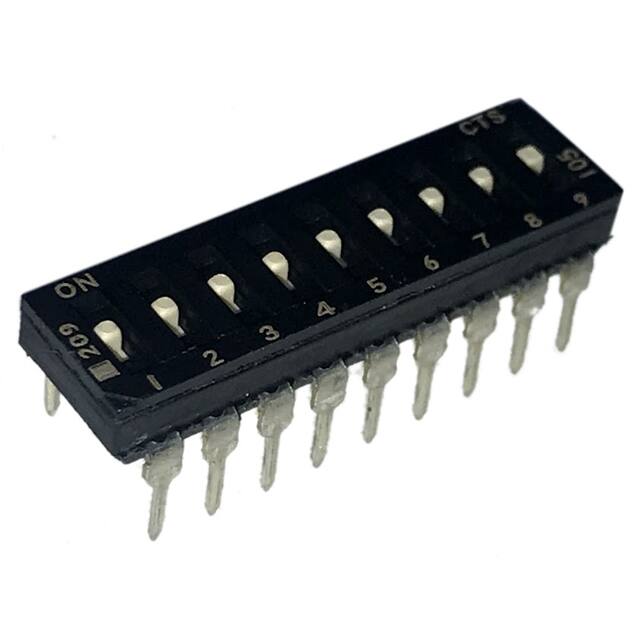

209-9LPSDSWITCH SLIDE DIP SPST 0.1A 20V |
3,804 |
|
Datasheet |
209 | Tube | Active | SPST | 9 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
