| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
210-12ESFDSWITCH SLIDE DIP SPST 0.1A 20V |
3,079 |
|
Datasheet |
210 | Tube | Active | SPST | 12 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
206-7SSWITCH SLIDE DIP SPST 0.05A 24V |
4,550 |
|
Datasheet |
206 | Tube | Active | SPST | 7 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
1825002-6SWITCH STANDARD DIP SPST |
4,512 |
|
Datasheet |
ADF | Bulk | Active | SPST | 4 | - | Standard | Flush, Recessed | - | - | - | - | Through Hole | - | - | - | - | Yes |
|
|
208-1SSWITCH SLIDE DIP SPST 0.05A 24V |
3,911 |
|
Datasheet |
208 | Tube | Active | SPST | 1 | 24VDC | Slide (Standard) | Raised | 50mA | - | Tin | 0.334" (8.48mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
KR03RTSWITCH SLIDE DIP SPST 0.025A 24V |
1,019 |
|
Datasheet |
KR | Tube | Active | SPST | 3 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
KR03ETSWITCH SLIDE DIP SPST 0.025A 24V |
4,362 |
|
Datasheet |
KR | Tube | Active | SPST | 3 | 24VDC | Slide (Standard) | Raised | 25mA | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
DS01-254-S-09BESWITCH SLIDE DIP SPST 0.025A 24V |
1,754 |
|
Datasheet |
DS01-254 | Tube | Active | SPST | 9 | 24VDC | Slide (Standard) | Raised | 25mA | Copper Alloy | Gold | 0.264" (6.70mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
DS02-254-1L-05BESWITCH PIANO DIP SPST 0.025A 24V |
2,685 |
|
Datasheet |
DS02-254 | Tube | Obsolete | SPST | 5 | 24VDC | Piano | Raised | 25mA | Copper Alloy | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
QFPT05L1DDIP SWITCHES / SIP SWITCHES |
3,165 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
209-8LPSTDSWITCH SLIDE DIP SPST 0.1A 20V |
2,770 |
|
Datasheet |
209 | Tube | Active | SPST | 8 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
209-8LPSTFSWITCH SLIDE DIP SPST 0.1A 20V |
3,353 |
|
Datasheet |
209 | Tube | Active | SPST | 8 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
209-8LPSTFDSWITCH SLIDE DIP SPST 0.1A 20V |
3,459 |
|
Datasheet |
209 | Tube | Active | SPST | 8 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
|
209-8MSTSWITCH SLIDE DIP SPST 0.1A 20V |
2,235 |
|
Datasheet |
209 | Tube | Active | SPST | 8 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
209-8MSTDSWITCH SLIDE DIP SPST 0.1A 20V |
3,797 |
|
Datasheet |
209 | Tube | Active | SPST | 8 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
209-8MSTFSWITCH SLIDE DIP SPST 0.1A 20V |
3,283 |
|
Datasheet |
209 | Tube | Active | SPST | 8 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|

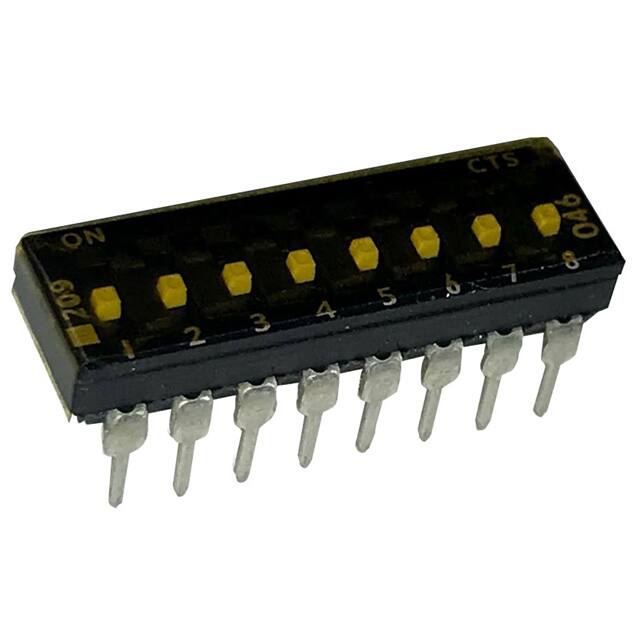

209-8MSTFDSWITCH SLIDE DIP SPST 0.1A 20V |
4,025 |
|
Datasheet |
209 | Tube | Active | SPST | 8 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
206-6LPSTSWITCH SLIDE DIP SPST 0.05A 24V |
1,275 |
|
Datasheet |
206 | Tube | Active | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | 50mA | - | Gold | 0.299" (7.60mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
195-5MSTSWITCH PIANO DIP SPST 0.05A 24V |
1,299 |
|
Datasheet |
195 | Tube | Active | SPST | 5 | 24VDC | Piano | Raised | 50mA | - | Tin | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
|
CHS-01TB2SWITCH SLIDE DIP SPST 0.1A 6V |
1,673 |
|
Datasheet |
CHS | Tape & Reel (TR) | Active | SPST | 1 | 6VDC | Slide (Standard) | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | - | No |
|
|
219-7ESRSWITCH SLIDE DIP SPST 0.1A 20V |
3,468 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 7 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.184" (4.67mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
