| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
219-8LPSSWITCH SLIDE DIP SPST 0.1A 20V |
3,860 |
|
Datasheet |
219 | Tube | Active | SPST | 8 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|

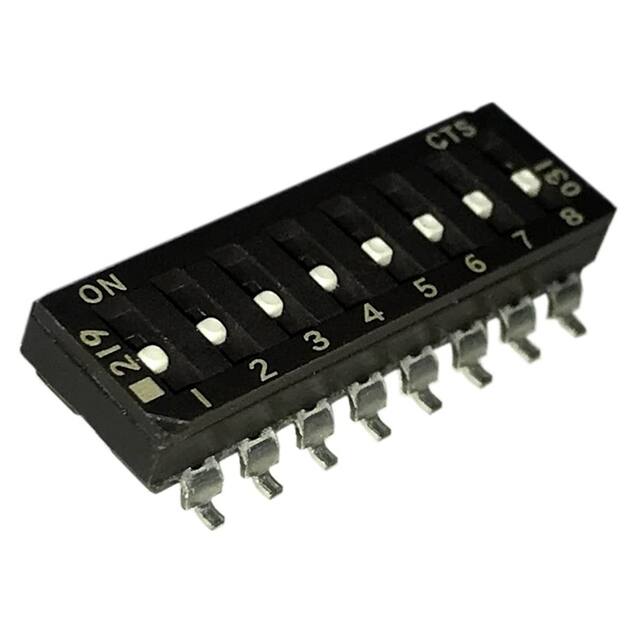

219-8LPSFSWITCH SLIDE DIP SPST 0.1A 20V |
3,011 |
|
Datasheet |
219 | Tube | Active | SPST | 8 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-8MSSWITCH SLIDE DIP SPST 0.1A 20V |
2,478 |
|
Datasheet |
219 | Tube | Active | SPST | 8 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-8MSFSWITCH SLIDE DIP SPST 0.1A 20V |
2,357 |
|
Datasheet |
219 | Tube | Active | SPST | 8 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
194-4MSSWITCH PIANO DIP SPST 0.05A 24V |
3,352 |
|
Datasheet |
194 | Tube | Active | SPST | 4 | 24VDC | Piano | Raised | 50mA | - | Gold | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
194-4MSNSWITCH PIANO DIP SPST 0.05A 24V |
4,691 |
|
Datasheet |
194 | Tube | Active | SPST | 4 | 24VDC | Piano | Raised | 50mA | - | Gold | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
206-5LPSTSWITCH SLIDE DIP SPST 0.05A 24V |
4,397 |
|
Datasheet |
206 | Tube | Active | SPST | 5 | 24VDC | Slide (Standard) | Flush, Recessed | 50mA | - | Gold | 0.299" (7.60mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
218-2LPSTFSWITCH SLIDE DIP SPST 0.025A 24V |
2,914 |
|
Datasheet |
218 | Tube | Active | SPST | 2 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.104" (2.65mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.050" (1.27mm), Half | Epoxy Sealed Terminals, Tape Seal | Yes |
|
ADE04SSWITCH SLIDE DIP SPST 0.1A 24V |
4,379 |
|
Datasheet |
ADE | Tube | Obsolete | SPST | 4 | 24VDC | Slide (Standard) | Raised | 100mA | Copper Alloy | Gold | 0.219" (5.55mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
ADF04SSWITCH SLIDE DIP SPST 0.025A 24V |
4,153 |
|
Datasheet |
ADF | Tube | Obsolete | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.177" (4.50mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
210-12LPSSWITCH SLIDE DIP SPST 0.1A 20V |
2,627 |
|
Datasheet |
210 | Tube | Active | SPST | 12 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
210-12ESSWITCH SLIDE DIP SPST 0.1A 20V |
3,677 |
|
Datasheet |
210 | Tube | Active | SPST | 12 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
210-12LPSFSWITCH SLIDE DIP SPST 0.1A 20V |
1,505 |
|
Datasheet |
210 | Tube | Active | SPST | 12 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
210-12MSFSWITCH SLIDE DIP SPST 0.1A 20V |
3,495 |
|
Datasheet |
210 | Tube | Active | SPST | 12 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
210-12ESFSWITCH SLIDE DIP SPST 0.1A 20V |
3,958 |
|
Datasheet |
210 | Tube | Active | SPST | 12 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
210-12LPSDSWITCH SLIDE DIP SPST 0.1A 20V |
4,309 |
|
Datasheet |
210 | Tube | Active | SPST | 12 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
210-12MSDSWITCH SLIDE DIP SPST 0.1A 20V |
4,670 |
|
Datasheet |
210 | Tube | Active | SPST | 12 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
210-12ESDSWITCH SLIDE DIP SPST 0.1A 20V |
1,424 |
|
Datasheet |
210 | Tube | Active | SPST | 12 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
210-12LPSFDSWITCH SLIDE DIP SPST 0.1A 20V |
4,111 |
|
Datasheet |
210 | Tube | Active | SPST | 12 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
210-12MSFDSWITCH SLIDE DIP SPST 0.1A 20V |
3,282 |
|
Datasheet |
210 | Tube | Active | SPST | 12 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
