| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

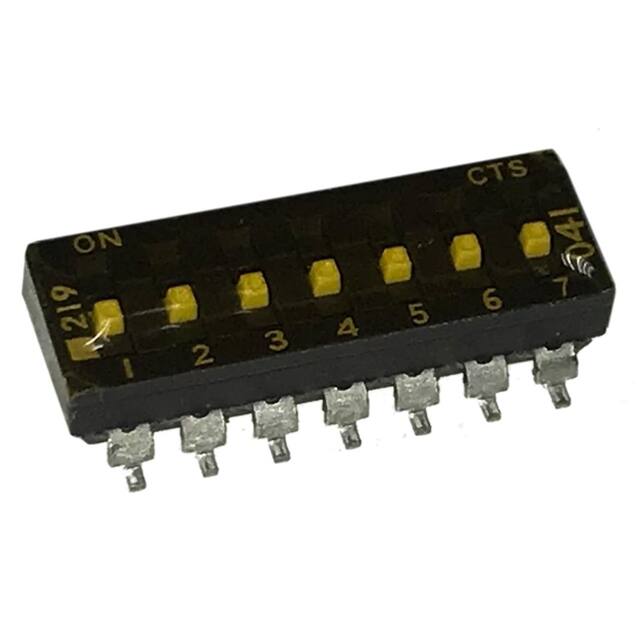

219-7MSTFSWITCH SLIDE DIP SPST 0.1A 20V |
2,071 |
|
Datasheet |
219 | Tube | Active | SPST | 7 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
218-2LPSSWITCH SLIDE DIP SPST 0.025A 24V |
3,015 |
|
Datasheet |
218 | Tube | Active | SPST | 2 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.104" (2.65mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.050" (1.27mm), Half | Epoxy Sealed Terminals | No |
|
218-2LPSFSWITCH SLIDE DIP SPST 0.025A 24V |
3,861 |
|
Datasheet |
218 | Tube | Active | SPST | 2 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.104" (2.65mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.050" (1.27mm), Half | Epoxy Sealed Terminals | No |
|
ADF03STSWITCH SLIDE DIP SPST 0.025A 24V |
1,262 |
|
Datasheet |
ADF | Tube | Obsolete | SPST | 3 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.177" (4.50mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
|
204-3SSWITCH SLIDE DIP SPST 0.05A 24V |
1,727 |
|
Datasheet |
204 | Tube | Active | SPST | 3 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.394" (10.01mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
208-9LPSTSWITCH SLIDE DIP SPST 0.05A 24V |
3,850 |
|
Datasheet |
208 | Tube | Active | SPST | 9 | 24VDC | Slide (Standard) | Flush, Recessed | 50mA | - | Tin | 0.299" (7.60mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
|
208-9STSWITCH SLIDE DIP SPST 0.05A 24V |
1,069 |
|
Datasheet |
208 | Tube | Active | SPST | 9 | 24VDC | Slide (Standard) | Raised | 50mA | - | Tin | 0.334" (8.48mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
|
KP03RTSWITCH PIANO DIP SPST 0.025A 24V |
4,794 |
|
Datasheet |
KP | Tube | Active | SPST | 3 | 24VDC | Piano | Flush, Recessed | 25mA | Phosphor Bronze | Gold | 0.374" (9.50mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
KP03ETSWITCH PIANO DIP SPST 0.025A 24V |
3,766 |
|
Datasheet |
KP | Tube | Active | SPST | 3 | 24VDC | Piano | Raised | 25mA | Phosphor Bronze | Gold | 0.374" (9.50mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
CJS-1201TA1SWITCH SLIDE SPDT 100MA 6V |
3,446 |
|
Datasheet |
CJS | Tape & Reel (TR) | Active | SPDT | - | - | Flush | - | 100mA | Copper Alloy | Gold | - | Surface Mount | J Lead | -40°C ~ 85°C | - | - | - |
|
CJS-1201TB1SWITCH SLIDE SPDT 100MA 6V |
4,935 |
|
Datasheet |
CJS | Tape & Reel (TR) | Active | SPDT | - | - | Flush | - | 100mA | Copper Alloy | Gold | - | Surface Mount | Gull Wing | -40°C ~ 85°C | - | - | - |
|
219-6LPSTJSWITCH SLIDE DIP SPST 0.1A 20V |
1,335 |
|
Datasheet |
219 | Tube | Active | SPST | 6 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
219-6LPSTJFSWITCH SLIDE DIP SPST 0.1A 20V |
2,871 |
|
Datasheet |
219 | Tube | Active | SPST | 6 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|

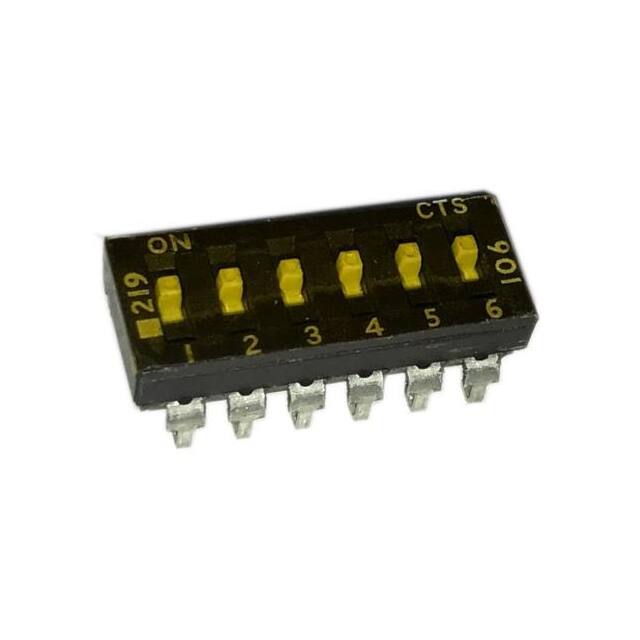

219-6MSTJSWITCH SLIDE DIP SPST 0.1A 20V |
1,350 |
|
Datasheet |
219 | Tube | Active | SPST | 6 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
219-6MSTJFSWITCH SLIDE DIP SPST 0.1A 20V |
1,138 |
|
Datasheet |
219 | Tube | Active | SPST | 6 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
|
206-5ESWITCH SLIDE DIP SPST 0.05A 24V |
4,639 |
|
Datasheet |
206 | Tube | Active | SPST | 5 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.434" (11.02mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
KAJ06LGGRSWITCH SLIDE DIP SPST 0.025A 24V |
2,784 |
|
Datasheet |
KAJ | Tape & Reel (TR) | Obsolete | SPST | 6 | 24VDC | Slide (Standard) | Raised | 25mA | Copper Alloy | Gold | 0.163" (4.15mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
KP02RTSWITCH PIANO DIP SPST 0.025A 24V |
3,001 |
|
Datasheet |
KP | Tube | Active | SPST | 2 | 24VDC | Piano | Flush, Recessed | 25mA | Phosphor Bronze | Gold | 0.374" (9.50mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
KP02ETSWITCH PIANO DIP SPST 0.025A 24V |
1,654 |
|
Datasheet |
KP | Tube | Active | SPST | 2 | 24VDC | Piano | Raised | 25mA | Phosphor Bronze | Gold | 0.374" (9.50mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
209-8ESSWITCH SLIDE DIP SPST 0.1A 20V |
2,270 |
|
Datasheet |
209 | Tube | Active | SPST | 8 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
