| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
209-8ESDSWITCH SLIDE DIP SPST 0.1A 20V |
1,387 |
|
Datasheet |
209 | Tube | Active | SPST | 8 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
209-8ESFSWITCH SLIDE DIP SPST 0.1A 20V |
3,126 |
|
Datasheet |
209 | Tube | Active | SPST | 8 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
209-8ESFDSWITCH SLIDE DIP SPST 0.1A 20V |
2,469 |
|
Datasheet |
209 | Tube | Active | SPST | 8 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
209-8LPSSWITCH SLIDE DIP SPST 0.1A 20V |
1,966 |
|
Datasheet |
209 | Tube | Active | SPST | 8 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
209-8LPSDSWITCH SLIDE DIP SPST 0.1A 20V |
1,425 |
|
Datasheet |
209 | Tube | Active | SPST | 8 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
209-8LPSFSWITCH SLIDE DIP SPST 0.1A 20V |
4,229 |
|
Datasheet |
209 | Tube | Active | SPST | 8 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
209-8LPSFDSWITCH SLIDE DIP SPST 0.1A 20V |
3,869 |
|
Datasheet |
209 | Tube | Active | SPST | 8 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
209-8MSDSWITCH SLIDE DIP SPST 0.1A 20V |
1,658 |
|
Datasheet |
209 | Tube | Active | SPST | 8 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|

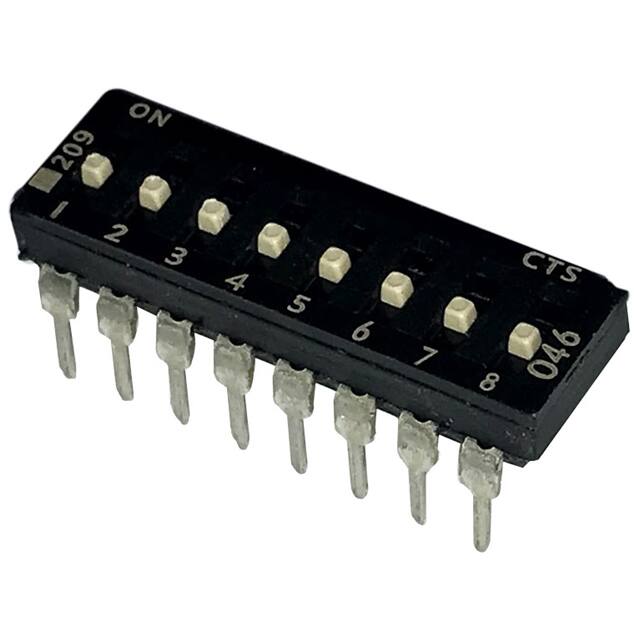

209-8MSFSWITCH SLIDE DIP SPST 0.1A 20V |
3,684 |
|
Datasheet |
209 | Tube | Active | SPST | 8 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
209-8MSFDSWITCH SLIDE DIP SPST 0.1A 20V |
4,445 |
|
Datasheet |
209 | Tube | Active | SPST | 8 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
193-2MSNSWITCH PIANO DIP SPST 0.05A 24V |
2,177 |
|
Datasheet |
193 | Tube | Active | SPST | 2 | 24VDC | Piano | Raised | 50mA | - | Gold | 0.359" (9.12mm) | Surface Mount, Right Angle | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
206-121SWITCH SLIDE DIP SPDT 0.05A 24V |
4,547 |
|
Datasheet |
206 | Tube | Active | SPDT | 1 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
204-2SRSWITCH SLIDE DIP SPST 0.05A 24V |
3,208 |
|
Datasheet |
204 | Tape & Reel (TR) | Active | SPST | 2 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.394" (10.01mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
206-211SSWITCH SLIDE DIP DPST 0.05A 24V |
1,396 |
|
Datasheet |
206 | Tube | Active | DPST | 1 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-5LPSTJRSWITCH SLIDE DIP SPST 0.1A 20V |
4,358 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 5 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
219-5LPSTJRFSWITCH SLIDE DIP SPST 0.1A 20V |
4,601 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 5 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
219-5MSTJRSWITCH SLIDE DIP SPST 0.1A 20V |
4,935 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 5 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
219-5MSTJRFSWITCH SLIDE DIP SPST 0.1A 20V |
1,869 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 5 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
219-8ESSWITCH SLIDE DIP SPST 0.1A 20V |
1,540 |
|
Datasheet |
219 | Tube | Active | SPST | 8 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.184" (4.67mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-8ESFSWITCH SLIDE DIP SPST 0.1A 20V |
1,096 |
|
Datasheet |
219 | Tube | Active | SPST | 8 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.184" (4.67mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
