| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
209-7MSTDSWITCH SLIDE DIP SPST 0.1A 20V |
4,341 |
|
Datasheet |
209 | Tube | Active | SPST | 7 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
|
209-7MSTFSWITCH SLIDE DIP SPST 0.1A 20V |
3,431 |
|
Datasheet |
209 | Tube | Active | SPST | 7 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
|
209-7MSTFDSWITCH SLIDE DIP SPST 0.1A 20V |
3,135 |
|
Datasheet |
209 | Tube | Active | SPST | 7 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|

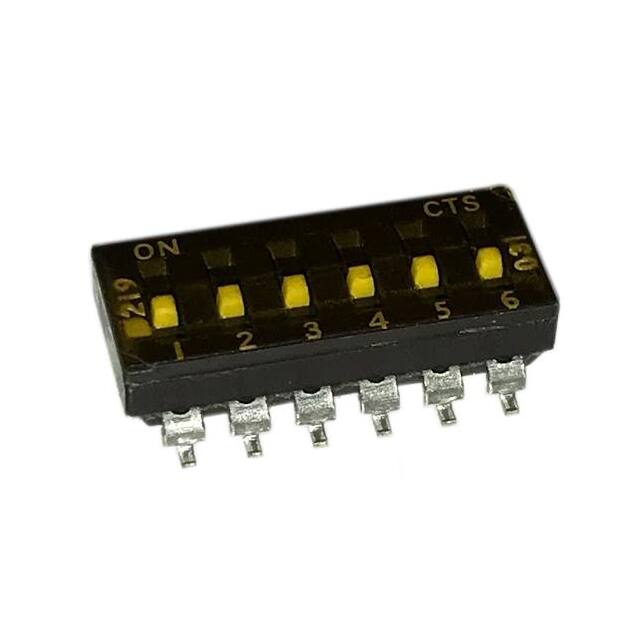

219-6MSTRFSWITCH SLIDE DIP SPST 0.1A 20V |
4,382 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 6 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
|
KG06ETSWITCH SLIDE DIP SPST 0.025A 24V |
3,505 |
|
Datasheet |
KG | Tube | Active | SPST | 6 | 24VDC | Slide (Standard) | Raised | 25mA | Phosphor Bronze | Gold | 0.258" (6.55mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
206-8SSWITCH SLIDE DIP SPST 0.05A 24V |
3,380 |
|
Datasheet |
206 | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
KP03RSWITCH PIANO DIP SPST 0.025A 24V |
1,384 |
|
Datasheet |
KP | Tube | Active | SPST | 3 | 24VDC | Piano | Flush, Recessed | 25mA | Phosphor Bronze | Gold | 0.374" (9.50mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
KR01ETSWITCH SLIDE DIP SPST 0.025A 24V |
3,781 |
|
Datasheet |
KR | Tube | Active | SPST | 1 | 24VDC | Slide (Standard) | Raised | 25mA | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
KR01RTSWITCH SLIDE DIP SPST 0.025A 24V |
1,754 |
|
Datasheet |
KR | Tube | Active | SPST | 1 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|

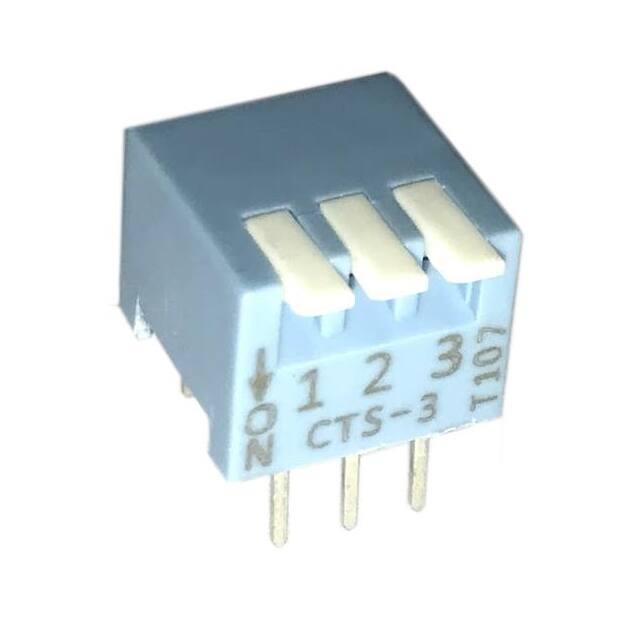

194-3MSSWITCH PIANO DIP SPST 0.05A 24V |
4,429 |
|
Datasheet |
194 | Tube | Active | SPST | 3 | 24VDC | Piano | Raised | 50mA | - | Gold | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|

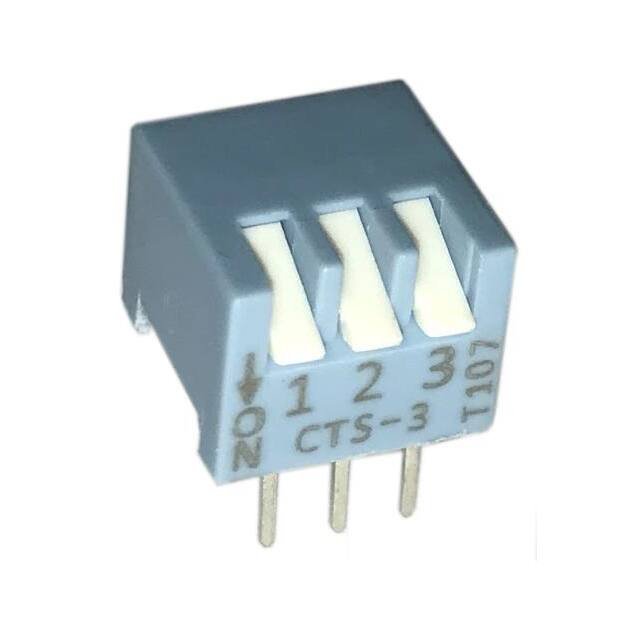

194-3MSNSWITCH PIANO DIP SPST 0.05A 24V |
3,881 |
|
Datasheet |
194 | Tube | Active | SPST | 3 | 24VDC | Piano | Raised | 50mA | - | Gold | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
KAJ04TGGRSWITCH SLIDE DIP SPST 0.025A 24V |
1,120 |
|
Datasheet |
KAJ | Tape & Reel (TR) | Obsolete | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.140" (3.55mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
|
KAJ04THGRSWITCH SLIDE DIP SPST 0.025A 24V |
4,959 |
|
Datasheet |
KAJ | Tape & Reel (TR) | Obsolete | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.142" (3.60mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
|
219-5ESJRSWITCH SLIDE DIP SPST 0.1A 20V |
4,434 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 5 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.224" (5.70mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
219-5ESJRFSWITCH SLIDE DIP SPST 0.1A 20V |
2,295 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 5 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.224" (5.70mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-5LPSJRSWITCH SLIDE DIP SPST 0.1A 20V |
1,171 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 5 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-5LPSJRFSWITCH SLIDE DIP SPST 0.1A 20V |
1,973 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 5 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-5MSJRSWITCH SLIDE DIP SPST 0.1A 20V |
1,350 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 5 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-5MSJRFSWITCH SLIDE DIP SPST 0.1A 20V |
3,833 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 5 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-7LPSTFSWITCH SLIDE DIP SPST 0.1A 20V |
2,114 |
|
Datasheet |
219 | Tube | Active | SPST | 7 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
