| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
210-10MSTSWITCH SLIDE DIP SPST 0.1A 20V |
4,872 |
|
Datasheet |
210 | Tube | Active | SPST | 10 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
210-10LPSTFSWITCH SLIDE DIP SPST 0.1A 20V |
2,463 |
|
Datasheet |
210 | Tube | Active | SPST | 10 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
210-10MSTFSWITCH SLIDE DIP SPST 0.1A 20V |
4,701 |
|
Datasheet |
210 | Tube | Active | SPST | 10 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
|
210-10LPSTDSWITCH SLIDE DIP SPST 0.1A 20V |
3,118 |
|
Datasheet |
210 | Tube | Active | SPST | 10 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
210-10MSTDSWITCH SLIDE DIP SPST 0.1A 20V |
4,486 |
|
Datasheet |
210 | Tube | Active | SPST | 10 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
|
210-10LPSTFDSWITCH SLIDE DIP SPST 0.1A 20V |
4,077 |
|
Datasheet |
210 | Tube | Active | SPST | 10 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
210-10MSTFDSWITCH SLIDE DIP SPST 0.1A 20V |
1,925 |
|
Datasheet |
210 | Tube | Active | SPST | 10 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
|
ADE02SSWITCH SLIDE DIP SPST 0.1A 24V |
4,398 |
|
Datasheet |
ADE | Tube | Obsolete | SPST | 2 | 24VDC | Slide (Standard) | Raised | 100mA | Copper Alloy | Gold | 0.219" (5.55mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
208-7LPSTSWITCH SLIDE DIP SPST 0.05A 24V |
3,214 |
|
Datasheet |
208 | Tube | Active | SPST | 7 | 24VDC | Slide (Standard) | Flush, Recessed | 50mA | - | Tin | 0.299" (7.60mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
|
208-7STSWITCH SLIDE DIP SPST 0.05A 24V |
1,875 |
|
Datasheet |
208 | Tube | Active | SPST | 7 | 24VDC | Slide (Standard) | Raised | 50mA | - | Tin | 0.334" (8.48mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
206-3LPSTSWITCH SLIDE DIP SPST 0.05A 24V |
2,733 |
|
Datasheet |
206 | Tube | Active | SPST | 3 | 24VDC | Slide (Standard) | Flush, Recessed | 50mA | - | Gold | 0.299" (7.60mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
|
206-4LPSTSWITCH SLIDE DIP SPST 0.05A 24V |
3,040 |
|
Datasheet |
206 | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 50mA | - | Gold | 0.299" (7.60mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
208-9SSWITCH SLIDE DIP SPST 0.05A 24V |
2,002 |
|
Datasheet |
208 | Tube | Active | SPST | 9 | 24VDC | Slide (Standard) | Raised | 50mA | - | Tin | 0.334" (8.48mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
1-1825059-5SWITCH STANDARD DIP SPST |
3,892 |
|
Datasheet |
ADF | Tube | Active | SPST | 4 | - | Standard | Flush, Recessed | - | - | - | - | Surface Mount | - | - | - | - | Yes |
|
|
206-211SWITCH SLIDE DIP DPST 0.05A 24V |
4,453 |
|
Datasheet |
206 | Tube | Active | DPST | 1 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
219-5LPSTJSWITCH SLIDE DIP SPST 0.1A 20V |
1,589 |
|
Datasheet |
219 | Tube | Active | SPST | 5 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
219-5LPSTJFSWITCH SLIDE DIP SPST 0.1A 20V |
1,588 |
|
Datasheet |
219 | Tube | Active | SPST | 5 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
219-5MSTJSWITCH SLIDE DIP SPST 0.1A 20V |
2,173 |
|
Datasheet |
219 | Tube | Active | SPST | 5 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|

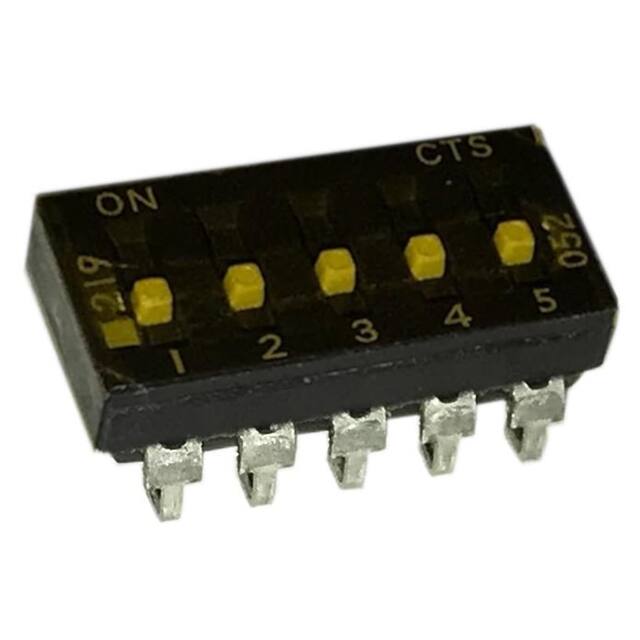

219-5MSTJFSWITCH SLIDE DIP SPST 0.1A 20V |
1,102 |
|
Datasheet |
219 | Tube | Active | SPST | 5 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
206-3ESSWITCH SLIDE DIP SPST 0.05A 24V |
1,991 |
|
Datasheet |
206 | Tube | Active | SPST | 3 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.434" (11.02mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
