| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
QFPS02LRDIP SWITCHES / SIP SWITCHES |
1,650 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
219-4LPSTJRSWITCH SLIDE DIP SPST 0.1A 20V |
1,275 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 4 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
219-4LPSTJRFSWITCH SLIDE DIP SPST 0.1A 20V |
4,429 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 4 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
219-4MSTJRSWITCH SLIDE DIP SPST 0.1A 20V |
1,318 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 4 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
219-4MSTJRFSWITCH SLIDE DIP SPST 0.1A 20V |
4,304 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 4 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
|
KAS1101ESwitches |
4,568 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
KAJ04SGGRSWITCH SLIDE DIP SPST 0.025A 24V |
4,929 |
|
Datasheet |
KAJ | Tape & Reel (TR) | Obsolete | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.140" (3.55mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
KR02RTSWITCH SLIDE DIP SPST 0.025A 24V |
1,939 |
|
Datasheet |
KR | Tube | Active | SPST | 2 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
209-7MSSWITCH SLIDE DIP SPST 0.1A 20V |
1,907 |
|
Datasheet |
209 | Tube | Active | SPST | 7 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
209-7ESSWITCH SLIDE DIP SPST 0.1A 20V |
2,722 |
|
Datasheet |
209 | Tube | Active | SPST | 7 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
209-7ESDSWITCH SLIDE DIP SPST 0.1A 20V |
2,889 |
|
Datasheet |
209 | Tube | Active | SPST | 7 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
209-7ESFSWITCH SLIDE DIP SPST 0.1A 20V |
1,279 |
|
Datasheet |
209 | Tube | Active | SPST | 7 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
209-7ESFDSWITCH SLIDE DIP SPST 0.1A 20V |
4,731 |
|
Datasheet |
209 | Tube | Active | SPST | 7 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
209-7LPSSWITCH SLIDE DIP SPST 0.1A 20V |
2,815 |
|
Datasheet |
209 | Tube | Active | SPST | 7 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
209-7LPSDSWITCH SLIDE DIP SPST 0.1A 20V |
2,883 |
|
Datasheet |
209 | Tube | Active | SPST | 7 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|

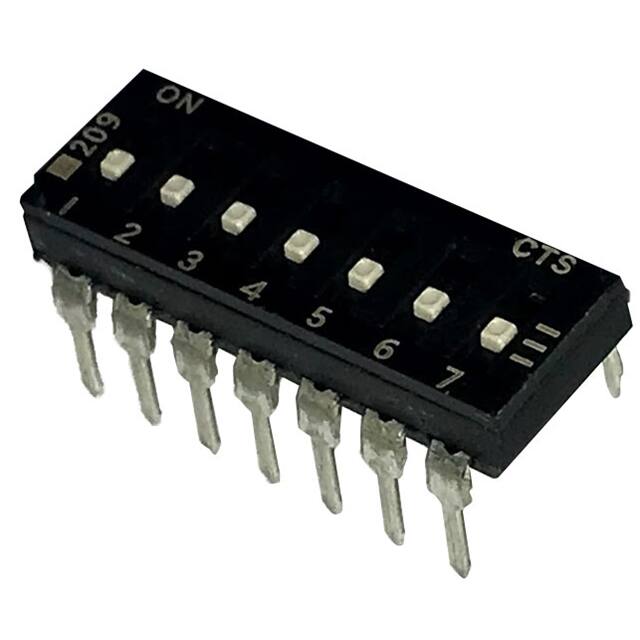

209-7LPSFSWITCH SLIDE DIP SPST 0.1A 20V |
4,971 |
|
Datasheet |
209 | Tube | Active | SPST | 7 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
209-7LPSFDSWITCH SLIDE DIP SPST 0.1A 20V |
3,207 |
|
Datasheet |
209 | Tube | Active | SPST | 7 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
209-7MSDSWITCH SLIDE DIP SPST 0.1A 20V |
4,121 |
|
Datasheet |
209 | Tube | Active | SPST | 7 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
209-7MSFSWITCH SLIDE DIP SPST 0.1A 20V |
1,987 |
|
Datasheet |
209 | Tube | Active | SPST | 7 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
209-7MSFDSWITCH SLIDE DIP SPST 0.1A 20V |
4,569 |
|
Datasheet |
209 | Tube | Active | SPST | 7 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
