| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
QFPS08LDIP SWITCHES / SIP SWITCHES |
2,416 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
KT01RTHSWITCH SLIDE DIP SPST 0.025A 24V |
2,545 |
|
Datasheet |
KT | Tube | Active | SPST | 1 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.144" (3.65mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
KT01ETHSWITCH SLIDE DIP SPST 0.025A 24V |
4,475 |
|
Datasheet |
KT | Tube | Active | SPST | 1 | 24VDC | Slide (Standard) | Raised | 25mA | Beryllium Copper | Gold | 0.167" (4.25mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
QHPS04ERDIP SWITCHES / SIP SWITCHES |
1,742 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
219-5ESJSWITCH SLIDE DIP SPST 0.1A 20V |
2,285 |
|
Datasheet |
219 | Tube | Active | SPST | 5 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.224" (5.70mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
219-5ESJFSWITCH SLIDE DIP SPST 0.1A 20V |
1,198 |
|
Datasheet |
219 | Tube | Active | SPST | 5 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.224" (5.70mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-5LPSJSWITCH SLIDE DIP SPST 0.1A 20V |
2,136 |
|
Datasheet |
219 | Tube | Active | SPST | 5 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-5LPSJFSWITCH SLIDE DIP SPST 0.1A 20V |
2,087 |
|
Datasheet |
219 | Tube | Active | SPST | 5 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|

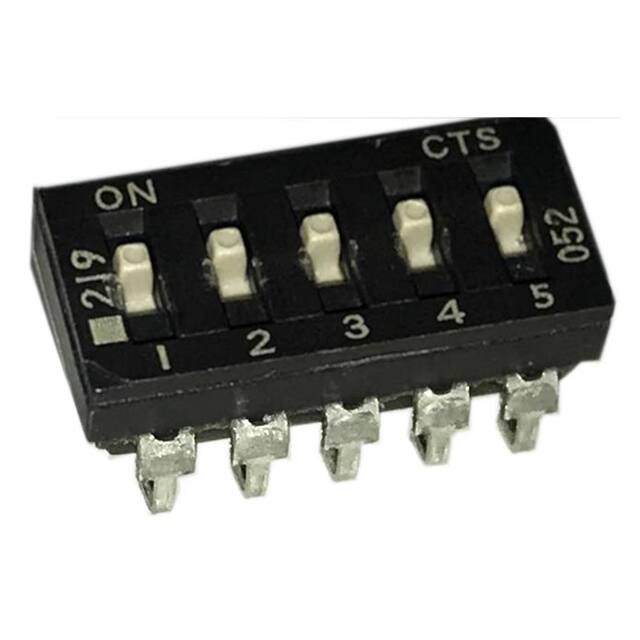

219-5MSJSWITCH SLIDE DIP SPST 0.1A 20V |
3,029 |
|
Datasheet |
219 | Tube | Active | SPST | 5 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-5MSJFSWITCH SLIDE DIP SPST 0.1A 20V |
3,885 |
|
Datasheet |
219 | Tube | Active | SPST | 5 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
.jpg)
|
219-5MSTRSWITCH SLIDE DIP SPST 0.1A 20V |
1,338 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 5 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
219-5MSTRFSWITCH SLIDE DIP SPST 0.1A 20V |
2,033 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 5 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
|
KAJ03TGGRSWITCH SLIDE DIP SPST 0.025A 24V |
1,153 |
|
Datasheet |
KAJ | Tape & Reel (TR) | Obsolete | SPST | 3 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.140" (3.55mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
219-4ESJRSWITCH SLIDE DIP SPST 0.1A 20V |
2,667 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 4 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.224" (5.70mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-4ESJRFSWITCH SLIDE DIP SPST 0.1A 20V |
4,878 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 4 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.224" (5.70mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-4LPSJRSWITCH SLIDE DIP SPST 0.1A 20V |
3,387 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 4 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-4LPSJRFSWITCH SLIDE DIP SPST 0.1A 20V |
1,304 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 4 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-4MSJRSWITCH SLIDE DIP SPST 0.1A 20V |
3,357 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 4 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-4MSJRFSWITCH SLIDE DIP SPST 0.1A 20V |
3,874 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 4 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
210-10LPSTSWITCH SLIDE DIP SPST 0.1A 20V |
4,298 |
|
Datasheet |
210 | Tube | Active | SPST | 10 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
