| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
219-6ESRSWITCH SLIDE DIP SPST 0.1A 20V |
3,888 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 6 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.184" (4.67mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
219-6ESRFSWITCH SLIDE DIP SPST 0.1A 20V |
4,730 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 6 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.184" (4.67mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-6LPSRSWITCH SLIDE DIP SPST 0.1A 20V |
2,988 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 6 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-6LPSRFSWITCH SLIDE DIP SPST 0.1A 20V |
3,752 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 6 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-6MSRSWITCH SLIDE DIP SPST 0.1A 20V |
4,796 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 6 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-6MSRFSWITCH SLIDE DIP SPST 0.1A 20V |
3,722 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 6 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
KT04ETHSWITCH SLIDE DIP SPST 0.025A 24V |
3,225 |
|
Datasheet |
KT | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Raised | 25mA | Beryllium Copper | Gold | 0.167" (4.25mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
206-5SSWITCH SLIDE DIP SPST 0.05A 24V |
3,958 |
|
Datasheet |
206 | Tube | Active | SPST | 5 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
RTE0200G05SWITCH ROTARY DIP SPDT 0.1A 50V |
1,117 |
|
Datasheet |
RTE | Tape & Reel (TR) | Obsolete | SPDT | 2 | 50VDC | Rotary for Tool | Flush, Recessed | 100mA | Bronze | Silver | 0.168" (4.27mm) | Surface Mount | Gull Wing | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
KAS1102RTSWITCH SLIDE DIP SPST 0.025A 24V |
4,713 |
|
Datasheet |
KAS | Tube | Active | SPST | 2 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Phosphor Bronze | Gold | 0.236" (6.00mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
195-6MSSWITCH PIANO DIP SPST 0.05A 24V |
3,211 |
|
Datasheet |
195 | Tube | Active | SPST | 6 | 24VDC | Piano | Raised | 50mA | - | Tin | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
195-6MSNSWITCH PIANO DIP SPST 0.05A 24V |
4,918 |
|
Datasheet |
195 | Tube | Active | SPST | 6 | 24VDC | Piano | Raised | 50mA | - | Tin | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
219-7ESSWITCH SLIDE DIP SPST 0.1A 20V |
1,958 |
|
Datasheet |
219 | Tube | Active | SPST | 7 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.184" (4.67mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
219-7ESFSWITCH SLIDE DIP SPST 0.1A 20V |
2,037 |
|
Datasheet |
219 | Tube | Active | SPST | 7 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.184" (4.67mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-7LPSSWITCH SLIDE DIP SPST 0.1A 20V |
3,310 |
|
Datasheet |
219 | Tube | Active | SPST | 7 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-7LPSFSWITCH SLIDE DIP SPST 0.1A 20V |
1,439 |
|
Datasheet |
219 | Tube | Active | SPST | 7 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-7MSSWITCH SLIDE DIP SPST 0.1A 20V |
4,264 |
|
Datasheet |
219 | Tube | Active | SPST | 7 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|

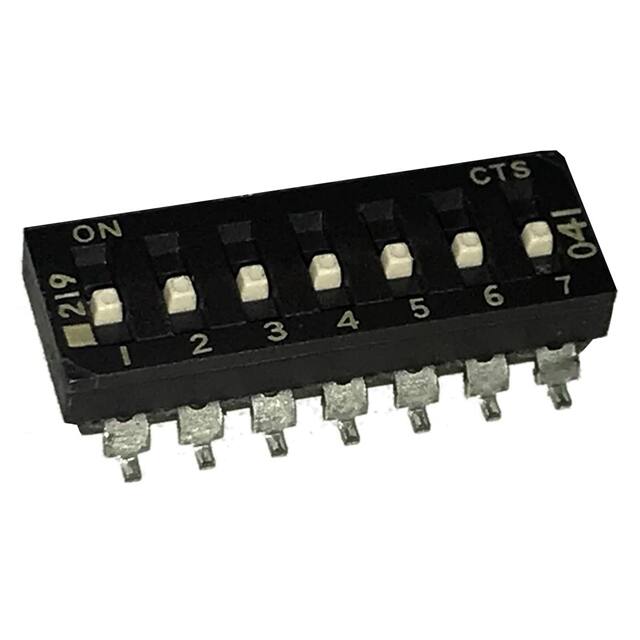

219-7MSFSWITCH SLIDE DIP SPST 0.1A 20V |
4,006 |
|
Datasheet |
219 | Tube | Active | SPST | 7 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
206-4ESSWITCH SLIDE DIP SPST 0.05A 24V |
2,238 |
|
Datasheet |
206 | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.434" (11.02mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
DS04-254-2S-06BKSWITCH SLIDE DIP SPST 0.025A 24V |
2,172 |
|
Datasheet |
DS04-254 | Tube | Active | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.144" (3.66mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
