| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
209-9LPSFSWITCH SLIDE DIP SPST 0.1A 20V |
2,080 |
|
Datasheet |
209 | Tube | Active | SPST | 9 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
209-9LPSFDSWITCH SLIDE DIP SPST 0.1A 20V |
1,985 |
|
Datasheet |
209 | Tube | Active | SPST | 9 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
209-9MSDSWITCH SLIDE DIP SPST 0.1A 20V |
2,689 |
|
Datasheet |
209 | Tube | Active | SPST | 9 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
209-9MSFSWITCH SLIDE DIP SPST 0.1A 20V |
2,488 |
|
Datasheet |
209 | Tube | Active | SPST | 9 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
209-9MSFDSWITCH SLIDE DIP SPST 0.1A 20V |
3,375 |
|
Datasheet |
209 | Tube | Active | SPST | 9 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
206-121SSWITCH SLIDE DIP SPDT 0.05A 24V |
4,409 |
|
Datasheet |
206 | Tube | Active | SPDT | 1 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
206-4RASWITCH SLIDE DIP SPST 0.05A 24V |
2,923 |
|
Datasheet |
206RA | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
KAJ05TGGRSWITCH SLIDE DIP SPST 0.025A 24V |
4,389 |
|
Datasheet |
KAJ | Tape & Reel (TR) | Obsolete | SPST | 5 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.140" (3.55mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
219-7LPSTJSWITCH SLIDE DIP SPST 0.1A 20V |
4,175 |
|
Datasheet |
219 | Tube | Active | SPST | 7 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
219-7LPSTJFSWITCH SLIDE DIP SPST 0.1A 20V |
2,710 |
|
Datasheet |
219 | Tube | Active | SPST | 7 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
219-7MSTJSWITCH SLIDE DIP SPST 0.1A 20V |
4,023 |
|
Datasheet |
219 | Tube | Active | SPST | 7 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
219-7MSTJFSWITCH SLIDE DIP SPST 0.1A 20V |
2,987 |
|
Datasheet |
219 | Tube | Active | SPST | 7 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
218-4LPSRSWITCH SLIDE DIP SPST 0.025A 24V |
1,866 |
|
Datasheet |
218 | Tape & Reel (TR) | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.104" (2.65mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.050" (1.27mm), Half | Epoxy Sealed Terminals | No |
|

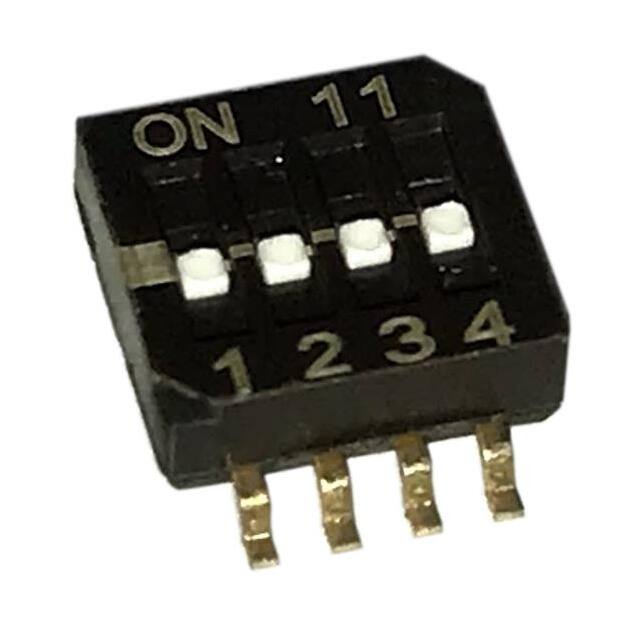

218-4LPSRFSWITCH SLIDE DIP SPST 0.025A 24V |
3,370 |
|
Datasheet |
218 | Tape & Reel (TR) | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.104" (2.65mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.050" (1.27mm), Half | Epoxy Sealed Terminals | No |
|
|
204-6SSWITCH SLIDE DIP SPST 0.05A 24V |
2,253 |
|
Datasheet |
204 | Tube | Active | SPST | 6 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.394" (10.01mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
206-121LPSTSWITCH SLIDE DIP SPDT 0.05A 24V |
4,153 |
|
Datasheet |
206 | Tube | Active | SPDT | 1 | 24VDC | Slide (Standard) | Flush, Recessed | 50mA | - | Gold | 0.299" (7.60mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
KR04RTSWITCH SLIDE DIP SPST 0.025A 24V |
1,008 |
|
Datasheet |
KR | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
KJ02RXTSWITCH SLIDE DIP SPST 0.025A 24V |
3,580 |
|
Datasheet |
KJ | Tube | Active | SPST | 2 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.138" (3.50mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
KP05RSWITCH PIANO DIP SPST 0.025A 24V |
1,876 |
|
Datasheet |
KP | Tube | Active | SPST | 5 | 24VDC | Piano | Flush, Recessed | 25mA | Phosphor Bronze | Gold | 0.374" (9.50mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
KJ02EXTSWITCH SLIDE DIP SPST 0.025A 24V |
1,642 |
|
Datasheet |
KJ | Tube | Active | SPST | 2 | 24VDC | Slide (Standard) | Raised | 25mA | Beryllium Copper | Gold | 0.161" (4.10mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
