| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADE05SSWITCH SLIDE DIP SPST 0.1A 24V |
2,849 |
|
Datasheet |
ADE | Tube | Obsolete | SPST | 5 | 24VDC | Slide (Standard) | Raised | 100mA | Copper Alloy | Gold | 0.219" (5.55mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
KAE05SGGT-1ON-2345OFFSWITCH SLIDE DIP SPST 0.025A 24V |
1,180 |
|
Datasheet |
KAE | Tube | Active | SPST | 5 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper | Gold | 0.148" (3.75mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
219-9LPSTFSWITCH SLIDE DIP SPST 0.1A 20V |
4,350 |
|
Datasheet |
219 | Tube | Active | SPST | 9 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|

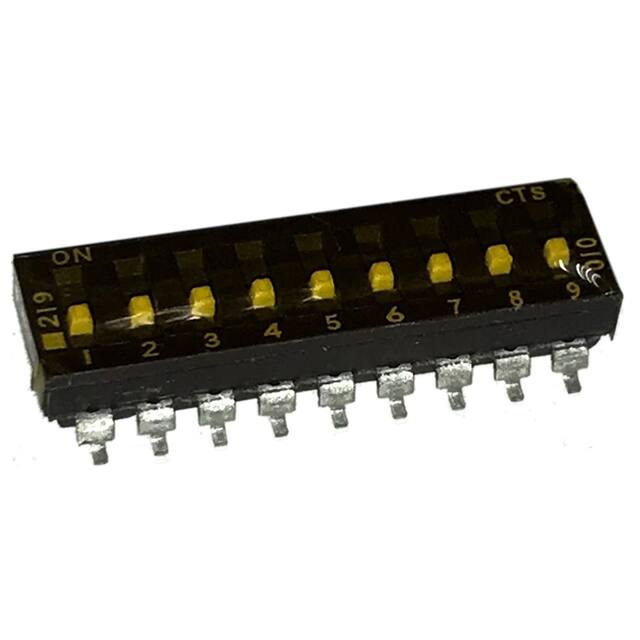

219-9MSTFSWITCH SLIDE DIP SPST 0.1A 20V |
1,213 |
|
Datasheet |
219 | Tube | Active | SPST | 9 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
|
208-8RASTSWITCH SLIDE DIP SPST 0.05A 24V |
4,013 |
|
Datasheet |
208RA | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Raised | 50mA | - | Tin | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
206-10SSWITCH SLIDE DIP SPST 0.05A 24V |
3,429 |
|
Datasheet |
206 | Tube | Active | SPST | 10 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
CJS-1200A1SWITCH SLIDE SPDT 100MA 6V |
4,103 |
|
Datasheet |
CJS | Bulk | Active | SPDT | - | - | Flush | - | 100mA | Copper Alloy | Gold | - | Surface Mount | J Lead | -40°C ~ 85°C | - | - | - |
|
|
CJS-1200B1SWITCH SLIDE SPDT 100MA 6V |
1,232 |
|
Datasheet |
CJS | Bulk | Active | SPDT | - | - | Flush | - | 100mA | Copper Alloy | Gold | - | Surface Mount | Gull Wing | -40°C ~ 85°C | - | - | - |
|
|
204-5STRSWITCH SLIDE DIP SPST 0.05A 24V |
4,852 |
|
Datasheet |
204 | Tape & Reel (TR) | Active | SPST | 5 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.394" (10.01mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
ADE05SWITCH SLIDE DIP SPST 0.1A 24V |
3,563 |
|
Datasheet |
ADE | Tube | Obsolete | SPST | 5 | 24VDC | Slide (Standard) | Raised | 100mA | Copper Alloy | Gold | 0.232" (5.90mm) | Through Hole | PC Pin | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
CFS-0300TBSWITCH SLIDE DIP SPST 0.1A 6V |
2,258 |
|
Datasheet |
CFS | Tape & Reel (TR) | Active | SPST | 3 | 6VDC | Slide (Standard) | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
CFS-0401TASWITCH SLIDE DIP SPST 0.1A 6V |
3,604 |
|
Datasheet |
CFS | Tape & Reel (TR) | Active | SPST | 4 | 6VDC | Slide (Standard) | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.154" (3.90mm) | Surface Mount | J Lead | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
ADE02SWITCH SLIDE DIP SPST 0.1A 24V |
2,246 |
|
Datasheet |
ADE | Tube | Obsolete | SPST | 2 | 24VDC | Slide (Standard) | Raised | 100mA | Copper Alloy | Gold | 0.232" (5.90mm) | Through Hole | PC Pin | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
219-7ESJRSWITCH SLIDE DIP SPST 0.1A 20V |
3,420 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 7 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.224" (5.70mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
219-7ESJRFSWITCH SLIDE DIP SPST 0.1A 20V |
1,362 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 7 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.224" (5.70mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-7LPSJRSWITCH SLIDE DIP SPST 0.1A 20V |
3,549 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 7 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-7LPSJRFSWITCH SLIDE DIP SPST 0.1A 20V |
4,662 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 7 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-7MSJRSWITCH SLIDE DIP SPST 0.1A 20V |
3,662 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 7 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-7MSJRFSWITCH SLIDE DIP SPST 0.1A 20V |
3,323 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 7 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-8LPSTJSWITCH SLIDE DIP SPST 0.1A 20V |
4,630 |
|
Datasheet |
219 | Tube | Active | SPST | 8 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
