| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
219-10LPSSWITCH SLIDE DIP SPST 0.1A 20V |
4,619 |
|
Datasheet |
219 | Tube | Active | SPST | 10 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-10LPSFSWITCH SLIDE DIP SPST 0.1A 20V |
1,358 |
|
Datasheet |
219 | Tube | Active | SPST | 10 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-10MSSWITCH SLIDE DIP SPST 0.1A 20V |
3,935 |
|
Datasheet |
219 | Tube | Active | SPST | 10 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-10MSFSWITCH SLIDE DIP SPST 0.1A 20V |
2,600 |
|
Datasheet |
219 | Tube | Active | SPST | 10 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
206-6RASWITCH SLIDE DIP SPST 0.05A 24V |
4,198 |
|
Datasheet |
206RA | Tube | Active | SPST | 6 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
206-213SWITCH SLIDE DIP DPST 0.05A 24V |
4,189 |
|
Datasheet |
206 | Tube | Active | DPST | 3 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.299" (7.60mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
206-8ESSWITCH SLIDE DIP SPST 0.05A 24V |
3,350 |
|
Datasheet |
206 | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.434" (11.02mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
206-212STSWITCH SLIDE DIP DPST 0.05A 24V |
3,186 |
|
Datasheet |
206 | Tube | Active | DPST | 2 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
|
1825058-4SWITCH SLIDE DIP SPST 0.1A 24V |
4,878 |
|
Datasheet |
ADE | Tube | Active | SPST | 3 | 24VDC | Slide (Standard) | Raised | 100mA | Copper Alloy | Gold | 0.217" (5.50mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
194-5MSSWITCH PIANO DIP SPST 0.05A 24V |
1,835 |
|
Datasheet |
194 | Tube | Active | SPST | 5 | 24VDC | Piano | Raised | 50mA | - | Gold | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|

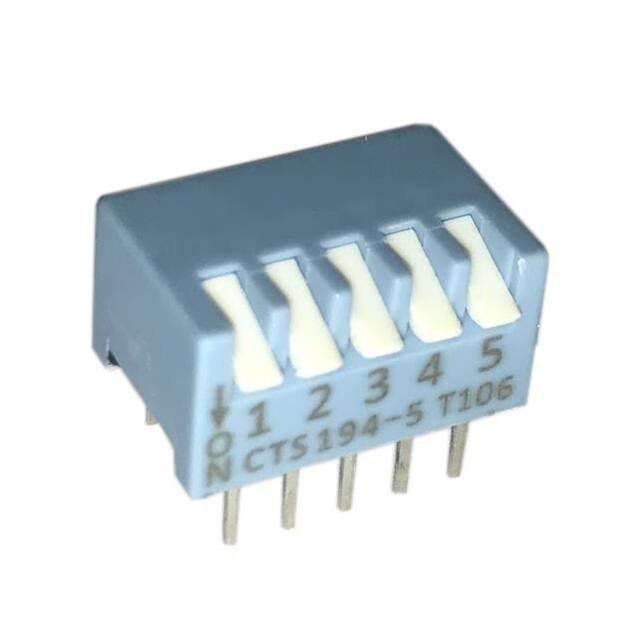

194-5MSNSWITCH PIANO DIP SPST 0.05A 24V |
1,539 |
|
Datasheet |
194 | Tube | Active | SPST | 5 | 24VDC | Piano | Raised | 50mA | - | Gold | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
CJS-1200A2SWITCH SLIDE SPDT 0.1A 6V |
1,193 |
|
Datasheet |
CJS | Bulk | Active | SPDT | - | - | Flush | - | 100mA | Copper Alloy | Gold | - | Surface Mount | J Lead | -40°C ~ 85°C | - | - | - |
|
|
CJS-1200B2SWITCH SLIDE SPDT 0.1A 6V |
4,347 |
|
Datasheet |
CJS | Bulk | Active | SPDT | - | - | Flush | - | 100mA | Copper Alloy | Gold | - | Surface Mount | Gull Wing | -40°C ~ 85°C | - | - | - |
|
|
194-6MSSWITCH PIANO DIP SPST 0.05A 24V |
1,159 |
|
Datasheet |
194 | Tube | Active | SPST | 6 | 24VDC | Piano | Raised | 50mA | - | Gold | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
194-6MSNSWITCH PIANO DIP SPST 0.05A 24V |
3,751 |
|
Datasheet |
194 | Tube | Active | SPST | 6 | 24VDC | Piano | Raised | 50mA | - | Gold | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|

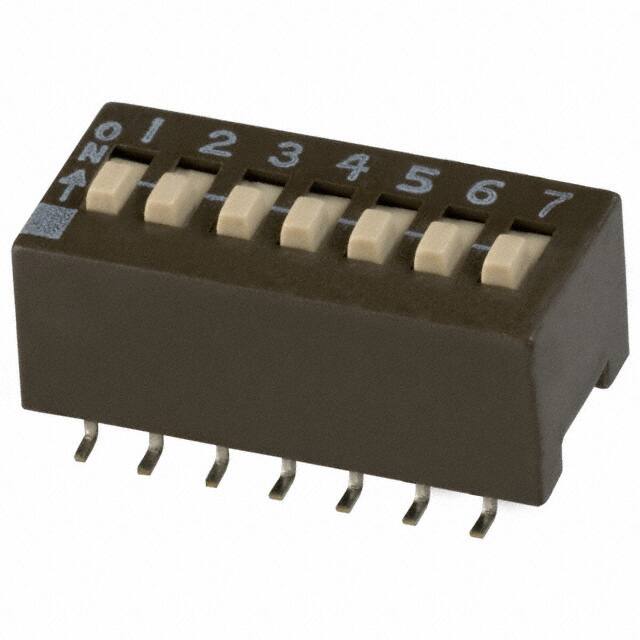

204-7SSWITCH SLIDE DIP SPST 0.05A 24V |
2,281 |
|
Datasheet |
204 | Tube | Active | SPST | 7 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
ADF02SWITCH SLIDE DIP SPST 0.025A 24V |
3,153 |
|
Datasheet |
ADF | Tube | Obsolete | SPST | 2 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.189" (4.80mm) | Through Hole | PC Pin | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
206-7ESSWITCH SLIDE DIP SPST 0.05A 24V |
3,920 |
|
Datasheet |
206 | Tube | Active | SPST | 7 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.434" (11.02mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
219-9ESRSWITCH SLIDE DIP SPST 0.1A 20V |
1,142 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 9 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.184" (4.67mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
219-9ESRFSWITCH SLIDE DIP SPST 0.1A 20V |
4,950 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 9 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.184" (4.67mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
