| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
219-8MSJRFSWITCH SLIDE DIP SPST 0.1A 20V |
2,804 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 8 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
206-121RASWITCH SLIDE DIP SPDT 0.05A 24V |
2,604 |
|
Datasheet |
206RA | Tube | Active | SPDT | 1 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
219-10LPSTFSWITCH SLIDE DIP SPST 0.1A 20V |
3,609 |
|
Datasheet |
219 | Tube | Active | SPST | 10 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
219-10MSTFSWITCH SLIDE DIP SPST 0.1A 20V |
1,236 |
|
Datasheet |
219 | Tube | Active | SPST | 10 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
|
219-9ESJSWITCH SLIDE DIP SPST 0.1A 20V |
2,351 |
|
Datasheet |
219 | Tube | Active | SPST | 9 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.224" (5.70mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
219-9ESJFSWITCH SLIDE DIP SPST 0.1A 20V |
3,046 |
|
Datasheet |
219 | Tube | Active | SPST | 9 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.224" (5.70mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|

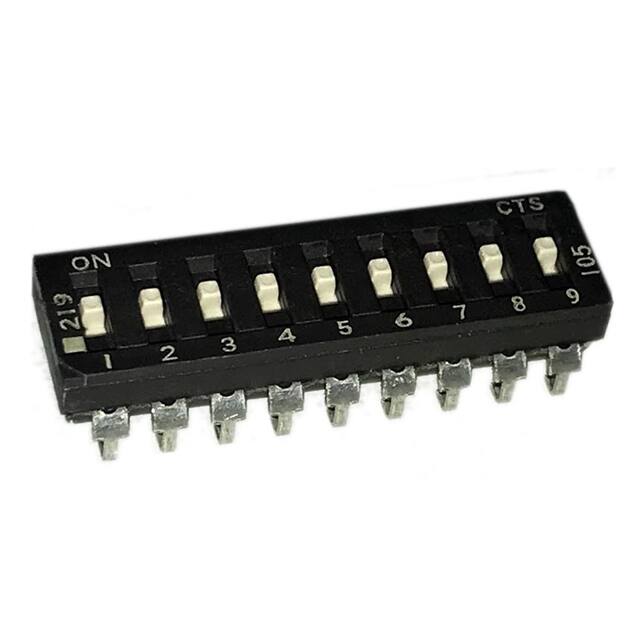

219-9LPSJSWITCH SLIDE DIP SPST 0.1A 20V |
3,181 |
|
Datasheet |
219 | Tube | Active | SPST | 9 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-9LPSJFSWITCH SLIDE DIP SPST 0.1A 20V |
1,766 |
|
Datasheet |
219 | Tube | Active | SPST | 9 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-9MSJSWITCH SLIDE DIP SPST 0.1A 20V |
2,287 |
|
Datasheet |
219 | Tube | Active | SPST | 9 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|

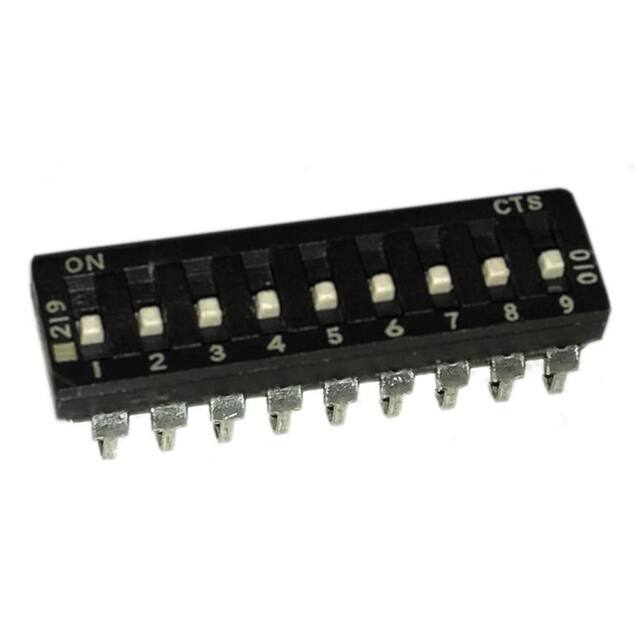

219-9MSJFSWITCH SLIDE DIP SPST 0.1A 20V |
1,137 |
|
Datasheet |
219 | Tube | Active | SPST | 9 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|

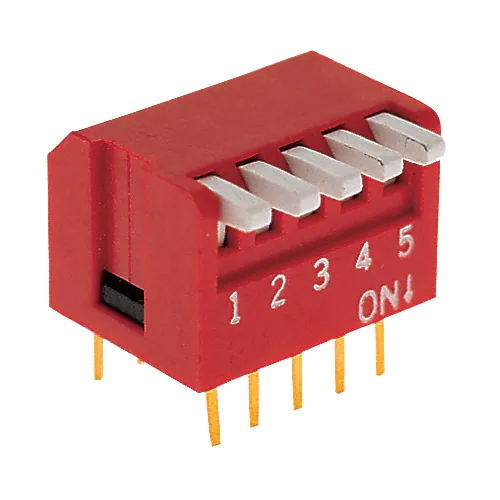

KAP1105ESWITCH PIANO DIP SPST 0.025A 24V |
1,825 |
|
Datasheet |
KAP | Tube | Active | SPST | 5 | 24VDC | Piano | Raised | 25mA | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
KT07ETHSWITCH SLIDE DIP SPST 0.025A 24V |
4,713 |
|
Datasheet |
KT | Tube | Active | SPST | 7 | 24VDC | Slide (Standard) | Raised | 25mA | Beryllium Copper | Gold | 0.167" (4.25mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
KT07RTHSWITCH SLIDE DIP SPST 0.025A 24V |
1,093 |
|
Datasheet |
KT | Tube | Active | SPST | 7 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.144" (3.65mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
193-4MSRNSWITCH PIANO DIP SPST 0.05A 24V |
2,325 |
|
Datasheet |
193 | Tape & Reel (TR) | Active | SPST | 4 | 24VDC | Piano | Raised | 50mA | - | Gold | 0.359" (9.12mm) | Surface Mount, Right Angle | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
206-211RASSWITCH SLIDE DIP DPST 0.05A 24V |
3,346 |
|
Datasheet |
206RA | Tube | Active | DPST | 1 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
KAE02TAGTSWITCH SLIDE DIP SPST 0.025A 24V |
4,756 |
|
Datasheet |
KAE | Tube | Active | SPST | 2 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper | Gold | 0.142" (3.60mm) | Through Hole | PC Pin | -20°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
|
206-5RASSWITCH SLIDE DIP SPST 0.05A 24V |
4,741 |
|
Datasheet |
206RA | Tube | Active | SPST | 5 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-9LPSTRSWITCH SLIDE DIP SPST 0.1A 20V |
4,437 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 9 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
219-9LPSTRFSWITCH SLIDE DIP SPST 0.1A 20V |
2,963 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 9 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
219-9MSTRSWITCH SLIDE DIP SPST 0.1A 20V |
4,507 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 9 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
