| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
219-9MSTRFSWITCH SLIDE DIP SPST 0.1A 20V |
4,643 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 9 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
QHPS08ERDIP SWITCHES / SIP SWITCHES |
4,697 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ADF05SSWITCH SLIDE DIP SPST 0.025A 24V |
4,555 |
|
Datasheet |
ADF | Tube | Obsolete | SPST | 5 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.177" (4.50mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
DS02-254-2L-07BESWITCH PIANO DIP SPST 0.025A 24V |
3,686 |
|
Datasheet |
DS02-254 | Tube | Obsolete | SPST | 7 | 24VDC | Piano | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
219-8LPSTJRFSWITCH SLIDE DIP SPST 0.1A 20V |
3,765 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 8 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
219-8MSTJRSWITCH SLIDE DIP SPST 0.1A 20V |
2,767 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 8 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
219-8MSTJRFSWITCH SLIDE DIP SPST 0.1A 20V |
1,543 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 8 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
|
KP06ETSWITCH PIANO DIP SPST 0.025A 24V |
2,411 |
|
Datasheet |
KP | Tube | Active | SPST | 6 | 24VDC | Piano | Raised | 25mA | Phosphor Bronze | Gold | 0.374" (9.50mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
CFS-0402TASWITCH SLIDE DIP SPST 0.1A 6V |
2,428 |
|
Datasheet |
CFS | Tape & Reel (TR) | Active | SPST | 4 | 6VDC | Slide (Standard) | Raised | 100mA | Copper Alloy | Gold | 0.177" (4.50mm) | Surface Mount | J Lead | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
218-4LPSTJFSWITCH SLIDE DIP SPST 0.025A 24V |
3,909 |
|
Datasheet |
218 | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.050" (1.27mm), Half | Epoxy Sealed Terminals, Tape Seal | Yes |
|
219-8LPSTJRSWITCH SLIDE DIP SPST 0.1A 20V |
3,260 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 8 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|

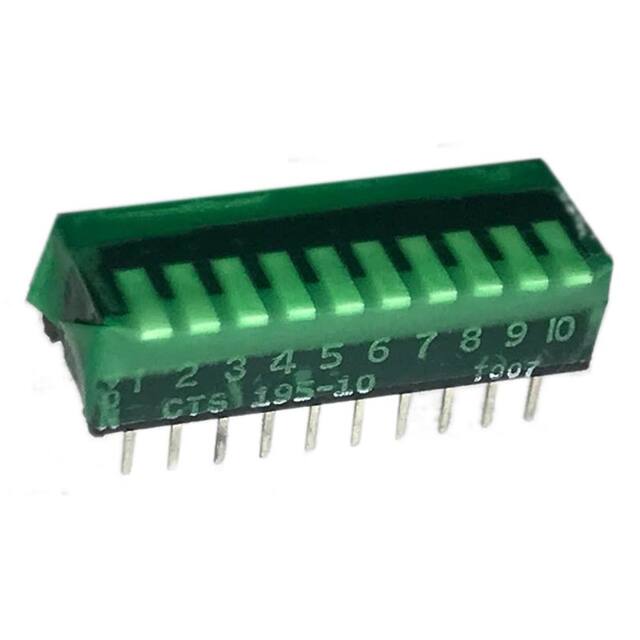

195-10MSTSWITCH PIANO DIP SPST 0.05A 24V |
3,576 |
|
Datasheet |
195 | Tube | Active | SPST | 10 | 24VDC | Piano | Raised | 50mA | - | Tin | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
204-8SSWITCH SLIDE DIP SPST 0.05A 24V |
3,097 |
|
Datasheet |
204 | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-9LPSTJSWITCH SLIDE DIP SPST 0.1A 20V |
3,758 |
|
Datasheet |
219 | Tube | Active | SPST | 9 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
219-9LPSTJFSWITCH SLIDE DIP SPST 0.1A 20V |
4,500 |
|
Datasheet |
219 | Tube | Active | SPST | 9 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
219-9MSTJSWITCH SLIDE DIP SPST 0.1A 20V |
2,228 |
|
Datasheet |
219 | Tube | Active | SPST | 9 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
219-9MSTJFSWITCH SLIDE DIP SPST 0.1A 20V |
4,638 |
|
Datasheet |
219 | Tube | Active | SPST | 9 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
|
ADF08STSWITCH SLIDE DIP SPST 0.025A 24V |
3,508 |
|
Datasheet |
ADF | Tube | Obsolete | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.177" (4.50mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
|
206-12SWITCH SLIDE DIP SPST 0.05A 24V |
2,626 |
|
Datasheet |
206 | Tube | Active | SPST | 12 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
KAE03SGGTSWITCH SLIDE DIP SPST 0.025A 24V |
1,605 |
|
Datasheet |
KAE | Tube | Active | SPST | 3 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper | Gold | 0.148" (3.75mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
