| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
97C02SRSWITCH SLIDE DIP SPST 0.025A 24V |
2,016 |
|
Datasheet |
97 | Tape & Reel (TR) | Obsolete | SPST | 2 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.063" (1.60mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|
97R02SRSWITCH SLIDE DIP SPST 0.025A 24V |
1,699 |
|
Datasheet |
97 | Tape & Reel (TR) | Obsolete | SPST | 2 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.061" (1.55mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|

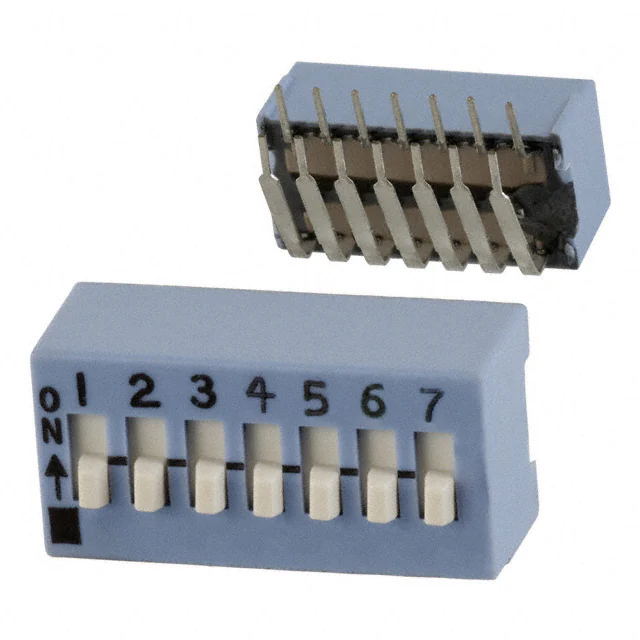

206-7RASTSWITCH SLIDE DIP SPST 0.05A 24V |
1,444 |
|
Datasheet |
206RA | Tube | Active | SPST | 7 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
|
KAS1105RSWITCH SLIDE DIP SPST 0.025A 24V |
1,126 |
|
Datasheet |
KAS | Tube | Active | SPST | 5 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Phosphor Bronze | Gold | 0.236" (6.00mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
218-6LPSTJSWITCH SLIDE DIP SPST 0.025A 24V |
4,298 |
|
Datasheet |
218 | Tube | Active | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.050" (1.27mm), Half | Epoxy Sealed Terminals, Tape Seal | Yes |
|
218-6LPSTJFSWITCH SLIDE DIP SPST 0.025A 24V |
1,114 |
|
Datasheet |
218 | Tube | Active | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.050" (1.27mm), Half | Epoxy Sealed Terminals, Tape Seal | Yes |
|

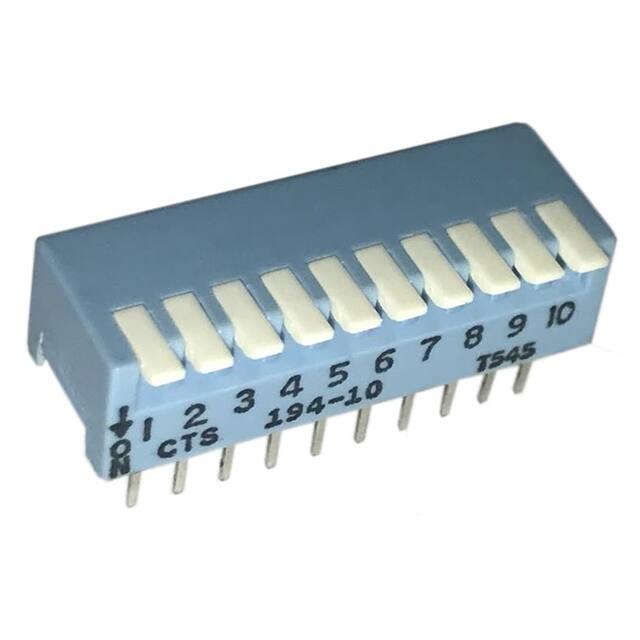

194-10MSSWITCH PIANO DIP SPST 0.05A 24V |
3,676 |
|
Datasheet |
194 | Tube | Active | SPST | 10 | 24VDC | Piano | Raised | 50mA | - | Gold | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
194-10MSNSWITCH PIANO DIP SPST 0.05A 24V |
2,040 |
|
Datasheet |
194 | Tube | Active | SPST | 10 | 24VDC | Piano | Raised | 50mA | - | Gold | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
204-9STSWITCH SLIDE DIP SPST 0.05A 24V |
2,169 |
|
Datasheet |
204 | Tube | Active | SPST | 9 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
|
DMR02SWITCH SLIDE DIP SPST 0.025A 24V |
3,728 |
|
Datasheet |
DM | Tube | Active | SPST | 2 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
206-10ESSWITCH SLIDE DIP SPST 0.05A 24V |
3,134 |
|
Datasheet |
206 | Tube | Active | SPST | 10 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.434" (11.02mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
206-9RASSWITCH SLIDE DIP SPST 0.05A 24V |
3,487 |
|
Datasheet |
206RA | Tube | Active | SPST | 9 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
NDIR04HTSWITCH SLIDE DIP SPST 0.025A 24V |
3,031 |
|
Datasheet |
NDI | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.173" (4.40mm) | Through Hole | PC Pin | -20°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
|
DM01TRDIP SWITCH DM LOW PROFILE |
3,698 |
|
Datasheet |
DM | Bulk | Active | SPST | 1 | 24VDC | Slide (Standard) | Raised | 25mA | Copper Alloy | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
KAJ08TGGRSWITCH SLIDE DIP SPST 0.025A 24V |
4,394 |
|
Datasheet |
KAJ | Tape & Reel (TR) | Obsolete | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.140" (3.55mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
|
CJS-1201A1SWITCH SLIDE SPDT 100MA 6V |
1,880 |
|
Datasheet |
CJS | Bulk | Active | SPDT | - | - | Flush | - | 100mA | Copper Alloy | Gold | - | Surface Mount | J Lead | -40°C ~ 85°C | - | - | - |
|
|
CJS-1201B1SWITCH SLIDE SPDT 100MA 6V |
3,216 |
|
Datasheet |
CJS | Bulk | Active | SPDT | - | - | Flush | - | 100mA | Copper Alloy | Gold | - | Surface Mount | Gull Wing | -40°C ~ 85°C | - | - | - |
|
219-10LPSTJRSWITCH SLIDE DIP SPST 0.1A 20V |
1,441 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 10 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
219-10LPSTJRFSWITCH SLIDE DIP SPST 0.1A 20V |
4,558 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 10 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
219-10MSTJRSWITCH SLIDE DIP SPST 0.1A 20V |
1,469 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 10 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
