| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
219-10MSTJRFSWITCH SLIDE DIP SPST 0.1A 20V |
4,670 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 10 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
DMR01TDIP SWITCH DM LOW PROFILE |
1,945 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
206-215SWITCH SLIDE DIP DPST 0.05A 24V |
2,714 |
|
Datasheet |
206 | Tube | Active | DPST | 5 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
KAP1102ETSWITCH PIANO DIP SPST 0.025A 24V |
2,736 |
|
Datasheet |
KAP | Tube | Active | SPST | 2 | 24VDC | Piano | Raised | 25mA | - | Gold | 0.402" (10.20mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
218-8LPSRSWITCH SLIDE DIP SPST 0.025A 24V |
4,537 |
|
Datasheet |
218 | Tape & Reel (TR) | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.104" (2.65mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.050" (1.27mm), Half | Epoxy Sealed Terminals | No |
|
218-8LPSRFSWITCH SLIDE DIP SPST 0.025A 24V |
1,477 |
|
Datasheet |
218 | Tape & Reel (TR) | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.104" (2.65mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.050" (1.27mm), Half | Epoxy Sealed Terminals | No |
|
|
NDS03VDIP SWITCH ND STANDARD |
4,776 |
|
Datasheet |
NDS | Bulk | Active | SPST | 3 | 24VDC | Slide (Standard) | Raised | 25mA | Brass | Gold | 0.270" (6.85mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
195-12MSSWITCH PIANO DIP SPST 0.05A 24V |
2,451 |
|
Datasheet |
195 | Tube | Active | SPST | 12 | 24VDC | Piano | Raised | 50mA | - | Tin | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|

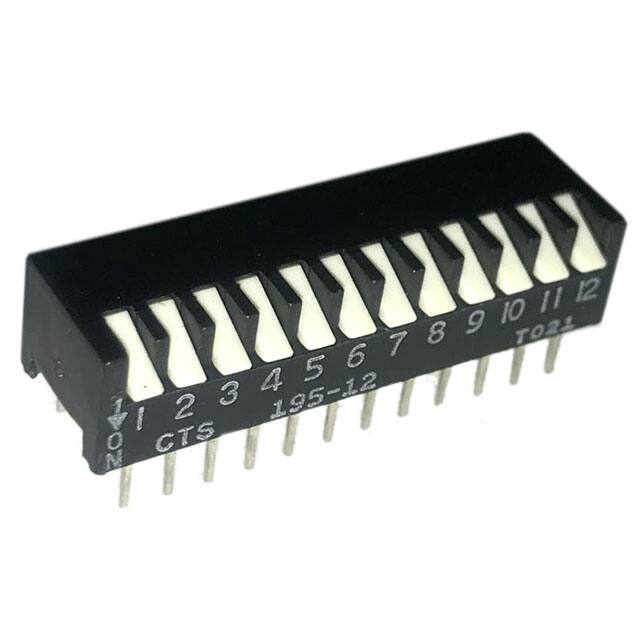

195-12MSNSWITCH PIANO DIP SPST 0.05A 24V |
4,924 |
|
Datasheet |
195 | Tube | Active | SPST | 12 | 24VDC | Piano | Raised | 50mA | - | Tin | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
CFS-0500TASWITCH SLIDE DIP SPST 0.1A 6V |
4,269 |
|
Datasheet |
CFS | Tape & Reel (TR) | Active | SPST | 5 | 6VDC | Slide (Standard) | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.154" (3.90mm) | Surface Mount | J Lead | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
CFS-0601TASWITCH SLIDE DIP SPST 0.1A 6V |
1,576 |
|
Datasheet |
CFS | Tape & Reel (TR) | Active | SPST | 6 | 6VDC | Slide (Standard) | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.154" (3.90mm) | Surface Mount | J Lead | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
CFS-0500TBSWITCH SLIDE DIP SPST 0.1A 6V |
2,070 |
|
Datasheet |
CFS | Tape & Reel (TR) | Active | SPST | 5 | 6VDC | Slide (Standard) | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
RTE0300G03SWITCH ROTARY DIP SP3T 0.1A 30V |
4,624 |
|
Datasheet |
RTE | Tape & Reel (TR) | Obsolete | SP3T | 3 | 30VDC | Rotary for Tool | Flush, Recessed | 100mA | Bronze | Gold | 0.168" (4.27mm) | Surface Mount | Gull Wing | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
KAE05SGGTSWITCH SLIDE DIP SPST 0.025A 24V |
3,912 |
|
Datasheet |
KAE | Tube | Active | SPST | 5 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper | Gold | 0.148" (3.75mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
KAE04TGGRSWITCH SLIDE DIP SPST 0.025A 24V |
4,686 |
|
Datasheet |
KAE | Tape & Reel (TR) | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper | Gold | 0.148" (3.75mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
|
KAE05LAGTSWITCH SLIDE DIP SPST 0.025A 24V |
2,696 |
|
Datasheet |
KAE | Tube | Active | SPST | 5 | 24VDC | Slide (Standard) | Raised | 25mA | Copper | Gold | 0.169" (4.30mm) | Through Hole | PC Pin | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
DS04-254-2S-12BKSWITCH SLIDE DIP SPST 0.025A 24V |
2,422 |
|
Datasheet |
DS04-254 | Tube | Active | SPST | 12 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.144" (3.66mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
DS04-254-1S-12BKSWITCH SLIDE DIP SPST 0.025A 24V |
3,022 |
|
Datasheet |
DS04-254 | Tube | Active | SPST | 12 | 24VDC | Slide (Standard) | Raised | 25mA | Copper Alloy | Gold | 0.166" (4.21mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
DS05-127-2-03BK-SMT-TRSWITCH SLIDE DIP SPST 0.025A 24V |
2,845 |
|
Datasheet |
DS05-127-SMT | Tape & Reel (TR) | Active | SPST | 3 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.094" (2.40mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | - | No |
|
|
NDA02VSWITCH SLIDE DIP SPST 0.025A 24V |
4,158 |
|
Datasheet |
NDA | Tube | Active | SPST | 2 | 24VDC | Slide (Standard) | Raised | 25mA | - | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
