| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
193-7MSNSWITCH PIANO DIP SPST 0.05A 24V |
2,872 |
|
Datasheet |
193 | Tube | Active | SPST | 7 | 24VDC | Piano | Raised | 50mA | - | Gold | 0.359" (9.12mm) | Surface Mount, Right Angle | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
2-1825059-5SWITCH STANDARD DIP SPST |
4,374 |
|
Datasheet |
ADF | Tape & Reel (TR) | Active | SPST | 6 | - | Standard | Flush, Recessed | - | - | - | - | Surface Mount | - | - | - | - | Yes |
|
KAS1106ESWITCH SLIDE DIP SPST 0.025A 24V |
4,254 |
|
Datasheet |
KAS | Tube | Active | SPST | 6 | 24VDC | Slide (Standard) | Raised | 25mA | Phosphor Bronze | Gold | 0.275" (6.99mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
KAS1106RSWITCH SLIDE DIP SPST 0.025A 24V |
3,148 |
|
Datasheet |
KAS | Tube | Active | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Phosphor Bronze | Gold | 0.236" (6.00mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
KAE08LGGRSWITCH SLIDE DIP SPST 0.025A 24V |
1,978 |
|
Datasheet |
KAE | Tape & Reel (TR) | Active | SPST | 8 | 24VDC | Slide (Standard) | Raised | 25mA | Copper | Gold | 0.174" (4.41mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
219-12ESJSWITCH SLIDE DIP SPST 0.1A 20V |
3,447 |
|
Datasheet |
219 | Tube | Active | SPST | 12 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.224" (5.70mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|

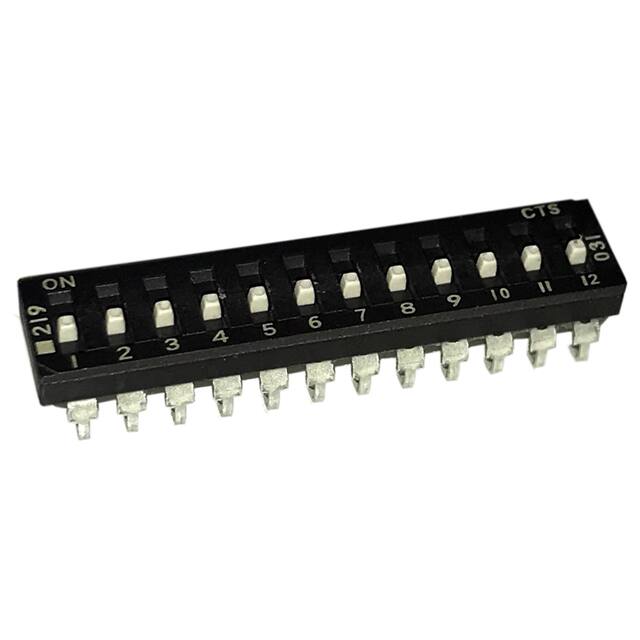

219-12ESJFSWITCH SLIDE DIP SPST 0.1A 20V |
2,303 |
|
Datasheet |
219 | Tube | Active | SPST | 12 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.224" (5.70mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|

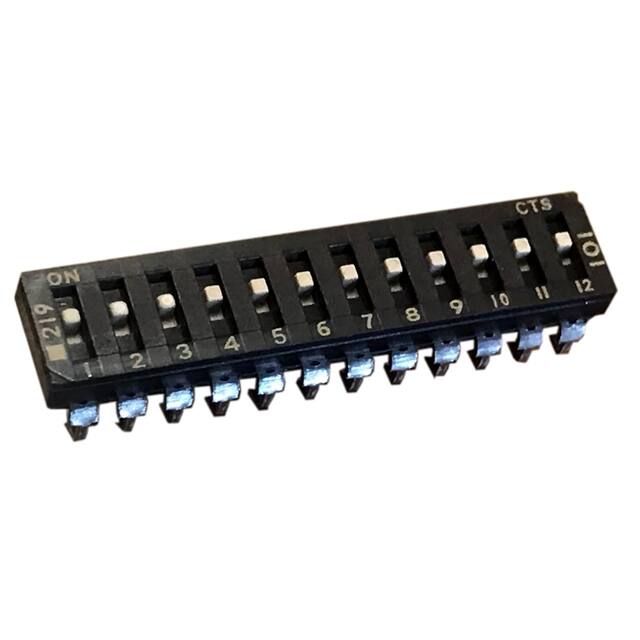

219-12LPSJSWITCH SLIDE DIP SPST 0.1A 20V |
4,172 |
|
Datasheet |
219 | Tube | Active | SPST | 12 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|

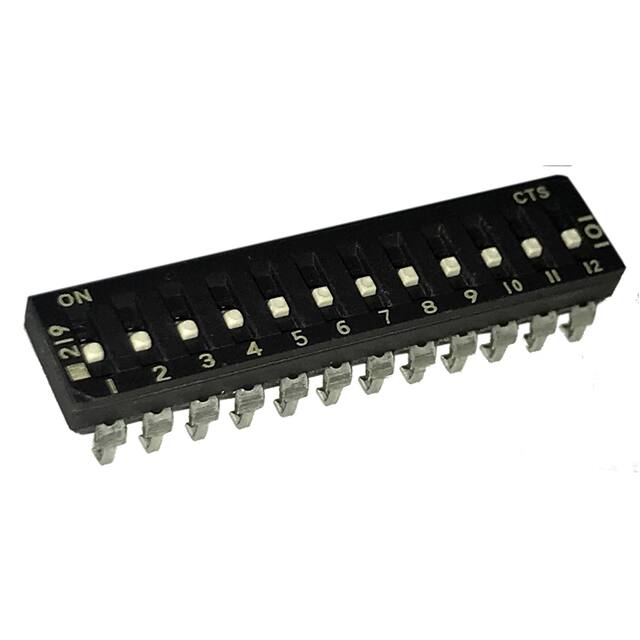

219-12LPSJFSWITCH SLIDE DIP SPST 0.1A 20V |
4,955 |
|
Datasheet |
219 | Tube | Active | SPST | 12 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-12MSJSWITCH SLIDE DIP SPST 0.1A 20V |
3,256 |
|
Datasheet |
219 | Tube | Active | SPST | 12 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-12MSJFSWITCH SLIDE DIP SPST 0.1A 20V |
4,416 |
|
Datasheet |
219 | Tube | Active | SPST | 12 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
161390-7SWITCH SLIDE DIP SPST |
3,314 |
|
Datasheet |
- | Bulk | Obsolete | SPST | 7 | - | Slide (Standard) | Raised | - | Phosphor Bronze | Tin | 0.335" (8.50mm) | Through Hole | PC Pin | - | 0.100" (2.54mm), Full | - | No |
|
CFS-0200MASWITCH SLIDE DIP SPST 0.1A 6V |
2,320 |
|
Datasheet |
CFS | Tube | Active | SPST | 2 | 6VDC | Slide (Standard) | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.154" (3.90mm) | Surface Mount | J Lead | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
KJ08EXRSWITCH SLIDE DIP SPST 0.025A 24V |
4,660 |
|
Datasheet |
KJ | Tape & Reel (TR) | Active | SPST | 8 | 24VDC | Slide (Standard) | Raised | 25mA | Beryllium Copper | Gold | 0.161" (4.10mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
KJ08RXRSWITCH SLIDE DIP SPST 0.025A 24V |
3,339 |
|
Datasheet |
KJ | Tape & Reel (TR) | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.138" (3.50mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
KR07RTSWITCH SLIDE DIP SPST 0.025A 24V |
1,716 |
|
Datasheet |
KR | Tube | Active | SPST | 7 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
A6S-6102-PSWITCH SLIDE DIP SPST 0.025A 24V |
1,565 |
|
Datasheet |
A6S | Tape & Reel (TR) | Obsolete | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | - | 0.146" (3.70mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
|
6-1825059-2SWITCH SLIDE DIP SPST 0.025A 24V |
1,676 |
|
Datasheet |
ADF | Tape & Reel (TR) | Active | SPST | 10 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.177" (4.50mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
1825002-4SWITCH SLIDE DIP SPST 0.025A 24V |
2,684 |
|
Datasheet |
ADF | Tube | Obsolete | SPST | 3 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.189" (4.80mm) | Through Hole | PC Pin | -30°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
218-8LPSSWITCH SLIDE DIP SPST 0.025A 24V |
3,394 |
|
Datasheet |
218 | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.104" (2.65mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.050" (1.27mm), Half | Epoxy Sealed Terminals | No |
