| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7829S-1-051SWITCH ROTARY DIP SPDT 0.1A 16V |
1,285 |
|
Datasheet |
7829 | Tube | Active | SPDT | 2 | 16VAC/DC | Rotary for Tool | Raised | 100mA | - | - | 0.330" (8.38mm) | Through Hole, Right Angle | PC Pin | -55°C ~ 125°C | - | - | Yes |
|
|
CFS-0403MCSWITCH SLIDE DIP SPST 0.1A 6V |
4,536 |
|
Datasheet |
CFS | Tube | Active | SPST | 4 | 6VDC | Slide (Standard) | Raised | 100mA | Copper Alloy | Gold | 0.217" (5.50mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
CFS-0403MBSWITCH SLIDE DIP SPST 0.1A 6V |
1,826 |
|
Datasheet |
CFS | Tube | Active | SPST | 4 | 6VDC | Slide (Standard) | Raised | 100mA | Copper Alloy | Gold | 0.185" (4.70mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

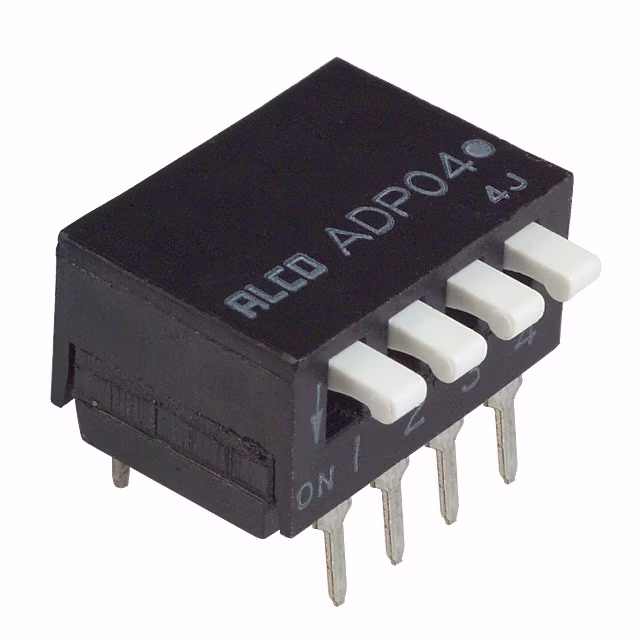

ADP04SWITCH PIANO DIP SPST 0.025A 24V |
2,521 |
|
Datasheet |
ADP | Tube | Obsolete | SPST | 4 | 24VDC | Piano | Raised | 25mA | Copper Alloy | Gold | 0.294" (7.47mm) | Through Hole, Right Angle | PC Pin | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
ADPA04SWITCH PIANO DIP SPST 0.025A 24V |
2,128 |
|
Datasheet |
ADPA | Tube | Obsolete | SPST | 4 | 24VDC | Piano | Raised | 25mA | Copper Alloy | Gold | 0.294" (7.47mm) | Through Hole, Right Angle | PC Pin | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
KT12ETHSWITCH SLIDE DIP SPST 0.025A 24V |
2,079 |
|
Datasheet |
KT | Tube | Active | SPST | 12 | 24VDC | Slide (Standard) | Raised | 25mA | Beryllium Copper | Gold | 0.167" (4.25mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
KT12RTHSWITCH SLIDE DIP SPST 0.025A 24V |
3,010 |
|
Datasheet |
KT | Tube | Active | SPST | 12 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.144" (3.65mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
NDIR06STSWITCH SLIDE DIP SPST 0.025A 24V |
3,814 |
|
Datasheet |
NDI | Tube | Active | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.173" (4.40mm) | Through Hole | PC Pin | -20°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
|
NDA06VSWITCH SLIDE DIP SPST 0.025A 24V |
1,039 |
|
Datasheet |
NDA | Tube | Active | SPST | 6 | 24VDC | Slide (Standard) | Raised | 25mA | - | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|
|
DM09SWITCH SLIDE DIP SPST 0.025A 24V |
4,756 |
|
Datasheet |
DM | Tube | Active | SPST | 9 | 24VDC | Slide (Standard) | Raised | 25mA | Copper Alloy | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
KAD08TGGRSWITCH SLIDE DIP SPST 0.025A 24V |
3,664 |
|
Datasheet |
KAD | Tape & Reel (TR) | Obsolete | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.110" (2.80mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|
|
KAC08LGGRSWITCH PIANO DIP SPST 0.025A 24V |
3,054 |
|
Datasheet |
KAC | Tape & Reel (TR) | Active | SPST | 8 | 24VDC | Piano | Raised | 25mA | - | Gold | 0.201" (5.10mm) | Surface Mount, Right Angle | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
ADF06SSWITCH SLIDE DIP SPST 0.025A 24V |
3,275 |
|
Datasheet |
ADF | Tube | Obsolete | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.177" (4.50mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
EMR02TVTRDIP SWITCH DM LOW PROFILE |
2,213 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
206-216RASWITCH SLIDE DIP DPST 0.05A 24V |
4,241 |
|
Datasheet |
206RA | Tube | Active | DPST | 6 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
206-125RASTSWITCH SLIDE DIP SPDT 0.05A 24V |
1,569 |
|
Datasheet |
206RA | Tube | Active | SPDT | 5 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
|
BPA01SBRSWITCH PIANO DIP SPST 100MA 5VDC |
2,120 |
|
Datasheet |
BPA | Bulk | Active | SPST | 1 | 5VDC | Piano | Raised | 100mA | Beryllium Copper | Gold | 0.274" (6.95mm) | Surface Mount, Right Angle | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
418117270909SWITCH SLIDE DIP SPST 0.025A 24V |
4,893 |
|
Datasheet |
WS-DITV | Tube | Active | SPST | 9 | 24VDC | Slide (Standard) | Raised | 25mA | - | Gold | 0.189" (4.80mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
NDIR08HTSWITCH SLIDE DIP SPST 0.025A 24V |
1,108 |
|
Datasheet |
NDI | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.173" (4.40mm) | Through Hole | PC Pin | -20°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
|
1977282-1SWITCH SLIDE DIP SPST 0.1A 24V |
1,859 |
|
Datasheet |
ADE | Tape & Reel (TR) | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 100mA | Copper Alloy | Gold | - | Surface Mount | J Lead | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
