| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFP-0301TBSWITCH PIANO DIP SPST 0.1A 6V |
2,910 |
|
Datasheet |
CFP | Tape & Reel (TR) | Active | SPST | 3 | 6VDC | Piano | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.264" (6.70mm) | Surface Mount, Right Angle | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
CFP-0302TBSWITCH PIANO DIP SPST 0.1A 6V |
4,653 |
|
Datasheet |
CFP | Tape & Reel (TR) | Active | SPST | 3 | 6VDC | Piano | Raised | 100mA | Copper Alloy | Gold | 0.264" (6.70mm) | Surface Mount, Right Angle | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
CFP-0311TBSWITCH PIANO DIP SPST 0.1A 6V |
1,535 |
|
Datasheet |
CFP | Tape & Reel (TR) | Active | SPST | 3 | 6VDC | Piano | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.264" (6.70mm) | Surface Mount, Right Angle | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
ADPA02SSWITCH PIANO DIP SPST 0.025A 24V |
4,718 |
|
Datasheet |
ADPA | Tube | Obsolete | SPST | 2 | 24VDC | Piano | Raised | 25mA | Copper Alloy | Gold | 0.274" (6.95mm) | Surface Mount, Right Angle | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
218-12LPSTFSWITCH SLIDE DIP SPST 0.025A 24V |
1,985 |
|
Datasheet |
218 | Tube | Active | SPST | 12 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.104" (2.65mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.050" (1.27mm), Half | Epoxy Sealed Terminals, Tape Seal | Yes |
|

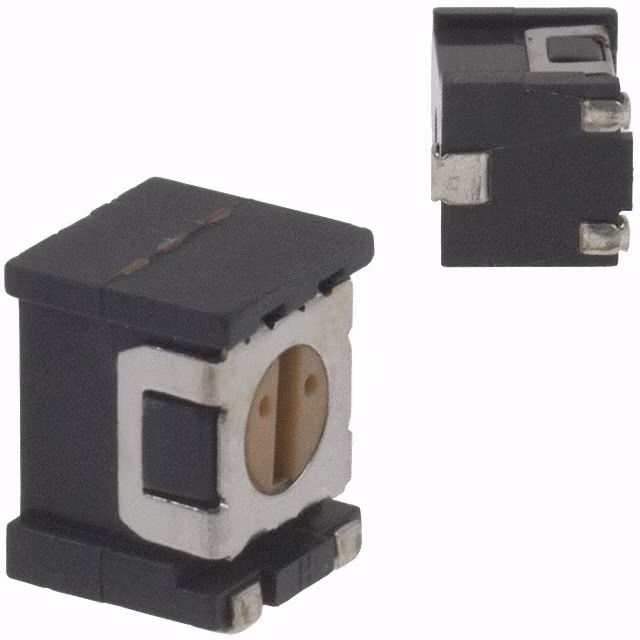

CS-32-12ZETGSWITCH ROTARY DIP SPDT 0.1A 16V |
2,772 |
|
Datasheet |
CS-32 | Tape & Reel (TR) | Active | SPDT | 2 | 16VDC | Rotary for Tool | Flush, Recessed | 100mA | - | - | 0.185" (4.70mm) | Surface Mount, Right Angle | J Lead | -40°C ~ 85°C | - | - | Yes |
|

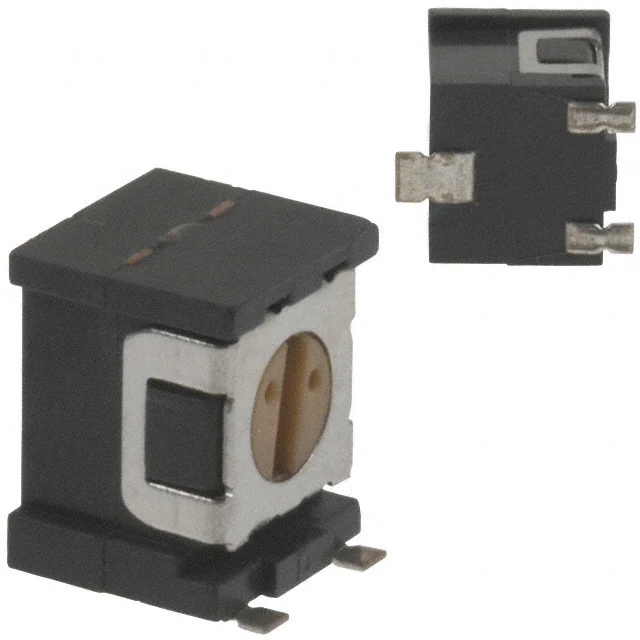

CS-32-12ZETHSWITCH ROTARY DIP SPDT 0.1A 16V |
2,904 |
|
Datasheet |
CS-32 | Tape & Reel (TR) | Active | SPDT | 2 | 16VDC | Rotary for Tool | Flush, Recessed | 100mA | - | - | 0.185" (4.70mm) | Surface Mount, Right Angle | Gull Wing | -40°C ~ 85°C | - | - | Yes |
|
|
CS-32-12ZEGSWITCH ROTARY DIP SPDT 0.1A 16V |
1,206 |
|
Datasheet |
CS-32 | Bulk | Active | SPDT | 2 | 16VDC | Rotary for Tool | Flush, Recessed | 100mA | - | - | 0.185" (4.70mm) | Surface Mount, Right Angle | J Lead | -40°C ~ 85°C | - | - | Yes |
|
|
CS-32-12ZEHSWITCH ROTARY DIP SPDT 0.1A 16V |
4,318 |
|
Datasheet |
CS-32 | Bulk | Active | SPDT | 2 | 16VDC | Rotary for Tool | Flush, Recessed | 100mA | - | - | 0.185" (4.70mm) | Surface Mount, Right Angle | Gull Wing | -40°C ~ 85°C | - | - | Yes |
|
TDA02H0SK1RSWITCH SLIDE DIP SPST 0.025A 24V |
4,972 |
|
Datasheet |
TDA | Tape & Reel (TR) | Obsolete | SPST | 2 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|
|
RDTAR10P2TSWITCH ROTARY DIP BCD 0.15A 42V |
2,907 |
|
Datasheet |
RDT | Tube | Active | BCD | 10 | 42VDC | Rotary for Tool | Flush, Recessed | 150mA | - | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | IP67 - Dust Tight, Waterproof | Yes |
|
|
DMR10SWITCH SLIDE DIP SPST 0.025A 24V |
2,620 |
|
Datasheet |
DM | Tube | Active | SPST | 10 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
DMR12TSWITCH SLIDE DIP SPST 0.025A 24V |
3,381 |
|
Datasheet |
DM | Tube | Active | SPST | 12 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
CAS-220TA1SWITCH SLIDE DPDT 100MA 6V |
4,044 |
|
Datasheet |
CAS | Tape & Reel (TR) | Active | DPDT | - | - | Flush | - | 100mA | Copper Alloy | Gold | - | Surface Mount | J Lead | -40°C ~ 85°C | - | - | - |
|
CAS-220TB1SWITCH SLIDE DPDT 100MA 6V |
1,079 |
|
Datasheet |
CAS | Tape & Reel (TR) | Active | DPDT | - | - | Flush | - | 100mA | Copper Alloy | Gold | - | Surface Mount | Gull Wing | -40°C ~ 85°C | - | - | - |
|
218-12LPSTJRSWITCH SLIDE DIP SPST 0.025A 24V |
4,264 |
|
Datasheet |
218 | Tape & Reel (TR) | Active | SPST | 12 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.050" (1.27mm), Half | Epoxy Sealed Terminals, Tape Seal | Yes |
|
218-12LPSTJRFSWITCH SLIDE DIP SPST 0.025A 24V |
1,082 |
|
Datasheet |
218 | Tape & Reel (TR) | Active | SPST | 12 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.050" (1.27mm), Half | Epoxy Sealed Terminals, Tape Seal | Yes |
|
|
GDS06STRSWITCH SLIDE DIP SPST 0.025A 24V |
3,618 |
|
Datasheet |
GDS | Tape & Reel (TR) | Obsolete | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.114" (2.90mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
KAP1109ESWITCH PIANO DIP SPST 0.025A 24V |
1,844 |
|
Datasheet |
KAP | Tube | Active | SPST | 9 | 24VDC | Piano | Raised | 25mA | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
KAS1110RTSWITCH SLIDE DIP SPST 0.025A 24V |
1,368 |
|
Datasheet |
KAS | Tube | Active | SPST | 10 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Phosphor Bronze | Gold | 0.236" (6.00mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
