| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
218-12LPSJFSWITCH SLIDE DIP SPST 0.025A 24V |
1,873 |
|
Datasheet |
218 | Tube | Active | SPST | 12 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.050" (1.27mm), Half | Epoxy Sealed Terminals | No |
|
4-5435166-9SWITCH ROCKER DIP SPST |
3,016 |
|
Datasheet |
7000 | Tape & Reel (TR) | Active | SPST | 4 | - | Rocker | Raised | - | - | - | - | Through Hole | - | - | - | - | Yes |
|
RDS1-4S-1065-D-67SWITCH ROTARY DIP SPST 0.15A 42V |
4,461 |
|
Datasheet |
RDS1-1065-D-67 | Tube | Active | SPST | - | 42VDC | Rotary for Tool | Flush, Recessed | 150mA | Phosphor Bronze | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
7813S-1-051ESWITCH ROTARY DIP SPDT 0.1A 16V |
4,258 |
|
Datasheet |
7813 | Tape & Reel (TR) | Active | SPDT | 2 | 16VAC/DC | Rotary for Tool | Flush, Recessed | 100mA | - | - | 0.211" (5.35mm) | Surface Mount, Right Angle | J Lead | -55°C ~ 125°C | - | - | No |
|
|
NDIR08SSWITCH SLIDE DIP SPST 0.025A 24V |
2,907 |
|
Datasheet |
NDI | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.173" (4.40mm) | Through Hole | PC Pin | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
GDH04SATR04SWITCH SLIDE DIP SPST 0.025A 24V |
4,761 |
|
Datasheet |
GDH | Tape & Reel (TR) | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.093" (2.35mm) | Surface Mount | J Lead | -30°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|
|
1825006-4SWITCH STANDARD DIP SPST |
2,084 |
|
Datasheet |
GDS | Tape & Reel (TR) | Active | SPST | 2 | - | Standard | Flush, Recessed | - | - | - | - | Surface Mount | - | - | - | - | Yes |
|
|
ADF06SASWITCH SLIDE DIP SPST 0.025A 24V |
3,137 |
|
Datasheet |
ADF | Tube | Obsolete | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.203" (5.15mm) | Surface Mount | J Lead | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
RDS3-4S-1065-DSWITCH ROTARY DIP SPST 0.15A 42V |
4,433 |
|
Datasheet |
RDS3-1065-D | Tube | Active | SPST | - | 42VDC | Rotary for Tool | Flush, Recessed | 150mA | Phosphor Bronze | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
RDS6-4S-1065-DSWITCH ROTARY DIP SPST 0.15A 42V |
3,755 |
|
Datasheet |
RDS6-1065-D | Tube | Active | SPST | - | 42VDC | Rotary for Tool | Flush, Recessed | 150mA | Phosphor Bronze | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
NDIR08HSWITCH SLIDE DIP SPST 0.025A 24V |
4,476 |
|
Datasheet |
NDI | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.173" (4.40mm) | Through Hole | PC Pin | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
NDI08HSWITCH SLIDE DIP SPST 0.025A 24V |
2,115 |
|
Datasheet |
NDI | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Raised | 25mA | Copper Alloy | Gold | 0.197" (5.00mm) | Through Hole | PC Pin | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
NDIR07STSWITCH SLIDE DIP SPST 0.025A 24V |
4,147 |
|
Datasheet |
NDI | Tube | Active | SPST | 7 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.173" (4.40mm) | Through Hole | PC Pin | -20°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
204-221STRSWITCH SLIDE DIP DPDT 0.05A 24V |
1,392 |
|
Datasheet |
204 | Tape & Reel (TR) | Obsolete | DPDT | 1 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|

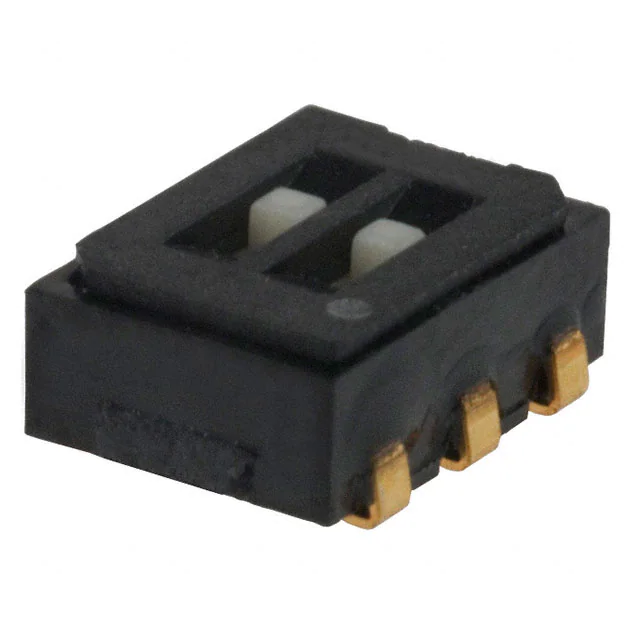

CAS-D20TA1SWITCH SLIDE SPDTX2 100MA 6V |
1,517 |
|
Datasheet |
CAS | Tape & Reel (TR) | Active | SPDT | - | - | Flush | - | 100mA | Copper Alloy | Gold | - | Surface Mount | J Lead | -40°C ~ 85°C | - | - | - |
|

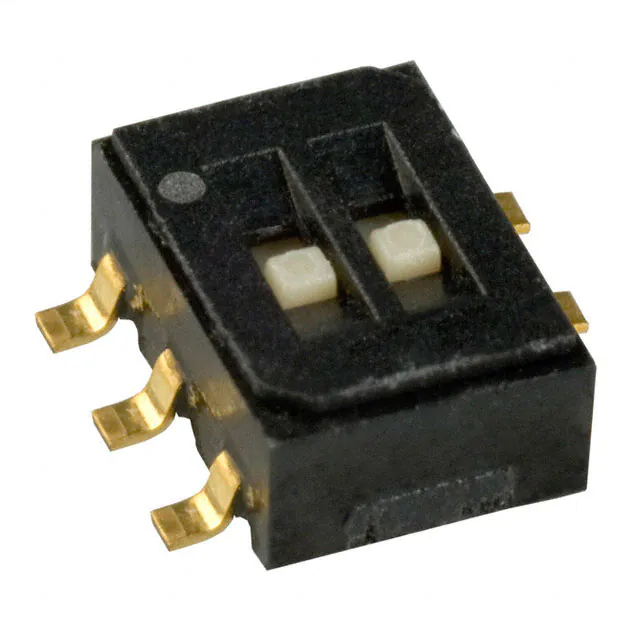

CAS-D20TB1SWITCH SLIDE SPDTX2 100MA 6V |
2,413 |
|
Datasheet |
CAS | Tape & Reel (TR) | Active | SPDT | - | - | Flush | - | 100mA | Copper Alloy | Gold | - | Surface Mount | Gull Wing | -40°C ~ 85°C | - | - | - |
|
218-12LPSTJSWITCH SLIDE DIP SPST 0.025A 24V |
2,511 |
|
Datasheet |
218 | Tube | Active | SPST | 12 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.050" (1.27mm), Half | Epoxy Sealed Terminals, Tape Seal | Yes |
|

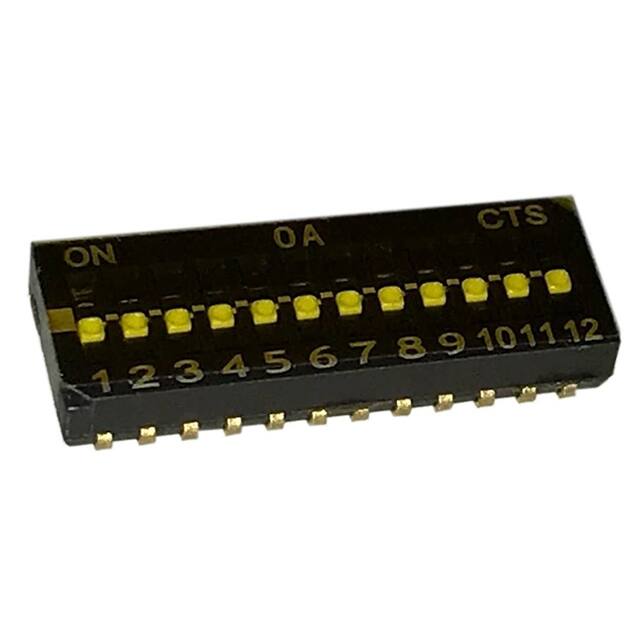

218-12LPSTJFSWITCH SLIDE DIP SPST 0.025A 24V |
4,318 |
|
Datasheet |
218 | Tube | Active | SPST | 12 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.050" (1.27mm), Half | Epoxy Sealed Terminals, Tape Seal | Yes |
|
435640-4SWITCH ROCKER DIP SPST 0.06A 5V |
1,056 |
|
Datasheet |
7100 | Tube | Active | SPST | 6 | 5VDC | Rocker | Raised | 60mA | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | -55°C ~ 105°C | 0.100" (2.54mm), Full | - | No |
|
|
7814H-1-023SWITCH ROTARY DIP SPDT 0.1A 16V |
3,327 |
|
Datasheet |
7814 | Tube | Active | SPDT | 2 | 16VAC/DC | Rotary for Tool | Flush, Recessed | 100mA | - | - | 0.100" (2.54mm) | Through Hole | PC Pin | -55°C ~ 125°C | - | - | No |
