| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RTF16R1KSWITCH ROTARY DIP HEX 100MA 5VDC |
1,860 |
|
Datasheet |
RTF | Bulk | Active | Hexadecimal | 16 | 5VDC | Rotary with Shaft | Raised | 100mA | Phosphor Bronze | Gold | 0.272" (6.90mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
RTF16C3JSW ROTARY DIP HEX COMP 0.1A 5VDC |
1,935 |
|
Datasheet |
RTF | Tube | Active | Hexadecimal Complement | 16 | 5VDC | Rotary with Shaft | Raised | 100mA | Phosphor Bronze | Gold | 0.236" (6.00mm) | Surface Mount | J Lead | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
RTF16R1JSWITCH ROTARY DIP HEX 100MA 5VDC |
3,098 |
|
Datasheet |
RTF | Tube | Active | Hexadecimal | 16 | 5VDC | Rotary with Shaft | Raised | 100mA | Phosphor Bronze | Gold | 0.236" (6.00mm) | Surface Mount | J Lead | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
GDR10SW ROCKER DIP SPST 0.025A 24V |
4,686 |
|
Datasheet |
GDR | Tube | Obsolete | SPST | 10 | 24VDC | Rocker | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.270" (6.85mm) | Through Hole | PC Pin | -30°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
|
RDMAC10S1RSW ROTARY DIP BCD COMP 0.1A 42V |
1,136 |
|
Datasheet |
RDM | Tape & Reel (TR) | Active | BCD Complement | 10 | 42VDC | Rotary for Tool | Flush, Recessed | 100mA | - | Gold | 0.152" (3.85mm) | Surface Mount | Gull Wing | -60°C ~ 125°C | 0.100" (2.54mm), Full | IP67 - Dust Tight, Waterproof | Yes |
|

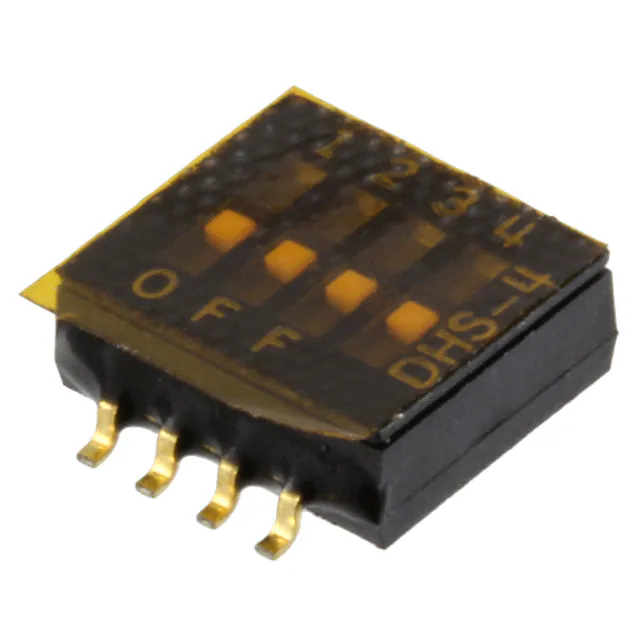

DHS4CSWITCH SLIDE DIP SPST 0.1A 6V |
2,621 |
|
Datasheet |
DHS | Tape & Reel (TR) | Obsolete | SPST | 4 | 6VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.087" (2.20mm) | Surface Mount | Gull Wing | -40°C ~ 80°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|
418317170907SWITCH PIANO DIP SPST 0.025A 24V |
4,697 |
|
Datasheet |
WS-DITU | Tube | Obsolete | SPST | 7 | 24VDC | Piano | Flush, Recessed | 25mA | - | Gold | 0.272" (6.90mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

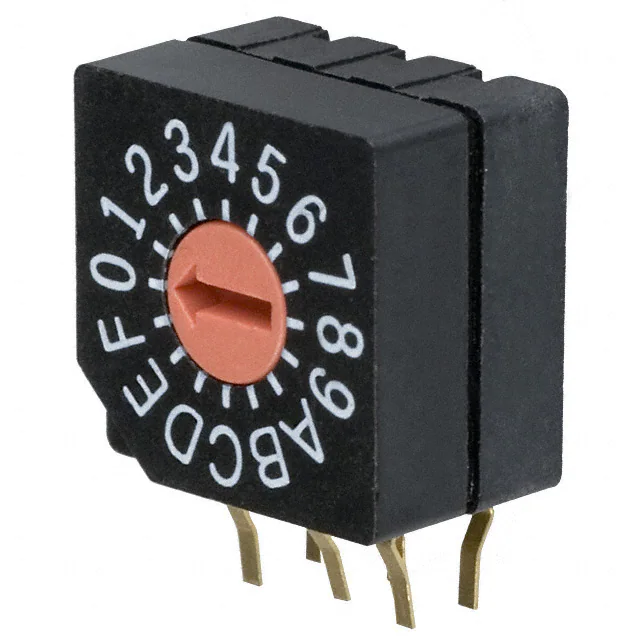

SD-1031SW ROTARY DIP HEX COMP 0.1A 5V |
2,623 |
|
Datasheet |
SD-1000 | Bulk | Active | Hexadecimal Complement | 16 | 5VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

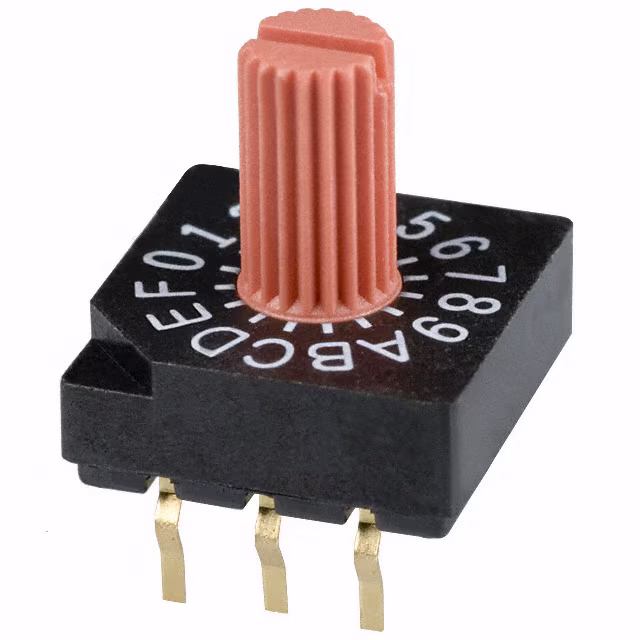

SD-1130SW ROTARY DIP HEX COMP 0.1A 5V |
2,025 |
|
Datasheet |
SD-1000 | Bulk | Active | Hexadecimal Complement | 16 | 5VDC | Rotary with Shaft | Raised | 100mA | Copper Alloy | Gold | 0.409" (10.39mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

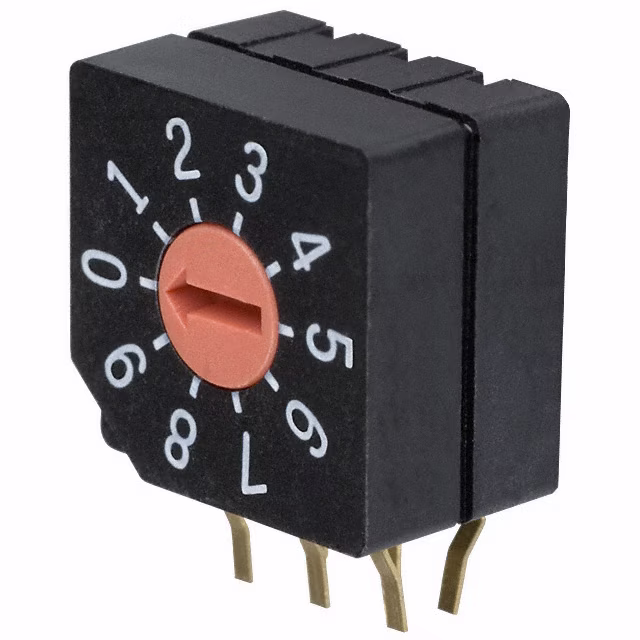

SD-2031SW ROTARY DIP BCD COMP 0.1A 5V |
1,257 |
|
Datasheet |
SD-2000 | Bulk | Active | BCD Complement | 10 | 5VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

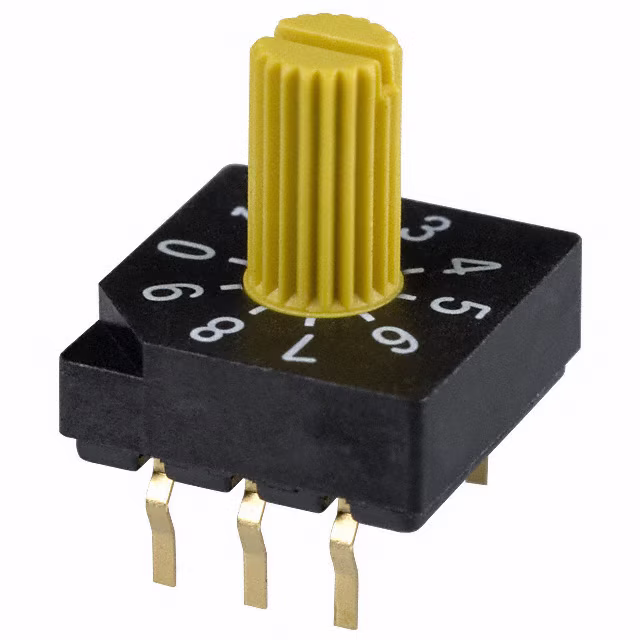

SD-2110SWITCH ROTARY DIP BCD 0.1A 5V |
3,210 |
|
Datasheet |
SD-2000 | Bulk | Active | BCD | 10 | 5VDC | Rotary with Shaft | Raised | 100mA | Copper Alloy | Gold | 0.409" (10.39mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

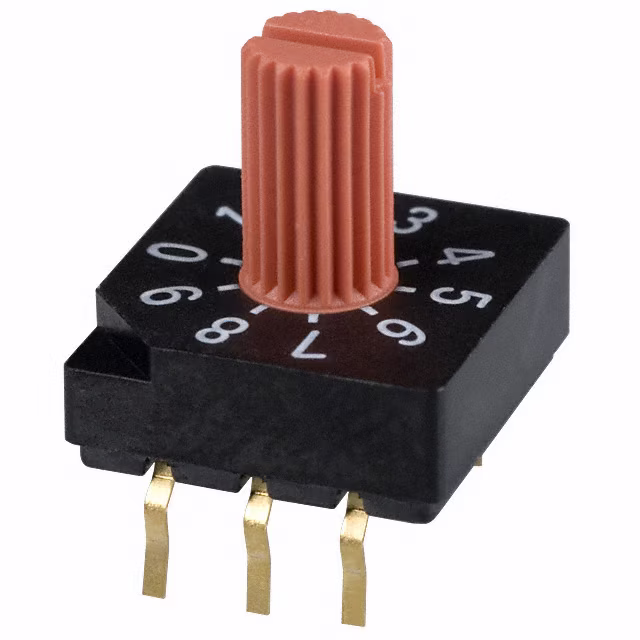

SD-2130SW ROTARY DIP BCD COMP 0.1A 5V |
3,281 |
|
Datasheet |
SD-2000 | Bulk | Active | BCD Complement | 10 | 5VDC | Rotary with Shaft | Raised | 100mA | Copper Alloy | Gold | 0.409" (10.39mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
SD-1231SW ROTARY DIP HEX COMP 0.1A 5V |
1,772 |
|
Datasheet |
SD-1000 | Bulk | Active | Hexadecimal Complement | 16 | 5VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
CHS-08MBSWITCH SLIDE DIP SPST 0.1A 6V |
2,021 |
|
Datasheet |
CHS | Tube | Active | SPST | 8 | 6VDC | Slide (Standard) | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | - | Yes |
|
|
RTF16C3ASW ROTARY DIP HEX COMP 0.1A 5VDC |
3,790 |
|
Datasheet |
RTF | Bulk | Active | Hexadecimal Complement | 16 | 5VDC | Rotary with Shaft | Raised | 100mA | Phosphor Bronze | Gold | 0.291" (7.39mm) | Surface Mount, Right Angle | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | - | No |
|
|
RTF16R1ASWITCH ROTARY DIP HEX 100MA 5VDC |
3,885 |
|
Datasheet |
RTF | Bulk | Active | Hexadecimal | 16 | 5VDC | Rotary with Shaft | Raised | 100mA | Phosphor Bronze | Gold | 0.291" (7.39mm) | Surface Mount, Right Angle | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | - | No |
|
|
RTF16C1ASW ROTARY DIP HEX COMP 0.1A 5VDC |
3,055 |
|
Datasheet |
RTF | Bulk | Active | Hexadecimal Complement | 16 | 5VDC | Rotary with Shaft | Raised | 100mA | Phosphor Bronze | Gold | 0.291" (7.39mm) | Surface Mount, Right Angle | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | - | No |
|
GDH06SSWITCH SLIDE DIP SPST 0.025A 24V |
2,621 |
|
Datasheet |
GDH | Tube | Obsolete | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|
|
TDP10H0SBD1SWITCH PIANO DIP SPST 25MA 24VDC |
2,941 |
|
Datasheet |
TDP | Bulk | Active | SPST | 10 | 24VDC | Piano | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.164" (4.17mm) | Surface Mount, Right Angle | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | - | No |
|
221AMC10RSWITCH ROTARY DIP BCD 0.1A 50V |
1,843 |
|
Datasheet |
221 | Tape & Reel (TR) | Discontinued | BCD | 10 | 50VDC | Rotary with Shaft | Raised | 100mA | Beryllium Copper | Gold | 0.470" (11.94mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
