| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DMR02TNTRDIP SWITCH DM LOW PROFILE |
3,393 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GDB10SW ROCKER DIP SPST 0.025A 24V |
2,436 |
|
Datasheet |
GDB | Bulk | Obsolete | SPST | 10 | 24VDC | Rocker | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.169" (4.30mm) | Through Hole | PC Pin | -30°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
TDP10H1SBD1SWITCH PIANO DIP SPST 0.025A 24V |
4,999 |
|
Datasheet |
TDP | Tube | Active | SPST | 10 | 24VDC | Piano | Raised | 25mA | Copper Alloy | Gold | 0.161" (4.10mm) | Surface Mount, Right Angle | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | - | No |
|
|
DRD10RAESWITCH ROTARY DIP BCD 0.4VA 20V |
4,691 |
|
Datasheet |
DRD | Tube | Obsolete | BCD | 10 | 20VAC/DC | Rotary for Tool | Flush, Recessed | 0.4VA | Copper Alloy | Gold | 0.413" (10.50mm) | Through Hole, Right Angle | PC Pin | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
90HBW08RTSWITCH SLIDE DIP SPST 0.025A 24V |
3,457 |
|
Datasheet |
90HB | Tape & Reel (TR) | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.190" (4.83mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
CHS-08MB1SWITCH SLIDE DIP SPST 0.1A 6V |
2,214 |
|
Datasheet |
CHS | Tube | Active | SPST | 8 | 6VDC | Slide (Standard) | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | - | No |
|
|
CHS-08MA1SWITCH SLIDE DIP SPST 0.1A 6V |
3,700 |
|
Datasheet |
CHS | Tube | Active | SPST | 8 | 6VDC | Slide (Standard) | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | J Lead | -40°C ~ 85°C | 0.050" (1.27mm), Half | - | No |
|
|
CRD10CM0SKRSW ROTARY DIP BCD COMP 0.4VA 20V |
2,859 |
|
Datasheet |
CRD | Tape & Reel (TR) | Obsolete | BCD Complement | 10 | 20VAC/DC | Rotary for Tool | Flush, Recessed | 0.4VA | Beryllium Copper | Gold | 0.271" (6.88mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | Process Sealed | Yes |
|
S-2110ASWITCH ROTARY DIP BCD 0.1A 5V |
2,195 |
|
Datasheet |
S-2000A | Bulk | Active | BCD | 10 | 5VDC | Rotary with Shaft | Raised | 100mA | Copper Alloy | Gold | 0.535" (13.59mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
S-1130ASW ROTARY DIP HEX COMP 0.1A 5V |
1,398 |
|
Datasheet |
S-1000A | Bulk | Active | Hexadecimal Complement | 16 | 5VDC | Rotary with Shaft | Raised | 100mA | Copper Alloy | Gold | 0.535" (13.59mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
S-2130ASW ROTARY DIP BCD COMP 0.1A 5V |
3,405 |
|
Datasheet |
S-2000A | Bulk | Active | BCD Complement | 10 | 5VDC | Rotary with Shaft | Raised | 100mA | Copper Alloy | Gold | 0.535" (13.59mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
SD10H0SBRSWITCH SLIDE DIP SPST 0.1A 25V |
3,831 |
|
Datasheet |
SD | Tape & Reel (TR) | Active | SPST | 10 | 25VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
|
MRD16STRSWITCH ROTARY DIP HEX 0.4VA 20V |
3,942 |
|
Datasheet |
MRD | Tape & Reel (TR) | Obsolete | Hexadecimal | 16 | 20VAC/DC | Rotary for Tool | Flush, Recessed | 0.4VA | Beryllium Copper | Gold | 0.130" (3.30mm) | Surface Mount | Gull Wing | -10°C ~ 85°C | 0.100" (2.54mm), Full | Process Sealed | No |
|

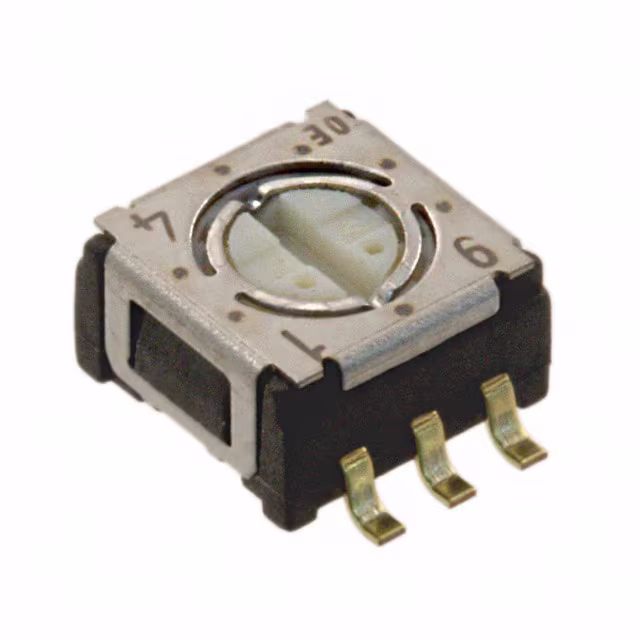

S-4010TBSWITCH ROTARY DIP BCD 0.1A 2.4V |
3,218 |
|
Datasheet |
S-4000 | Tape & Reel (TR) | Active | BCD | 10 | 2.4VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.102" (2.60mm) | Surface Mount | Gull Wing | -25°C ~ 70°C | 0.050" (1.27mm), Half | - | No |
|
|
90HGBW08RTSWITCH SLIDE DIP SPST 0.01A 30V |
3,265 |
|
Datasheet |
90HGB | Tape & Reel (TR) | Obsolete | SPST | 8 | 30VDC | Slide (Standard) | Flush, Recessed | 10mA | Copper Alloy | Gold | 0.190" (4.83mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
SS-10-16NPEWSWITCH ROTARY DIP SP6T 0.1A 5V |
1,669 |
|
Datasheet |
SS-10 | Tray | Active | SP6T | 6 | 5VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.535" (13.59mm) | Through Hole | PC Pin | -25°C ~ 70°C | 0.100" (2.54mm), Full | - | Yes |
|
|
SS-10-15SPEWSWITCH ROTARY DIP SP5T 0.1A 5V |
1,553 |
|
Datasheet |
SS-10 | Tray | Active | SP5T | 5 | 5VDC | Rotary for Tool | Flush, Recessed | 100mA | - | - | 0.276" (7.00mm) | Through Hole | PC Pin | -25°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|
|
SS-10-16SP-AEWSWITCH ROTARY DIP SP6T 0.1A 5V |
1,758 |
|
Datasheet |
SS-10 | Tray | Active | SP6T | 6 | 5VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.535" (13.59mm) | Through Hole | PC Pin | -25°C ~ 70°C | 0.100" (2.54mm), Full | - | Yes |
|
|
DMR02TVTRDIP SWITCH DM LOW PROFILE |
3,133 |
|
Datasheet |
DM | Bulk | Active | SPST | 2 | 24VDC | Slide (Standard) | Raised | 25mA | Copper Alloy | Gold | 0.118" (3.00mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
MPG305BSW PIANO DIP DPST 0.025A 24V |
1,389 |
|
Datasheet |
MPG | Tube | Active | DPST-NO/NC | 5 | 24VDC | Piano | Raised | 25mA | Brass | Gold | 0.381" (9.68mm) | Through Hole, Right Angle | PC Pin | -25°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
