| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6ER-5104SWITCH PIANO DIP SPST 0.025A 24V |
3,244 |
|
Datasheet |
A6ER | Tube | Obsolete | SPST | 5 | 24VDC | Piano | Raised | 25mA | - | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | Sealed - Flux Protection | No |
|

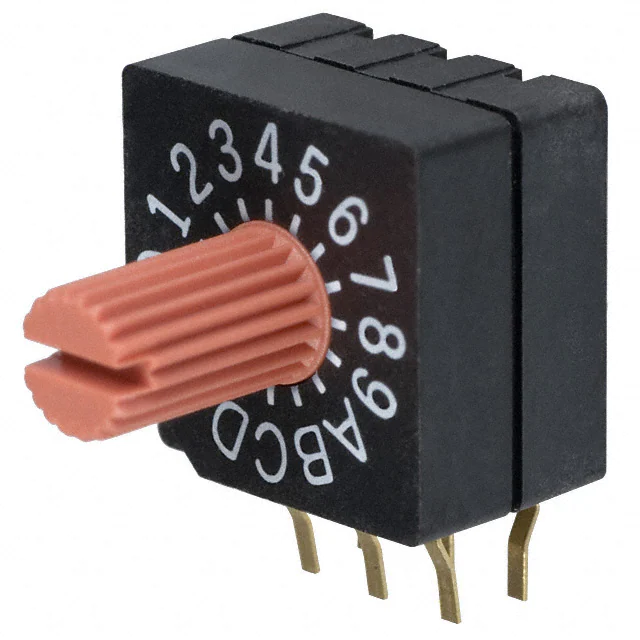

SD-1131SW ROTARY DIP HEX COMP 0.1A 5V |
4,164 |
|
Datasheet |
SD-1000 | Bulk | Active | Hexadecimal Complement | 16 | 5VDC | Rotary with Shaft | Raised | 100mA | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

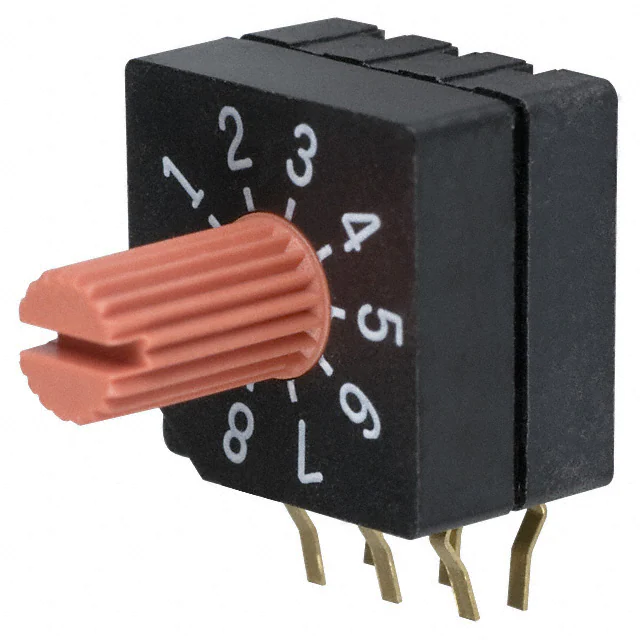

SD-2131SW ROTARY DIP BCD COMP 0.1A 5V |
2,089 |
|
Datasheet |
SD-2000 | Bulk | Active | BCD Complement | 10 | 5VDC | Rotary with Shaft | Raised | 100mA | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
SS-10-16SP-L-AESWITCH ROTARY DIP SP6T 0.1A 5V |
4,953 |
|
Datasheet |
SS-10 | Bulk | Active | SP6T | 6 | 5VDC | Rotary with Shaft | Raised | 100mA | Copper Alloy | Gold | 0.535" (13.59mm) | Through Hole | PC Pin | -25°C ~ 70°C | 0.100" (2.54mm), Full | - | Yes |
|
1-5435802-2SWITCH PIANO DIP SPST |
1,498 |
|
Datasheet |
7000 | Bulk | Active | SPST | 12 | - | Piano | Raised | - | - | - | - | Through Hole | - | - | - | - | No |
|
|
JS5211SWITCH DIP |
3,631 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SLV04SWITCH SLIDE DIP SPST 0.4VA 20V |
4,663 |
|
Datasheet |
SLV | Tube | Obsolete | SPST | 4 | 20VAC/DC | Slide (Standard) | Flush, Recessed | 0.4VA | Beryllium Copper | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | -30°C ~ 85°C | 0.100" (2.54mm), Full | Process Sealed | Yes |
|
|
2-435802-1SWITCH PIANO DIP SPST |
3,423 |
|
Datasheet |
7000 | Tube | Active | SPST | 11 | - | Piano | Raised | - | - | - | - | Through Hole | - | - | - | - | Yes |
|
|
4-435166-7SW ROCKER DIP SPST 0.025A 24V |
2,127 |
|
Datasheet |
7000 | Tube | Obsolete | SPST | 2 | 24VDC | Rocker | Raised | 25mA | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | -55°C ~ 105°C | 0.100" (2.54mm), Full | Sealed | Yes |
|
|
SMRR7116C-1ESW ROTARY DIP HEX COMP 0.03A 15V |
2,547 |
|
Datasheet |
SMR | Tape & Reel (TR) | Active | Hexadecimal Complement | 16 | 15VDC | Rotary for Tool | Flush, Recessed | 30mA | - | Gold | 0.319" (8.10mm) | Surface Mount, Right Angle | Gull Wing | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
90GB08LTSWITCH SLIDE DIP SPST 0.01A 30V |
3,366 |
|
Datasheet |
90GB | Tube | Obsolete | SPST | 8 | 30VDC | Slide (Standard) | Flush, Recessed | 10mA | Copper Alloy | Gold | 0.195" (4.95mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Position Identification Line | No |
|
|
FR01KC16H-06XLSW ROTARY DIP HEX COMP 0.1A 5V |
1,449 |
|
Datasheet |
FR01 | Bulk | Active | Hexadecimal Complement | 16 | 5VDC | Rotary with Shaft | Raised | 100mA | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
FR01KC16H-06XL-SSW ROTARY DIP HEX COMP 0.1A 5V |
4,149 |
|
Datasheet |
FR01 | Tube | Active | Hexadecimal Complement | 16 | 5VDC | Rotary with Shaft | Raised | 100mA | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
DMR06DIP SWITCH DM LOW PROFILE |
3,396 |
|
Datasheet |
DM | Bulk | Active | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
NDSR04VDIP SWITCH ND STANDARD |
3,533 |
|
Datasheet |
NDS | Bulk | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | Gold | 0.230" (5.85mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
2-5435802-2SWITCH PIANO DIP SPST 0.025A 24V |
2,479 |
|
Datasheet |
7000 | Tube | Obsolete | SPST | 12 | 24VDC | Piano | Raised | 25mA | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole, Right Angle | PC Pin | -55°C ~ 105°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
|
76HPSB02GWRSWITCH PIANO DIP SPST 0.15A 30V |
4,797 |
|
Datasheet |
76HP | Tape & Reel (TR) | Obsolete | SPST | 2 | 30VDC | Piano | Raised | 150mA | Copper Alloy | Gold | 0.337" (8.56mm) | Surface Mount, Right Angle | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
90HBW05RTSWITCH SLIDE DIP SPST 0.025A 24V |
3,548 |
|
Datasheet |
90HB | Tape & Reel (TR) | Active | SPST | 5 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.190" (4.83mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
A6H-8101-R100SWITCH SLIDE DIP SPST 0.025A 24V |
2,349 |
|
Datasheet |
A6H | Tape & Reel (TR) | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | - | 0.061" (1.55mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.050" (1.27mm), Half | - | No |
|
|
DM04TTRDIP SWITCH DM LOW PROFILE |
4,102 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
