| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6D-5103SWITCH SLIDE DIP SPST 0.03A 30V |
4,408 |
|
Datasheet |
A6D | Tube | Active | SPST | 5 | 30VDC | Slide (Standard) | Raised | 30mA | - | Gold | 0.213" (5.40mm) | Through Hole | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | IP64 - Dust Tight, Water Resistant | Yes |
|
|
76HPSB06GWRSWITCH PIANO DIP SPST 0.15A 30V |
3,686 |
|
Datasheet |
76HP | Tape & Reel (TR) | Obsolete | SPST | 6 | 30VDC | Piano | Raised | 150mA | Copper Alloy | Gold | 0.337" (8.56mm) | Surface Mount, Right Angle | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
5-1825059-1SWITCH SLIDE DIP SPST 0.025A 24V |
4,207 |
|
Datasheet |
ADF | Tape & Reel (TR) | Obsolete | SPST | 10 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.203" (5.15mm) | Surface Mount | J Lead | -30°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
|
2-2396234-9SWITCH ROTARY DIP 16P VERT SMD |
4,979 |
|
Datasheet |
MRSS | Bulk | Active | Hexadecimal | 16 | 20VAC/DC | Rotary for Tool | Flush, Recessed | 0.4VA | Copper Alloy | Gold | 0.122" (3.10mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
2396234-9SWITCH ROTARY DIP HEX COMP 0.4VA |
3,275 |
|
Datasheet |
MRD | Bulk | Active | Hexadecimal Complement | - | - | Rotary for Tool | Flush, Recessed | 0.4VA | Beryllium Copper | Gold | - | - | - | - | - | - | - |
|
|
2-2396234-4SWITCH ROTARY DIP 10P VERT SMD |
4,440 |
|
Datasheet |
MRSS | Bulk | Active | BCD | 10 | 20VAC/DC | Rotary for Tool | Flush, Recessed | 0.4VA | Copper Alloy | Gold | 0.122" (3.10mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
MPG306BTSW PIANO DIP DPST 0.025A 24V |
3,372 |
|
Datasheet |
MPG | Tube | Active | DPST-NO/NC | 6 | 24VDC | Piano | Raised | 25mA | Brass | Gold | 0.381" (9.68mm) | Through Hole, Right Angle | PC Pin | -25°C ~ 70°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
|
FD01FR16P-SSWITCH ROTARY DIP HEX 100MA 5V |
2,542 |
|
Datasheet |
FD01 | Tube | Active | Hexadecimal | 16 | 20VAC/DC | Rotary for Tool | Flush | 0.4VA | Brass | Gold | - | Through Hole | PC Pin | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
FD01FC10P-SSW ROTARY DIP BCD COMP 100MA 5V |
1,596 |
|
Datasheet |
FD01 | Tube | Active | BCD Complement | 10 | 20VAC/DC | Rotary for Tool | Flush | 0.4VA | Brass | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
FD01FC16P-SSW ROTARY DIP HEX COMP 100MA 5V |
3,354 |
|
Datasheet |
FD01 | Tube | Active | Hexadecimal Complement | 16 | 20VAC/DC | Rotary for Tool | Flush | 0.4VA | Brass | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
FD01FR10P-SSWITCH ROTARY DIP BCD 100MA 5V |
2,980 |
|
Datasheet |
FD01 | Tube | Active | BCD | 10 | 20VAC/DC | Rotary for Tool | Flush | 0.4VA | Brass | Gold | - | Through Hole | PC Pin | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
P36SMT103TRDIP ROTARY SWITCH P25 7MM LOW |
3,840 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
97R08TSWITCH SLIDE DIP SPST 0.025A 24V |
1,261 |
|
Datasheet |
97 | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.061" (1.55mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | - | No |
|

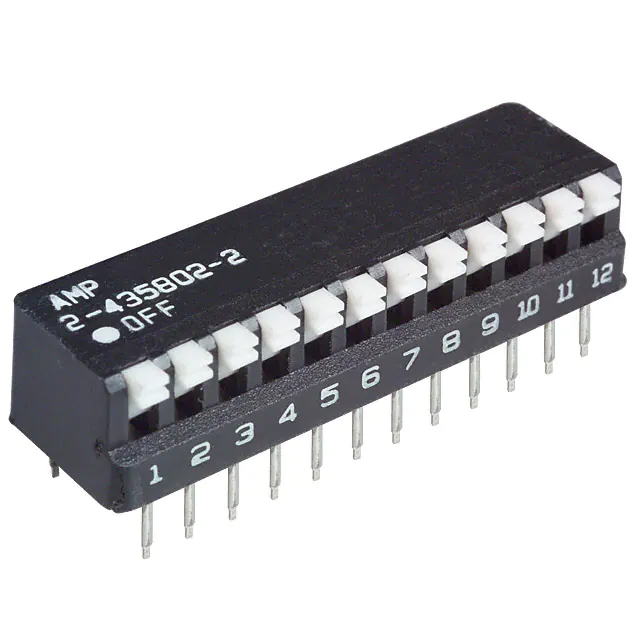

2-435802-2SWITCH PIANO DIP SPST 0.025A 24V |
1,787 |
|
Datasheet |
7000 | Tube | Active | SPST | 12 | 24VDC | Piano | Raised | 25mA | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole, Right Angle | PC Pin | -55°C ~ 105°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
|
DRD10CRASW ROTARY DIP BCD COMP 0.4VA 20V |
4,150 |
|
Datasheet |
DRD | Tube | Obsolete | BCD Complement | 10 | 20VAC/DC | Rotary for Tool | Flush, Recessed | 0.4VA | Copper Alloy | Gold | 0.413" (10.50mm) | Through Hole, Right Angle | PC Pin | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
94HCB16WRTSWITCH ROTARY DIP HEX 0.1A 50V |
2,391 |
|
Datasheet |
94H | Tape & Reel (TR) | Active | Hexadecimal | 16 | 50VDC | Rotary with Shaft | Raised | 100mA | Copper Alloy | Gold | 0.225" (5.72mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Sealed | Yes |
|
A6SN-0104-R100SWITCH SLIDE DIP SPST 0.025A 24V |
2,507 |
|
Datasheet |
A6SN | Tape & Reel (TR) | Active | SPST | 10 | 24VDC | Slide (Standard) | Raised | 25mA | - | - | 0.214" (5.45mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
P36SSG10DIP ROTARY SWITCH P25 7MM LOW |
4,360 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SA-7110BSWITCH ROTARY DIP BCD 0.1A 5V |
1,282 |
|
Datasheet |
SA-7000 | Bulk | Active | BCD | 10 | 5VDC | Rotary with Shaft | Raised | 100mA | Copper Alloy | Gold | 0.236" (6.00mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
SA-7110CSWITCH ROTARY DIP BCD 0.1A 5V |
4,329 |
|
Datasheet |
SA-7000 | Bulk | Active | BCD | 10 | 5VDC | Rotary with Shaft | Raised | 100mA | Copper Alloy | Gold | 0.252" (6.40mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
