| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
78HF04GWRTSWITCH SLIDE DIP DPST 0.15A 30V |
2,230 |
|
Datasheet |
78H | Tape & Reel (TR) | Active | DPST | 4 | 30VDC | Slide (Standard) | Raised | 150mA | Copper Alloy | Gold | 0.327" (8.30mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
94HAC16JRTSW ROTARY DIP HEX COMP 0.1A 50V |
1,145 |
|
Datasheet |
94H | Tape & Reel (TR) | Active | Hexadecimal Complement | 16 | 50VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.250" (6.35mm) | Surface Mount | J Lead | -40°C ~ 85°C | 0.100" (2.54mm), Full | Sealed | Yes |
|
|
94HFC16JRTSW ROTARY DIP HEX COMP 0.1A 50V |
2,032 |
|
Datasheet |
94H | Tape & Reel (TR) | Active | Hexadecimal Complement | 16 | 50VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.250" (6.35mm) | Surface Mount | J Lead | -40°C ~ 85°C | 0.100" (2.54mm), Full | Sealed | Yes |
|
|
94HFC10JRTSW ROTARY DIP BCD COMP 0.1A 50V |
1,728 |
|
Datasheet |
94H | Tube | Active | BCD Complement | 10 | 50VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.250" (6.35mm) | Surface Mount | J Lead | -40°C ~ 85°C | 0.100" (2.54mm), Full | Sealed | Yes |
|
|
SA-7130ASW ROTARY DIP BCD COMP 0.1A 5V |
1,543 |
|
Datasheet |
SA-7000 | Bulk | Active | BCD Complement | 10 | 5VDC | Rotary with Shaft | Raised | 100mA | Copper Alloy | Gold | 0.236" (6.00mm) | Surface Mount | J Lead | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
S-1231AWSW ROTARY DIP HEX COMP 0.1A 5V |
1,533 |
|
Datasheet |
S-1000A | Tray | Active | Hexadecimal Complement | 16 | 5VDC | Rotary with Knob | Raised | 100mA | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
S-2211AWSWITCH ROTARY DIP BCD 0.1A 5V |
2,034 |
|
Datasheet |
S-2000A | Tray | Active | BCD | 10 | 5VDC | Rotary with Knob | Raised | 100mA | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
S-2231AWSW ROTARY DIP BCD COMP 0.1A 5V |
4,572 |
|
Datasheet |
S-2000A | Tray | Active | BCD Complement | 10 | 5VDC | Rotary with Knob | Raised | 100mA | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
S-1211AWSWITCH ROTARY DIP HEX 0.1A 5V |
3,758 |
|
Datasheet |
S-1000A | Tray | Active | Hexadecimal | 16 | 5VDC | Rotary with Knob | Raised | 100mA | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

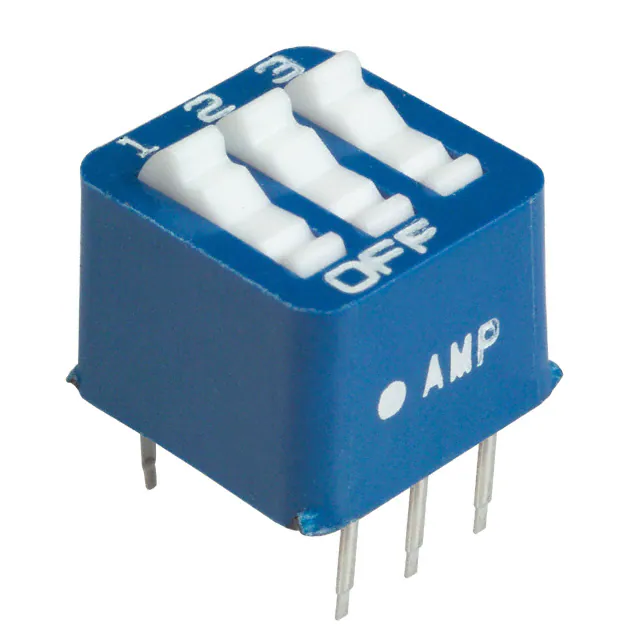

3-435640-0SWITCH ROCKER DIP SPST 0.06A 5V |
4,077 |
|
Datasheet |
7100 | Tube | Active | SPST | 3 | 5VDC | Rocker | Raised | 60mA | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | -55°C ~ 105°C | 0.100" (2.54mm), Full | - | No |
|
|
DRW16CSW ROTARY DIP HEX COMP 0.4VA 20V |
4,109 |
|
Datasheet |
DR | Tube | Obsolete | Hexadecimal Complement | 16 | 20VAC/DC | Rotary with Knob | Raised | 0.4VA | Copper Alloy | Gold | 0.386" (9.80mm) | Through Hole | PC Pin | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
S-8130WSW ROTARY DIP OCT COMP 0.1A 5V |
3,317 |
|
Datasheet |
S-8000 | Tray | Active | Octal Complement | 8 | 5VDC | Rotary with Shaft | Raised | 100mA | Copper Alloy | Gold | 0.390" (9.90mm) | Through Hole | PC Pin | -25°C ~ 70°C | 0.100" (2.54mm), Full | - | Yes |
|
|
S-8131WSW ROTARY DIP OCT COMP 0.1A 5V |
3,256 |
|
Datasheet |
S-8000 | Tray | Active | Octal Complement | 8 | 5VDC | Rotary with Shaft | Raised | 100mA | Copper Alloy | Gold | 0.283" (7.20mm) | Through Hole, Right Angle | PC Pin | -25°C ~ 70°C | 0.100" (2.54mm), Full | - | Yes |
|
|
S-8110WSWITCH ROTARY DIP OCTAL 0.1A 5V |
1,331 |
|
Datasheet |
S-8000 | Tray | Active | Octal | 8 | 5VDC | Rotary with Shaft | Raised | 100mA | Copper Alloy | Gold | 0.390" (9.90mm) | Through Hole | PC Pin | -25°C ~ 70°C | 0.100" (2.54mm), Full | - | Yes |
|
|
90HBW07PRTSWITCH SLIDE DIP SPST 0.025A 24V |
3,889 |
|
Datasheet |
90HB | Tape & Reel (TR) | Active | SPST | 7 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.190" (4.83mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|

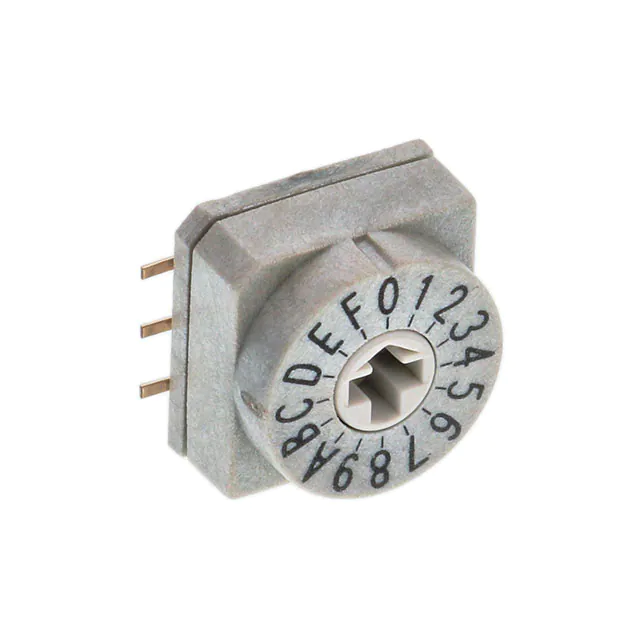

CRE16RRDM1SSWITCH ROTARY DIP HEX 0.15A 42V |
1,555 |
|
Datasheet |
CRE | Tube | Active | Hexadecimal | 16 | 42VDC | Rotary for Tool | Flush, Recessed | 150mA | Brass | Gold | 0.268" (6.80mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
DRM10SWITCH ROTARY DIP BCD 0.4VA 20V |
2,449 |
|
Datasheet |
DR | Tube | Obsolete | BCD | 10 | 20VAC/DC | Rotary with Shaft | Raised | 0.4VA | Copper Alloy | Gold | 0.543" (13.80mm) | Through Hole | PC Pin | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
TDA10H0JB1RSWITCH SLIDE DIP SPST 25MA 24VDC |
3,580 |
|
Datasheet |
TDA | Tape & Reel (TR) | Active | SPST | 10 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | - | Yes |
|
|
P36SMTSG88TRDIPCODEROTARY55-201193 |
1,555 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
A6SN-7104-R100SWITCH SLIDE DIP SPST 0.025A 24V |
4,523 |
|
Datasheet |
A6SN | Tape & Reel (TR) | Active | SPST | 7 | 24VDC | Slide (Standard) | Raised | 25mA | - | - | 0.214" (5.45mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
