| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

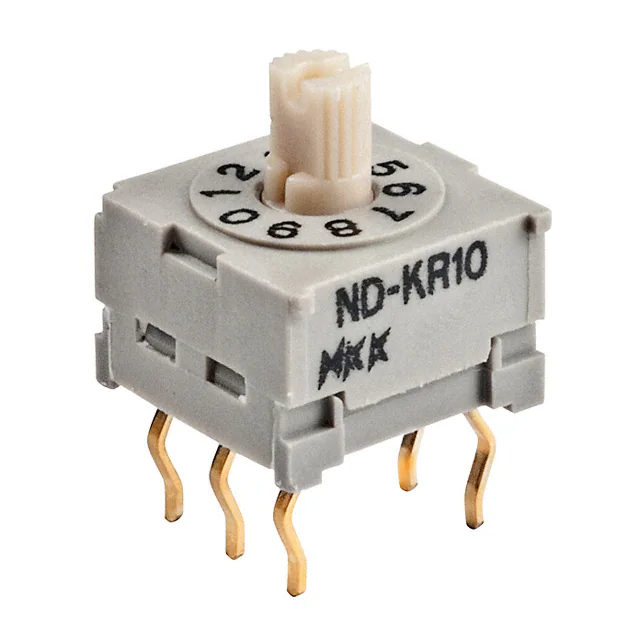

NDKR10PSWITCH ROTARY DIP BCD 0.1A 5V |
1,901 |
|
Datasheet |
ND | Tray | Obsolete | BCD | 10 | 5VDC | Rotary with Shaft | Raised | 100mA | Beryllium Copper | Gold | 0.331" (8.40mm) | Through Hole | PC Pin | -25°C ~ 75°C | 0.100" (2.54mm), Full | Process Sealed | Yes |
|
NDKC10PSW ROTARY DIP BCD COMP 0.1A 5V |
2,470 |
|
Datasheet |
ND | Box | Obsolete | BCD Complement | 10 | 5VDC | Rotary with Shaft | Raised | 100mA | Beryllium Copper | Gold | 0.331" (8.40mm) | Through Hole | PC Pin | -25°C ~ 75°C | 0.100" (2.54mm), Full | Process Sealed | Yes |
|
|
NDKC16PSW ROTARY DIP HEX COMP 0.1A 5V |
1,644 |
|
Datasheet |
ND | Box | Obsolete | Hexadecimal Complement | 16 | 5VDC | Rotary with Shaft | Raised | 100mA | Beryllium Copper | Gold | 0.331" (8.40mm) | Through Hole | PC Pin | -25°C ~ 75°C | 0.100" (2.54mm), Full | Process Sealed | Yes |
|
|
P60A701L508DIP ROTARY SWITCH P60 10MM |
3,812 |
|
Datasheet |
P60A | Bulk | Active | BCD | 10 | 24VDC | Rotary for Tool | Flush, Recessed | 150mA | Stainless Steel | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
P60A702L508DIP ROTARY SWITCH P60 10MM |
1,130 |
|
Datasheet |
P60A | Bulk | Active | BCD Complement | 10 | 24VDC | Rotary for Tool | Flush, Recessed | 150mA | Stainless Steel | Gold | 0.236" (6.00mm) | Through Hole, Right Angle | PC Pin | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
MRSSH4DC16SMGWTRSW ROTARY DIP HEX COMP 0.4VA 20V |
1,213 |
|
Datasheet |
MRSS | Tape & Reel (TR) | Active | Hexadecimal Complement | 16 | 20VAC/DC | Rotary for Tool | Flush, Recessed | 0.4VA | Copper Alloy | Gold | 0.303" (7.70mm) | Surface Mount, Right Angle | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | - | No |
|
CD10RM0SBRSWITCH ROTARY DIP BCD 0.4VA 20V |
3,924 |
|
Datasheet |
CD | Tape & Reel (TR) | Active | BCD | 10 | 20VAC/DC | Rotary for Tool | Flush, Recessed | 0.4VA | Copper Alloy | Gold | 0.168" (4.27mm) | Surface Mount | Gull Wing | -25°C ~ 85°C | 0.100" (2.54mm), Full | Process Sealed | Yes |
|
|
76RSD02TSWITCH ROCKER DIP DPDT 0.15A 30V |
1,674 |
|
Datasheet |
76 | Tube | Active | DPDT | 2 | 30VDC | Rocker | Flush, Recessed | 150mA | Copper Alloy | Gold | 0.267" (6.78mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
PT65112L508SWITCH ROTARY DIP BCD 0.15A 24V |
3,735 |
|
Datasheet |
PT65 | Tube | Active | BCD | 4 | 24VDC | Rotary for Tool | Flush, Recessed | 150mA | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | Sealed - Flux Protection | Yes |
|
PT65106L508SW ROTARY DIP HEX COMP 0.15A 24V |
4,650 |
|
Datasheet |
PT65 | Tube | Active | Hexadecimal Complement | 16 | 24VDC | Rotary for Tool | Flush, Recessed | 150mA | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | Sealed - Flux Protection | Yes |
|
PT65731SWITCH ROTARY DIP 0.15A 24V |
3,046 |
|
Datasheet |
PT65 | Tube | Active | - | - | 24VDC | Rotary for Tool | Flush, Recessed | 150mA | Phosphor Bronze | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | Sealed - Flux Protection | Yes |
|
|
PT65306L508DIP ROTARY SWITCH P60 10MM |
4,282 |
|
Datasheet |
PT65 | Bulk | Active | Hexadecimal Complement | 16 | 24VDC | Rotary with Shaft | Raised | 150mA | Phosphor Bronze | Gold | 0.543" (13.80mm) | Through Hole, Right Angle | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | Yes |
|
|
PT65306L254DIP ROTARY SWITCH P60 10MM |
3,270 |
|
Datasheet |
PT65 | Bulk | Active | Hexadecimal Complement | 16 | 24VDC | Rotary with Shaft | Raised | 150mA | Phosphor Bronze | Gold | 0.543" (13.80mm) | Through Hole, Right Angle | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | Yes |
|
|
PT65527L254DIP ROTARY SWITCH P60 10MM |
2,507 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PT65527L508DIP ROTARY SWITCH P60 10MM |
1,724 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PT65505L254DIP ROTARY SWITCH P60 10MM |
4,098 |
|
Datasheet |
PT65 | Bulk | Active | Hexadecimal | 16 | 24VDC | Rotary with Knob | Raised | 150mA | Bronze | Gold | 0.406" (10.30mm) | Through Hole, Right Angle | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | Yes |
|
|
PT65525L254DIP ROTARY SWITCH P60 10MM |
2,321 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PT65505L508DIP ROTARY SWITCH P60 10MM |
2,310 |
|
Datasheet |
PT65 | Bulk | Active | Hexadecimal | 16 | 24VDC | Rotary with Shaft | Raised | 150mA | Bronze | Gold | 0.406" (10.30mm) | Through Hole, Right Angle | PC Pin | -20°C ~ 70°C | 0.200" (5.08mm) | - | Yes |
|
|
PT65524L508DIP ROTARY SWITCH P60 10MM |
3,587 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PT65525L508DIP ROTARY SWITCH P60 10MM |
2,006 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
