| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

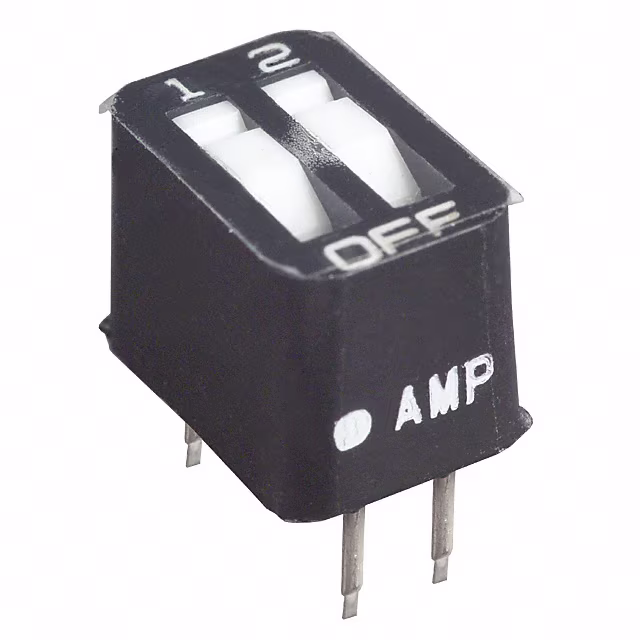

3-435626-6SW ROCKER DIP SPST 0.025A 24V |
4,292 |
|
Datasheet |
7000 | Tube | Active | SPST | 2 | 24VDC | Rocker | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole | PC Pin | -55°C ~ 105°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|

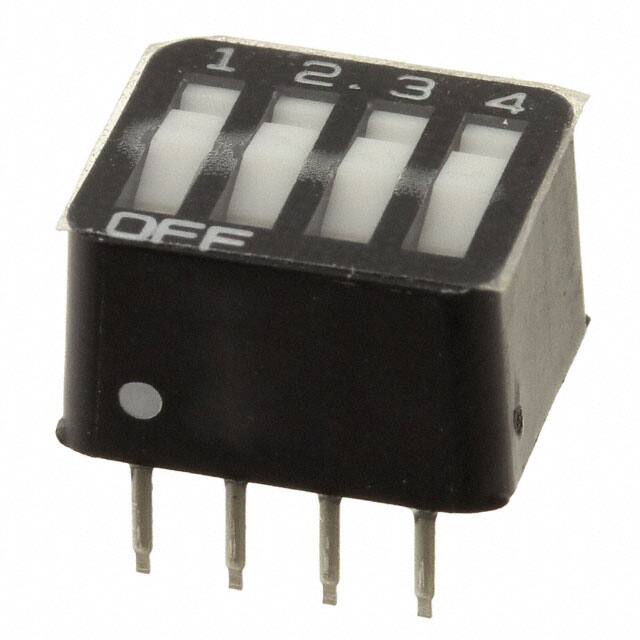

3-435626-8SW ROCKER DIP SPST 0.025A 24V |
3,396 |
|
Datasheet |
7000 | Tube | Obsolete | SPST | 4 | 24VDC | Rocker | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole | PC Pin | -55°C ~ 105°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|

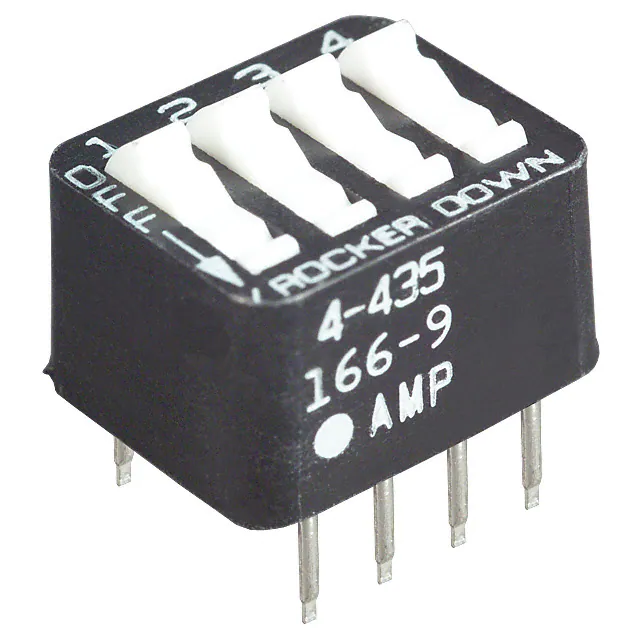

4-435166-9SW ROCKER DIP SPST 0.025A 24V |
3,106 |
|
Datasheet |
7000 | Tube | Obsolete | SPST | 4 | 24VDC | Rocker | Raised | 25mA | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | -55°C ~ 105°C | 0.100" (2.54mm), Full | Sealed | Yes |
|
4-435626-0SW ROCKER DIP SPST 0.025A 24V |
4,344 |
|
Datasheet |
7000 | Tube | Obsolete | SPST | 6 | 24VDC | Rocker | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole | PC Pin | -55°C ~ 105°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
4-435626-4SW ROCKER DIP SPST 0.025A 24V |
3,400 |
|
Datasheet |
7000 | Tube | Obsolete | SPST | 10 | 24VDC | Rocker | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole | PC Pin | -55°C ~ 105°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
435626-1SW ROCKER DIP SPST 0.025A 24V |
2,969 |
|
Datasheet |
7000 | Tube | Obsolete | SPST | 4 | 24VDC | Rocker | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole | PC Pin | -55°C ~ 105°C | 0.100" (2.54mm), Full | - | No |
|
435626-5SW ROCKER DIP SPST 0.025A 24V |
3,645 |
|
Datasheet |
7000 | Tube | Obsolete | SPST | 8 | 24VDC | Rocker | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole | PC Pin | -55°C ~ 105°C | 0.100" (2.54mm), Full | - | No |
|
54778-1SW ROTARY DIP BCD W/COMP 28V |
4,317 |
|
Datasheet |
- | Tube | Obsolete | BCD with Complement | 10 | 28VDC | Rotary for Tool | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.385" (9.78mm) | Through Hole, Right Angle | PC Pin | - | 0.100" (2.54mm), Full | Tape Seal | Yes |
|

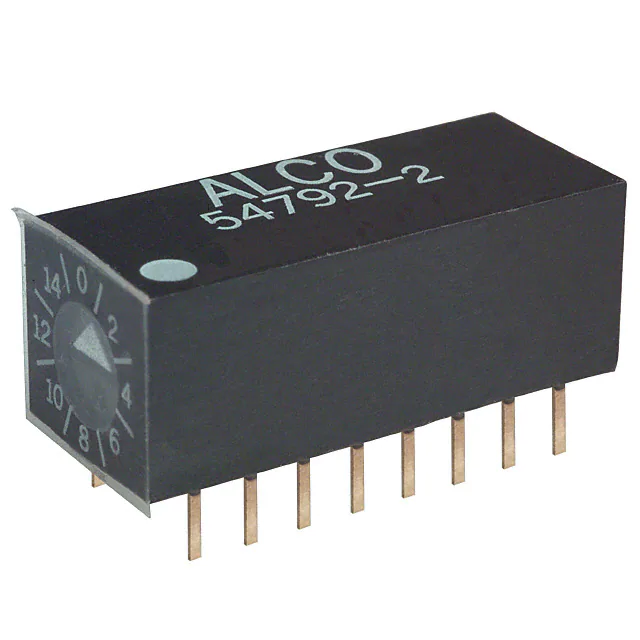

54792-2SW ROTARY DIP HEX W/COMP 28V |
1,653 |
|
Datasheet |
- | Tube | Obsolete | Hexadecimal with Complement | 16 | 28VDC | Rotary for Tool | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.385" (9.78mm) | Through Hole, Right Angle | PC Pin | - | 0.100" (2.54mm), Full | Tape Seal | Yes |
|

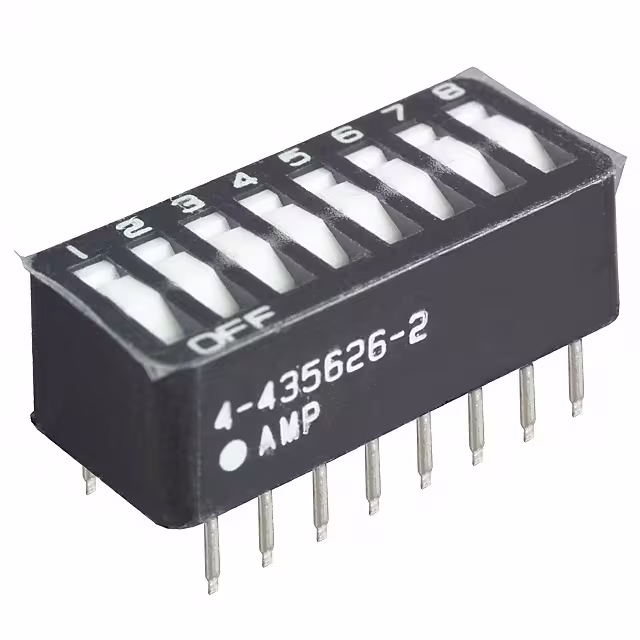

4-435626-2SW ROCKER DIP SPST 0.025A 24V |
2,312 |
|
Datasheet |
7000 | Tube | Obsolete | SPST | 8 | 24VDC | Rocker | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole | PC Pin | -55°C ~ 105°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|

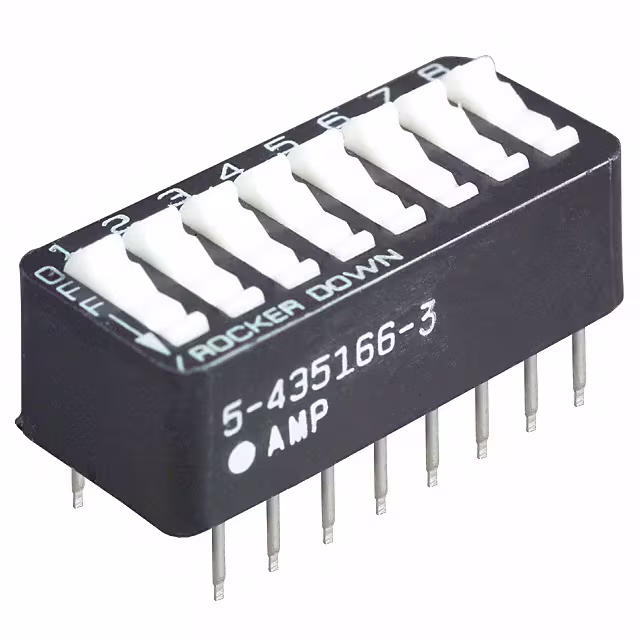

5-435166-3SW ROCKER DIP SPST 0.025A 24V |
1,603 |
|
Datasheet |
7000 | Tube | Obsolete | SPST | 8 | 24VDC | Rocker | Raised | 25mA | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | -55°C ~ 105°C | 0.100" (2.54mm), Full | Sealed | Yes |
|
A6S-2102SWITCH SLIDE DIP SPST 0.025A 24V |
4,079 |
|
Datasheet |
A6S | Tube | Obsolete | SPST | 2 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | - | 0.146" (3.70mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
A6S-4102SWITCH SLIDE DIP SPST 0.025A 24V |
2,587 |
|
Datasheet |
A6S | Tube | Obsolete | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | - | 0.146" (3.70mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
A6S-5102SWITCH SLIDE DIP SPST 0.025A 24V |
3,697 |
|
Datasheet |
A6S | Tube | Obsolete | SPST | 5 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | - | 0.146" (3.70mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
A6S-6102SWITCH SLIDE DIP SPST 0.025A 24V |
1,726 |
|
Datasheet |
A6S | Tube | Obsolete | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | - | 0.146" (3.70mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
A6S-7102SWITCH SLIDE DIP SPST 0.025A 24V |
4,540 |
|
Datasheet |
A6S | Bag | Obsolete | SPST | 7 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | - | 0.146" (3.70mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
|
A6S-8102SWITCH SLIDE DIP SPST 0.025A 24V |
4,521 |
|
Datasheet |
A6S | Tube | Obsolete | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | - | 0.146" (3.70mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
A6S-9102SWITCH SLIDE DIP SPST 0.025A 24V |
3,986 |
|
Datasheet |
A6S | Bag | Obsolete | SPST | 9 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | - | 0.146" (3.70mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
A6S-0102SWITCH SLIDE DIP SPST 0.025A 24V |
1,367 |
|
Datasheet |
A6S | Bag | Obsolete | SPST | 10 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | - | 0.146" (3.70mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
A6S-2104SWITCH SLIDE DIP SPST 0.025A 24V |
1,880 |
|
Datasheet |
A6S | Tube | Obsolete | SPST | 2 | 24VDC | Slide (Standard) | Raised | 25mA | - | - | 0.173" (4.40mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
