| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6S-4104SWITCH SLIDE DIP SPST 0.025A 24V |
4,296 |
|
Datasheet |
A6S | Tube | Obsolete | SPST | 4 | 24VDC | Slide (Standard) | Raised | 25mA | - | - | 0.173" (4.40mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|
A6S-5104SWITCH SLIDE DIP SPST 0.025A 24V |
2,843 |
|
Datasheet |
A6S | Tube | Obsolete | SPST | 5 | 24VDC | Slide (Standard) | Raised | 25mA | - | - | 0.173" (4.40mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|
A6S-6104SWITCH SLIDE DIP SPST 0.025A 24V |
4,329 |
|
Datasheet |
A6S | Tube | Obsolete | SPST | 6 | 24VDC | Slide (Standard) | Raised | 25mA | - | - | 0.173" (4.40mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|
A6S-7104SWITCH SLIDE DIP SPST 0.025A 24V |
4,114 |
|
Datasheet |
A6S | Bag | Obsolete | SPST | 7 | 24VDC | Slide (Standard) | Raised | 25mA | - | - | 0.173" (4.40mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|
|
A6S-8104SWITCH SLIDE DIP SPST 0.025A 24V |
2,585 |
|
Datasheet |
A6S | Tube | Obsolete | SPST | 8 | 24VDC | Slide (Standard) | Raised | 25mA | - | - | 0.173" (4.40mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|
|
A6S-9104SWITCH SLIDE DIP SPST 0.025A 24V |
3,581 |
|
Datasheet |
A6S | Bag | Obsolete | SPST | 9 | 24VDC | Slide (Standard) | Raised | 25mA | - | - | 0.173" (4.40mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|
A6S-0104SWITCH SLIDE DIP SPST 0.025A 24V |
1,152 |
|
Datasheet |
A6S | Bag | Obsolete | SPST | 10 | 24VDC | Slide (Standard) | Raised | 25mA | - | - | 0.173" (4.40mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|
94HBB08WSWITCH ROTARY DIP OCTAL 0.1A 50V |
2,016 |
|
Datasheet |
94H | Bag | Obsolete | Octal | 8 | 50VDC | Rotary with Shaft | Raised | 100mA | Copper Alloy | Gold | 0.225" (5.72mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Sealed | Yes |
|

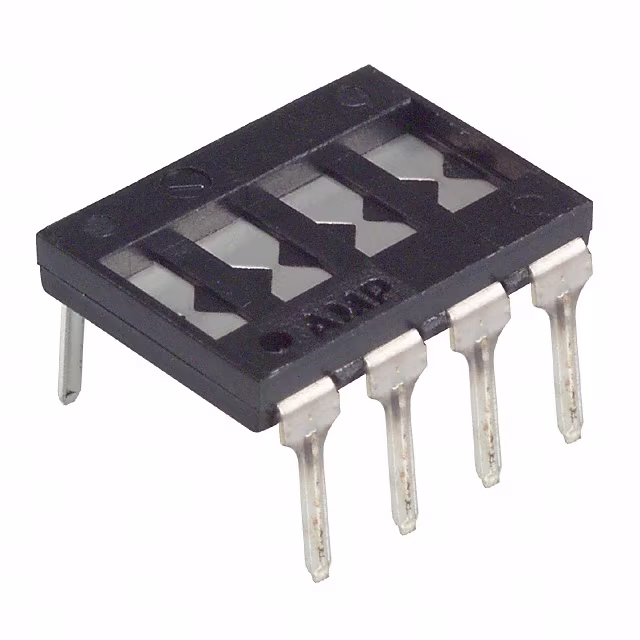

435704-4SWITCH SHUNT DIP PROGRAMMABLE |
1,624 |
|
Datasheet |
7600 | Tube | Obsolete | Programmable | 4 | - | Breakable (Shunt) | Flush, Recessed | - | Copper Alloy | Tin | 0.079" (2.00mm) | Through Hole | PC Pin | -55°C ~ 105°C | 0.100" (2.54mm), Full | - | Yes |
|

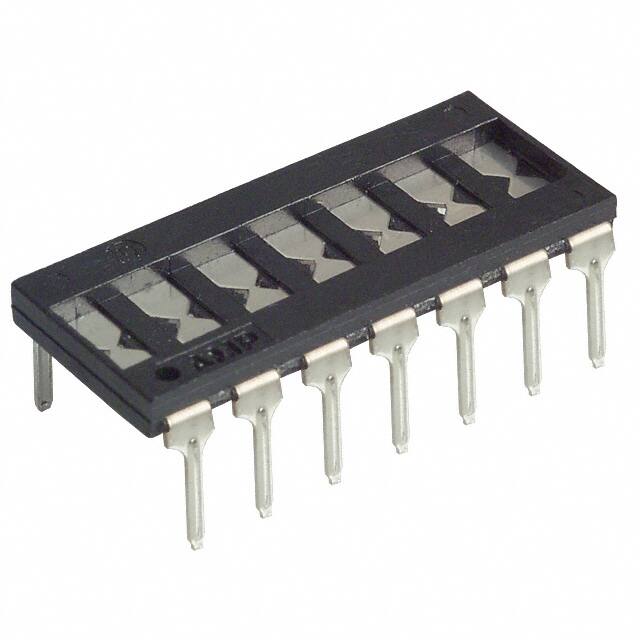

435704-7SWITCH SHUNT DIP PROGRAMMABLE |
1,073 |
|
Datasheet |
7600 | Tube | Obsolete | Programmable | 7 | - | Breakable (Shunt) | Flush, Recessed | - | Copper Alloy | Tin | 0.079" (2.00mm) | Through Hole | PC Pin | -55°C ~ 105°C | 0.100" (2.54mm), Full | - | Yes |
|

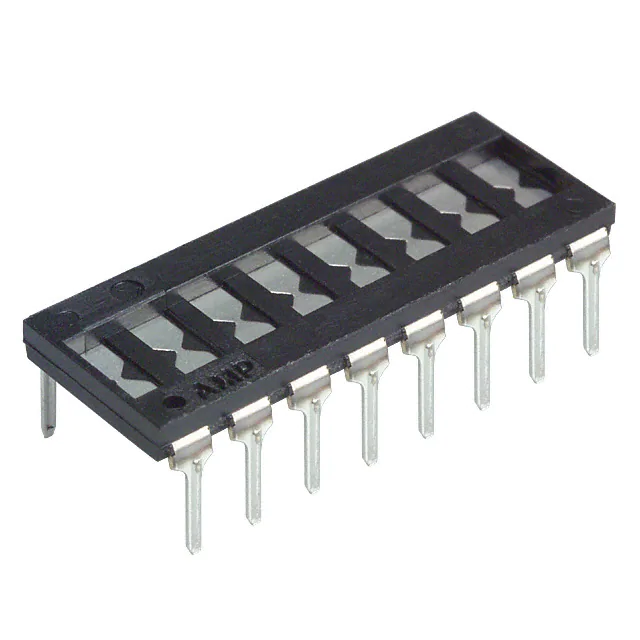

435704-8SWITCH SHUNT DIP PROGRAMMABLE |
3,494 |
|
Datasheet |
7600 | Tube | Obsolete | Programmable | 8 | - | Breakable (Shunt) | Flush, Recessed | - | Copper Alloy | Tin | 0.079" (2.00mm) | Through Hole | PC Pin | -55°C ~ 105°C | 0.100" (2.54mm), Full | - | Yes |
|

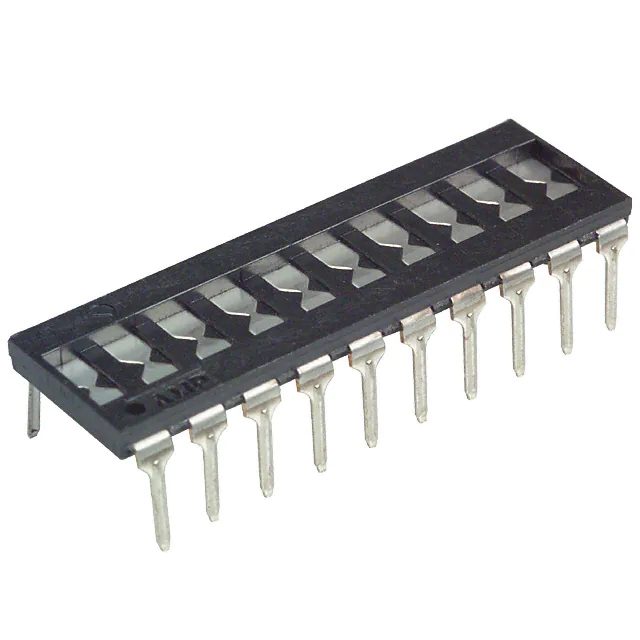

1-435704-0SWITCH SHUNT DIP PROGRAMMABLE |
1,253 |
|
Datasheet |
7600 | Tube | Obsolete | Programmable | 10 | - | Breakable (Shunt) | Flush, Recessed | - | Copper Alloy | Tin | 0.079" (2.00mm) | Through Hole | PC Pin | -55°C ~ 105°C | 0.100" (2.54mm), Full | - | Yes |
|

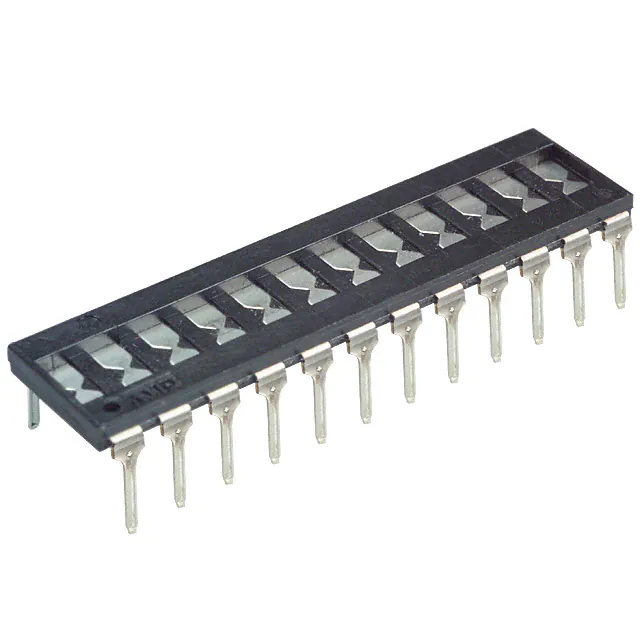

1-435704-2SWITCH SHUNT DIP PROGRAMMABLE |
2,783 |
|
Datasheet |
7600 | Tube | Obsolete | Programmable | 12 | - | Breakable (Shunt) | Flush, Recessed | - | Copper Alloy | Tin | 0.079" (2.00mm) | Through Hole | PC Pin | -55°C ~ 105°C | 0.100" (2.54mm), Full | - | Yes |
|
|
SDA02H1KDSWITCH SLIDE DIP SPST 0.025A 24V |
1,157 |
|
Datasheet |
SDA | Tube | Obsolete | SPST | 2 | 24VDC | Slide (Standard) | Raised | 25mA | Beryllium Copper | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
SDA03H1KDSWITCH SLIDE DIP SPST 0.025A 24V |
4,437 |
|
Datasheet |
SDA | Tube | Obsolete | SPST | 3 | 24VDC | Slide (Standard) | Raised | 25mA | Beryllium Copper | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
SDA04H1KDSWITCH SLIDE DIP SPST 0.025A 24V |
1,713 |
|
Datasheet |
SDA | Tube | Obsolete | SPST | 4 | 24VDC | Slide (Standard) | Raised | 25mA | Beryllium Copper | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
SDA05H1KDSWITCH SLIDE DIP SPST 0.025A 24V |
2,253 |
|
Datasheet |
SDA | Tube | Obsolete | SPST | 5 | 24VDC | Slide (Standard) | Raised | 25mA | Beryllium Copper | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
SDA06H1KDSWITCH SLIDE DIP SPST 0.025A 24V |
1,130 |
|
Datasheet |
SDA | Tube | Obsolete | SPST | 6 | 24VDC | Slide (Standard) | Raised | 25mA | Beryllium Copper | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
SDA07H1KDSWITCH SLIDE DIP SPST 0.025A 24V |
1,889 |
|
Datasheet |
SDA | Tube | Obsolete | SPST | 7 | 24VDC | Slide (Standard) | Raised | 25mA | Beryllium Copper | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
SDA08H1KDSWITCH SLIDE DIP SPST 0.025A 24V |
1,058 |
|
Datasheet |
SDA | Tube | Obsolete | SPST | 8 | 24VDC | Slide (Standard) | Raised | 25mA | Beryllium Copper | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
