DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
76GB06STSWITCH ROCKER DIP SPST 0.15A 30V |
4,695 |
|
Datasheet |
76 | Tube | Obsolete | SPST | 6 | 30VDC | Rocker | Raised | 150mA | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
|
78HF03GWRTSWITCH SLIDE DIP DPST 0.15A 30V |
1,445 |
|
Datasheet |
78H | Tape & Reel (TR) | Active | DPST | 3 | 30VDC | Slide (Standard) | Raised | 150mA | Copper Alloy | Gold | 0.327" (8.30mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
97R04RTSWITCH SLIDE DIP SPST 0.025A 24V |
4,142 |
|
Datasheet |
97 | Tape & Reel (TR) | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.061" (1.55mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | - | No |
|
97R08RTSWITCH SLIDE DIP SPST 0.025A 24V |
3,376 |
|
Datasheet |
97 | Tape & Reel (TR) | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.061" (1.55mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | - | No |
|
|
FR01AC10HSW ROTARY DIP BCD COMP 0.1A 5V |
3,454 |
|
Datasheet |
FR01 | Bulk | Obsolete | BCD Complement | 10 | 5VDC | Rotary with Shaft | Raised | 100mA | Copper Alloy | Gold | 0.433" (11.00mm) | Panel Mount, Right Angle | PC Pin | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
220ADA10SWITCH ROTARY DIP BCD 0.1A 50V |
2,142 |
|
Datasheet |
220 | Tube | Discontinued | BCD | 10 | 50VDC | Rotary for Tool | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.144" (3.66mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

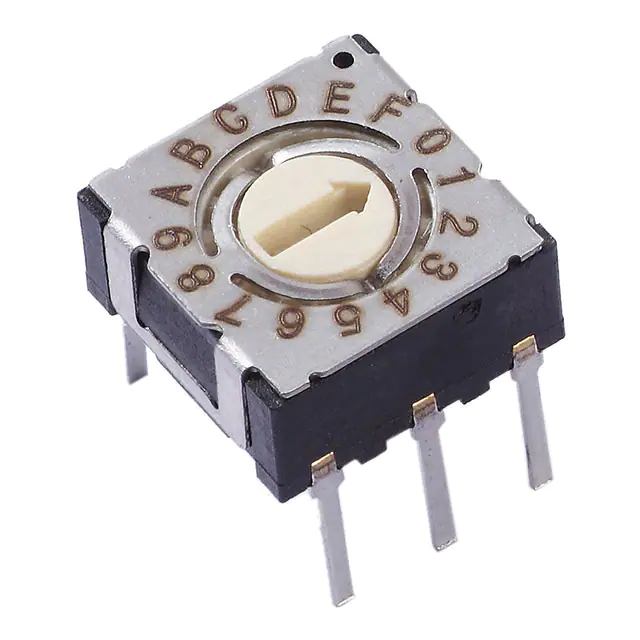

220ADA16SWITCH ROTARY DIP HEX 0.1A 50V |
3,348 |
|
Datasheet |
220 | Tube | Discontinued | Hexadecimal | 16 | 50VDC | Rotary for Tool | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.144" (3.66mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

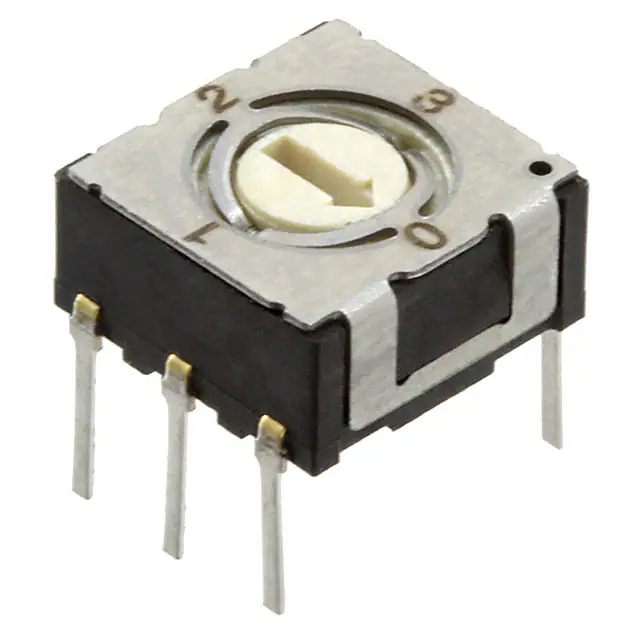

220ADA04SWITCH ROTARY DIP SP4T 0.1A 50V |
1,316 |
|
Datasheet |
220 | Tube | Discontinued | SP4T | 4 | 50VDC | Rotary for Tool | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.144" (3.66mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
418217170904SWITCH SLIDE DIP SPST 0.025A 24V |
3,536 |
|
Datasheet |
WS-DITU | Tube | Obsolete | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

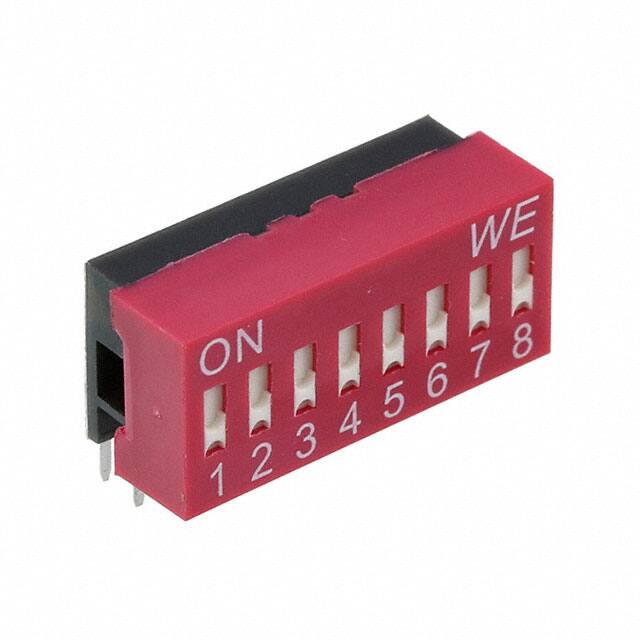

418217170908SWITCH SLIDE DIP SPST 0.025A 24V |
4,732 |
|
Datasheet |
WS-DITU | Tube | Obsolete | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
418217270902SWITCH SLIDE DIP SPST 0.025A 24V |
4,055 |
|
Datasheet |
WS-DITU | Tube | Obsolete | SPST | 2 | 24VDC | Slide (Standard) | Raised | 25mA | - | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

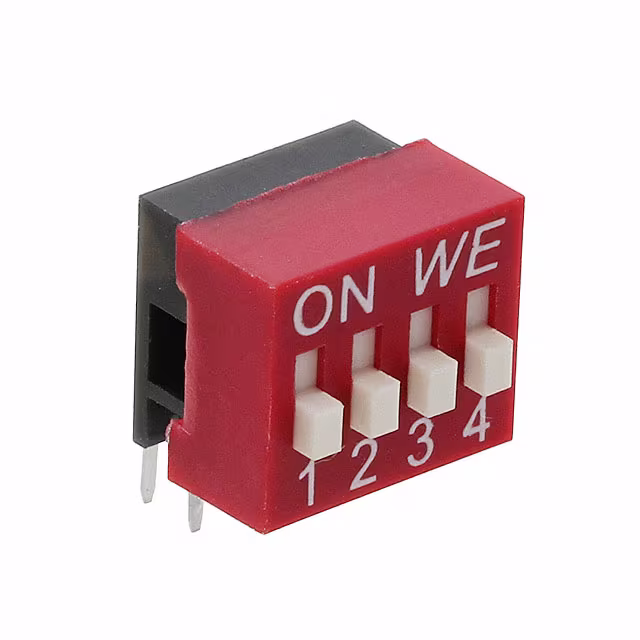

418217270904SWITCH SLIDE DIP SPST 0.025A 24V |
1,076 |
|
Datasheet |
WS-DITU | Tube | Obsolete | SPST | 4 | 24VDC | Slide (Standard) | Raised | 25mA | - | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
418217270908SWITCH SLIDE DIP SPST 0.025A 24V |
4,218 |
|
Datasheet |
WS-DITU | Tube | Obsolete | SPST | 8 | 24VDC | Slide (Standard) | Raised | 25mA | - | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
418317270902SWITCH PIANO DIP SPST 0.025A 24V |
4,861 |
|
Datasheet |
WS-DITU | Tube | Obsolete | SPST | 2 | 24VDC | Piano | Raised | 25mA | - | Gold | 0.272" (6.90mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

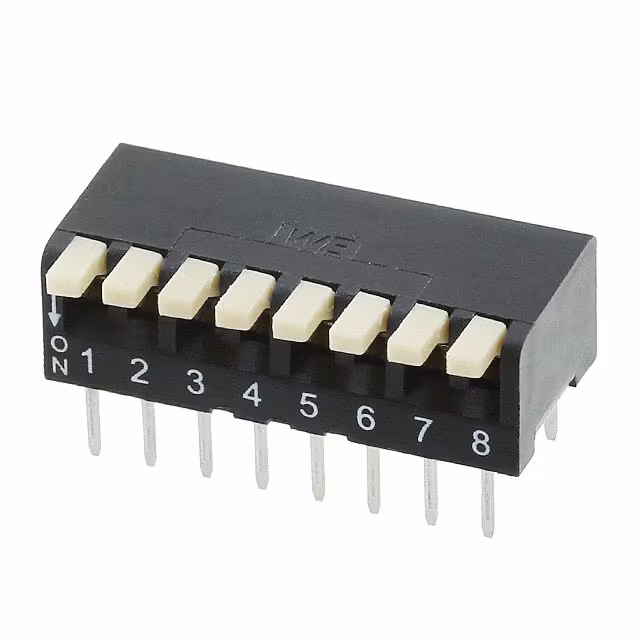

418317270908SWITCH PIANO DIP SPST 0.025A 24V |
2,653 |
|
Datasheet |
WS-DITU | Tube | Obsolete | SPST | 8 | 24VDC | Piano | Raised | 25mA | - | Gold | 0.272" (6.90mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
206-4STPSWITCH SLIDE DIP SPST 0.05A 24V |
1,680 |
|
Datasheet |
206 | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
.jpg)
|
219-4LPSTPSWITCH SLIDE DIP SPST 0.1A 20V |
3,442 |
|
Datasheet |
219 | Tube | Active | SPST | 4 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
220ADB04SWITCH ROTARY DIP SP4T 0.1A 50V |
3,172 |
|
Datasheet |
220 | Tube | Discontinued | SP4T | 4 | 50VDC | Rotary with Shaft | Raised | 100mA | Beryllium Copper | Gold | 0.262" (6.66mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

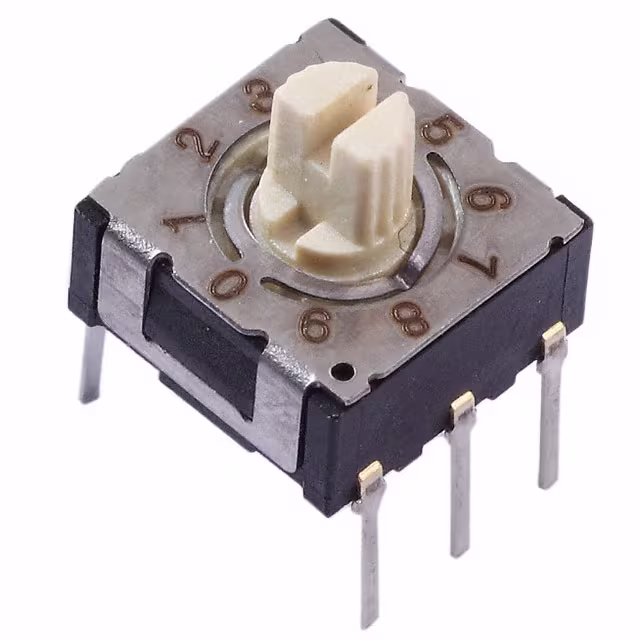

220ADB10SWITCH ROTARY DIP BCD 0.1A 50V |
4,532 |
|
Datasheet |
220 | Tube | Discontinued | BCD | 10 | 50VDC | Rotary with Shaft | Raised | 100mA | Beryllium Copper | Gold | 0.262" (6.66mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

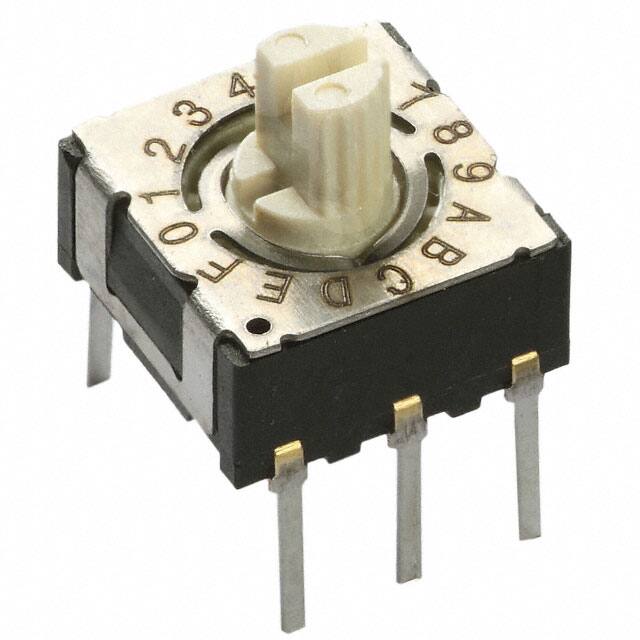

220ADB16SWITCH ROTARY DIP HEX 0.1A 50V |
4,145 |
|
Datasheet |
220 | Tube | Discontinued | Hexadecimal | 16 | 50VDC | Rotary with Shaft | Raised | 100mA | Beryllium Copper | Gold | 0.262" (6.66mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
