DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
220AMB04RSWITCH ROTARY DIP SP4T 0.1A 50V |
2,128 |
|
Datasheet |
220 | Tape & Reel (TR) | Discontinued | SP4T | 4 | 50VDC | Rotary with Shaft | Raised | 100mA | Beryllium Copper | Gold | 0.268" (6.80mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
221ADA10SWITCH ROTARY DIP BCD 0.1A 50V |
1,208 |
|
Datasheet |
221 | Tube | Discontinued | BCD | 10 | 50VDC | Rotary for Tool | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.225" (5.72mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
221ADC10SWITCH ROTARY DIP BCD 0.1A 50V |
2,657 |
|
Datasheet |
221 | Tube | Discontinued | BCD | 10 | 50VDC | Rotary with Shaft | Raised | 100mA | Beryllium Copper | Gold | 0.470" (11.94mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
221ADA16SWITCH ROTARY DIP HEX 0.1A 50V |
4,661 |
|
Datasheet |
221 | Tube | Discontinued | Hexadecimal | 16 | 50VDC | Rotary for Tool | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.225" (5.72mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
221AMB10RSWITCH ROTARY DIP BCD 0.1A 50V |
2,333 |
|
Datasheet |
221 | Tape & Reel (TR) | Discontinued | BCD | 10 | 50VDC | Rotary with Shaft | Raised | 100mA | Beryllium Copper | Gold | 0.370" (9.40mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
221AMB16RSWITCH ROTARY DIP HEX 0.1A 50V |
4,685 |
|
Datasheet |
221 | Tape & Reel (TR) | Discontinued | Hexadecimal | 16 | 50VDC | Rotary with Shaft | Raised | 100mA | Beryllium Copper | Gold | 0.370" (9.40mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
221ADB10SWITCH ROTARY DIP BCD 0.1A 50V |
3,424 |
|
Datasheet |
221 | Tube | Discontinued | BCD | 10 | 50VDC | Rotary with Shaft | Raised | 100mA | Beryllium Copper | Gold | 0.370" (9.40mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|

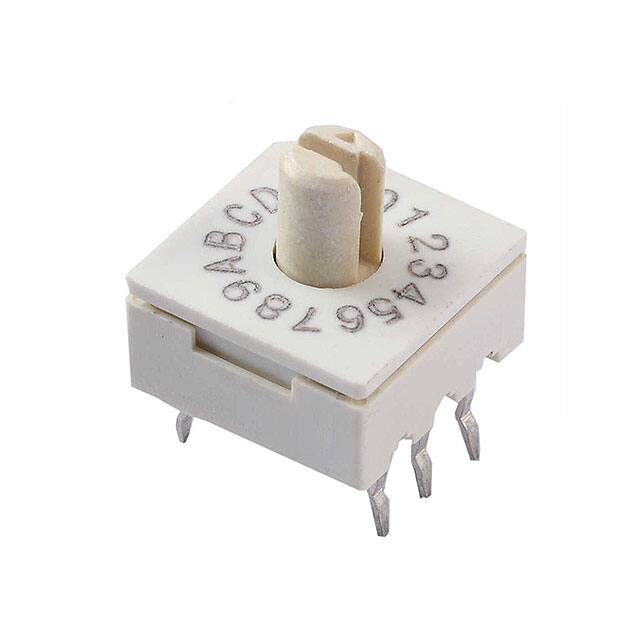

221ADB16SWITCH ROTARY DIP HEX 0.1A 50V |
2,068 |
|
Datasheet |
221 | Tube | Discontinued | Hexadecimal | 16 | 50VDC | Rotary with Shaft | Raised | 100mA | Beryllium Copper | Gold | 0.370" (9.40mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
1-1825189-3SWITCH SHUNT DIP PROGRAMMABLE |
3,068 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Programmable | 4 | - | Breakable (Shunt) | Flush, Recessed | - | Copper Alloy | Tin | 0.079" (2.00mm) | Surface Mount | Gull Wing | - | 0.100" (2.54mm), Full | - | Yes |
|
|
5-435640-3SWITCH ROCKER DIP SPST 0.06A 5V |
4,134 |
|
Datasheet |
7100 | Bulk | Obsolete | SPST | 8 | 5VDC | Rocker | Raised | 60mA | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | -55°C ~ 105°C | 0.100" (2.54mm), Full | Sealed | Yes |
|
|
5338048-2SWITCH SLIDE DIP SPST |
2,468 |
|
Datasheet |
- | Bulk | Obsolete | SPST | 2 | - | Slide (Standard) | Raised | - | Phosphor Bronze | Tin | 0.354" (9.00mm) | Through Hole | PC Pin | -25°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|
|
1571983-6SWITCH SLIDE DIP SPST 0.025A 24V |
2,939 |
|
Datasheet |
GDH | Bulk | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.050" (1.27mm), Half | - | No |
|
|
1571998-4SWITCH PIANO DIP SPST 0.025A 24V |
2,289 |
|
Datasheet |
GDP | Tape & Reel (TR) | Active | SPST | 2 | 24VDC | Piano | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.343" (8.70mm) | Surface Mount, Right Angle | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
|
1825284-2SWITCH SLIDE DIP SPST 0.4VA 20V |
1,630 |
|
Datasheet |
ATT | Tube | Active | SPST | 5 | 20VAC/DC | Slide (Standard) | Raised | 0.4VA | Copper Alloy | Gold | 0.225" (5.72mm) | Through Hole | PC Pin | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
1825429-1SWITCH PIANO DIP SPST 0.4VA 20V |
4,283 |
|
Datasheet |
ARP | Tube | Active | SPST | 8 | 20VAC/DC | Piano | Raised | 0.4VA | Copper Alloy | Gold | 0.274" (6.95mm) | Surface Mount, Right Angle | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
1825013-7SWITCH ROTARY DIP BCD 0.4VA 20V |
3,528 |
|
Datasheet |
MRD | Tube | Active | BCD | 10 | 20VAC/DC | Rotary for Tool | Flush, Recessed | 0.4VA | Beryllium Copper | Gold | 0.295" (7.50mm) | Through Hole, Right Angle | PC Pin | -30°C ~ 85°C | 0.100" (2.54mm), Full | Process Sealed | No |
|
|
1-1825013-5SW ROTARY DIP HEX COMP 0.4VA 20V |
3,789 |
|
Datasheet |
MRD | Tube | Obsolete | Hexadecimal Complement | 16 | 20VAC/DC | Rotary for Tool | Flush, Recessed | 0.4VA | Beryllium Copper | Gold | 0.122" (3.10mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | Process Sealed | No |
|
|
1825013-2SW ROTARY DIP BCD COMP 0.4VA 20V |
3,363 |
|
Datasheet |
MRD | Tube | Obsolete | BCD Complement | 10 | 20VAC/DC | Rotary for Tool | Flush, Recessed | 0.4VA | Beryllium Copper | Gold | 0.130" (3.30mm) | Through Hole | PC Pin | -30°C ~ 85°C | 0.100" (2.54mm), Full | Process Sealed | No |
|
|
1977106-1SWITCH SLIDE DIP SPST 0.01A 5V |
4,449 |
|
Datasheet |
- | Tube | Active | SPST | 10 | 5VDC | Slide (Standard) | Flush, Recessed | 10mA | Copper Alloy | Gold | 0.244" (6.20mm) | Through Hole | PC Pin | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
2-1437583-3SWITCH DIP 4 POLE DIP |
3,154 |
|
Datasheet |
DTS | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
