| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SD05H0SBSWITCH SLIDE DIP SPST 0.1A 25V |
220 |
|
Datasheet |
SD | Tube | Active | SPST | 5 | 25VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
KAN1108RTSWITCH SLIDE DIP SPST 0.025A 24V |
1,084 |
|
Datasheet |
KAN | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.063" (1.60mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|
A6D-2100SWITCH SLIDE DIP SPST 0.03A 30V |
133 |
|
Datasheet |
A6D | Tube | Active | SPST | 2 | 30VDC | Slide (Standard) | Flush, Recessed | 30mA | - | Gold | 0.173" (4.40mm) | Through Hole | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | IP64 - Dust Tight, Water Resistant | Yes |
|
TDP08H0SB1SWITCH PIANO DIP SPST 0.025A 24V |
11,503 |
|
Datasheet |
TDP | Tube | Active | SPST | 8 | 24VDC | Piano | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.164" (4.17mm) | Surface Mount, Right Angle | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|

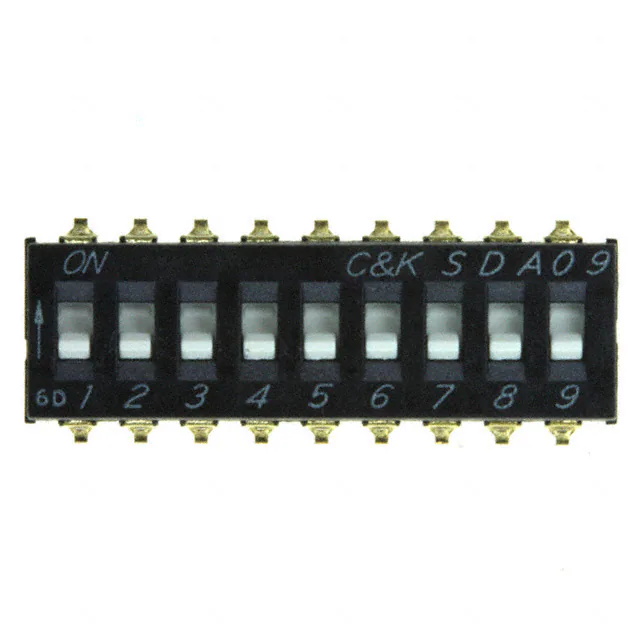

SDA09H0SBDSWITCH SLIDE DIP SPST 0.025A 24V |
1,264 |
|
Datasheet |
SDA | Tube | Active | SPST | 9 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
78RB03STSWITCH SLIDE DIP SPST 0.15A 30V |
7,959 |
|
Datasheet |
78 | Tube | Active | SPST | 3 | 30VDC | Slide (Standard) | Flush, Recessed | 150mA | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
RTE1002V14SWITCH ROTARY DIP BCD 0.1A 30V |
1,490 |
|
Datasheet |
RTE | Bulk | Active | BCD | 10 | 30VDC | Rotary with Shaft | Raised | 100mA | Bronze | Gold | 0.335" (8.50mm) | Through Hole, Right Angle | PC Pin | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
EDSP08SGLNNTR04SWITCH PIANO DIP SPST 0.025A 24V |
1,696 |
|
Datasheet |
EDSP | Tape & Reel (TR) | Active | SPST | 8 | 24VDC | Piano | Raised | 25mA | Copper Alloy | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

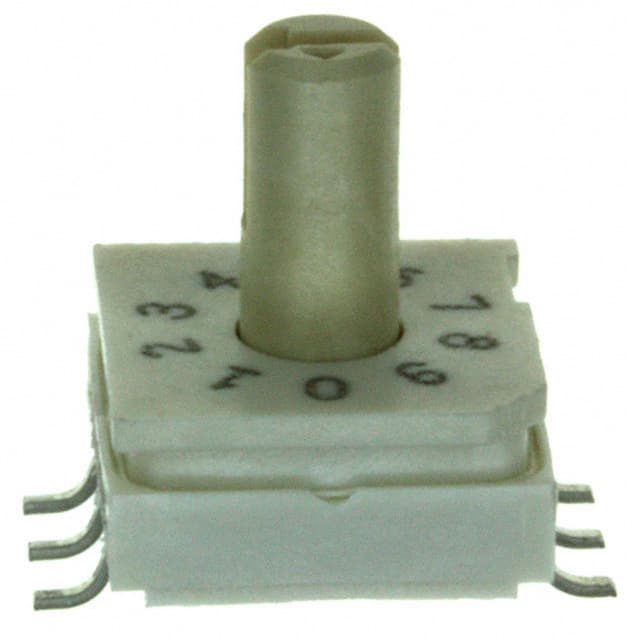

94HBB10WTSWITCH ROTARY DIP BCD 0.1A 50V |
2,137 |
|
Datasheet |
94H | Tube | Active | BCD | 10 | 50VDC | Rotary with Shaft | Raised | 100mA | Copper Alloy | Gold | 0.225" (5.72mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Sealed | Yes |
|

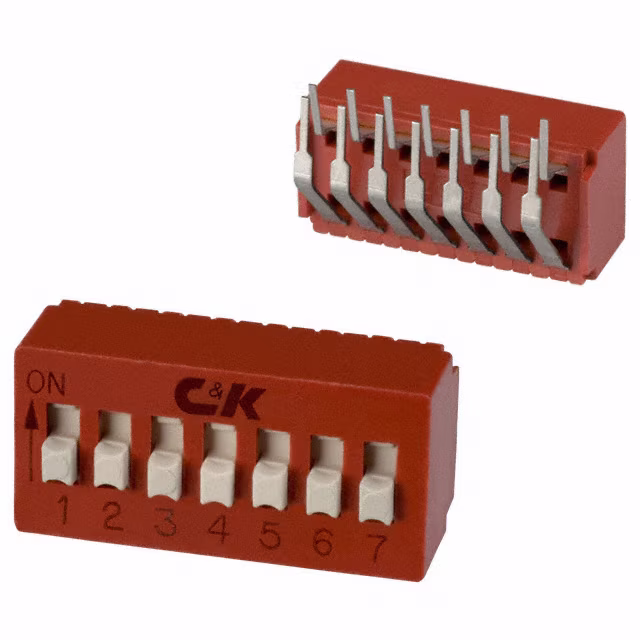

BD07AVSWITCH SLIDE DIP SPST 0.1A 5V |
794 |
|
Datasheet |
BD | Tube | Active | SPST | 7 | 5VDC | Slide (Standard) | Raised | 100mA | Phosphor Bronze | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
RTE1000N14SWITCH ROTARY DIP BCD 0.1A 30V |
10,883 |
|
Datasheet |
RTE | Tube | Active | BCD | 10 | 30VDC | Rotary for Tool | Flush, Recessed | 100mA | Bronze | Gold | 0.167" (4.25mm) | Through Hole | PC Pin | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
78RB04STSWITCH SLIDE DIP SPST 0.15A 30V |
5,438 |
|
Datasheet |
78 | Tube | Active | SPST | 4 | 30VDC | Slide (Standard) | Flush, Recessed | 150mA | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
76RSB03STSWITCH ROCKER DIP SPST 0.15A 30V |
4,482 |
|
Datasheet |
76 | Tube | Active | SPST | 3 | 30VDC | Rocker | Flush, Recessed | 150mA | Copper Alloy | Gold | 0.292" (7.41mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
A6HR-8104-PSWITCH PIANO DIP SPST 0.025A 24V |
2,768 |
|
Datasheet |
A6HR | Tape & Reel (TR) | Active | SPST | 8 | 24VDC | Piano | Raised | 25mA | - | Gold | 0.165" (4.20mm) | Surface Mount, Right Angle | Gull Wing | -30°C ~ 85°C | 0.050" (1.27mm), Half | - | No |
|

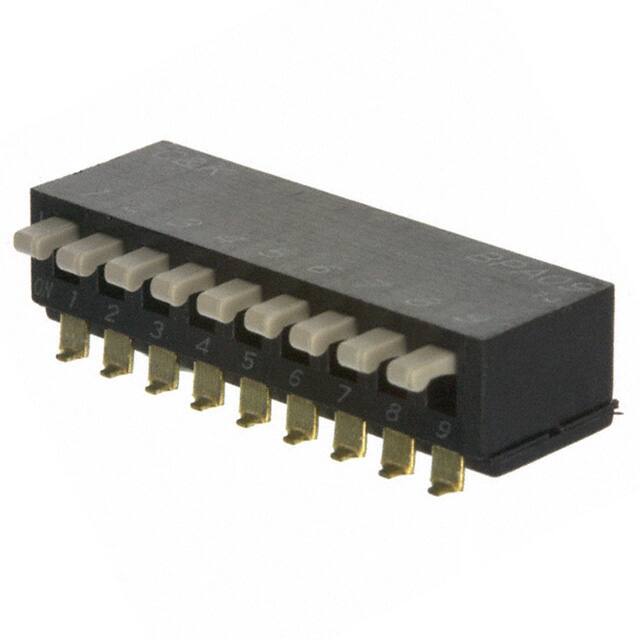

BPA09SBSWITCH PIANO DIP SPST 0.1A 5V |
848 |
|
Datasheet |
BPA | Tube | Active | SPST | 9 | 5VDC | Piano | Raised | 100mA | Beryllium Copper | Gold | 0.274" (6.95mm) | Surface Mount, Right Angle | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
78B05STSWITCH SLIDE DIP SPST 0.15A 30V |
4,911 |
|
Datasheet |
78 | Tube | Active | SPST | 5 | 30VDC | Slide (Standard) | Raised | 150mA | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
A6D-7100SWITCH SLIDE DIP SPST 0.03A 30V |
108 |
|
Datasheet |
A6D | Tube | Active | SPST | 7 | 30VDC | Slide (Standard) | Flush, Recessed | 30mA | - | Gold | 0.173" (4.40mm) | Through Hole | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | IP64 - Dust Tight, Water Resistant | Yes |
|

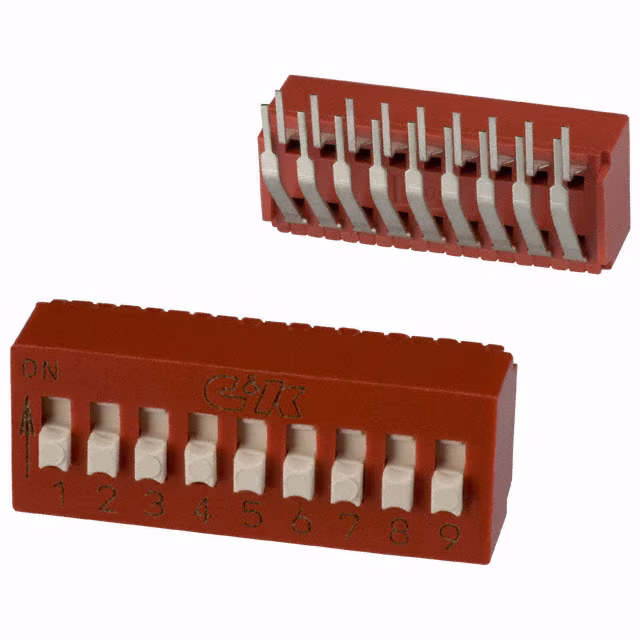

BD09AVSWITCH SLIDE DIP SPST 0.1A 5V |
445 |
|
Datasheet |
BD | Tube | Active | SPST | 9 | 5VDC | Slide (Standard) | Raised | 100mA | Phosphor Bronze | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
SD08H1SBDSWITCH SLIDE DIP SPST 0.1A 25V |
1,677 |
|
Datasheet |
SD | Tube | Active | SPST | 8 | 25VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.165" (4.20mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
428521520816SWITCH ROTARY DIP HEX 0.15A 24V |
590 |
|
Datasheet |
WS-ROSV | Tape & Reel (TR) | Active | Hexadecimal | 16 | 24VDC | Rotary for Tool | Flush, Recessed | 150mA | - | Gold | 0.268" (6.80mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | IP67 - Dust Tight, Waterproof | Yes |
