| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FR02FC16P-SSW ROTARY DIP HEX COMP 0.1A 5V |
730 |
|
Datasheet |
FR02 | Tube | Active | Hexadecimal Complement | 16 | 5VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.154" (3.90mm) | Surface Mount | Gull Wing | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
78RB05STSWITCH SLIDE DIP SPST 0.15A 30V |
4,130 |
|
Datasheet |
78 | Tube | Active | SPST | 5 | 30VDC | Slide (Standard) | Flush, Recessed | 150mA | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
90B03STSWITCH SLIDE DIP SPST 0.025A 24V |
4,766 |
|
Datasheet |
90B | Tube | Active | SPST | 3 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.195" (4.95mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|

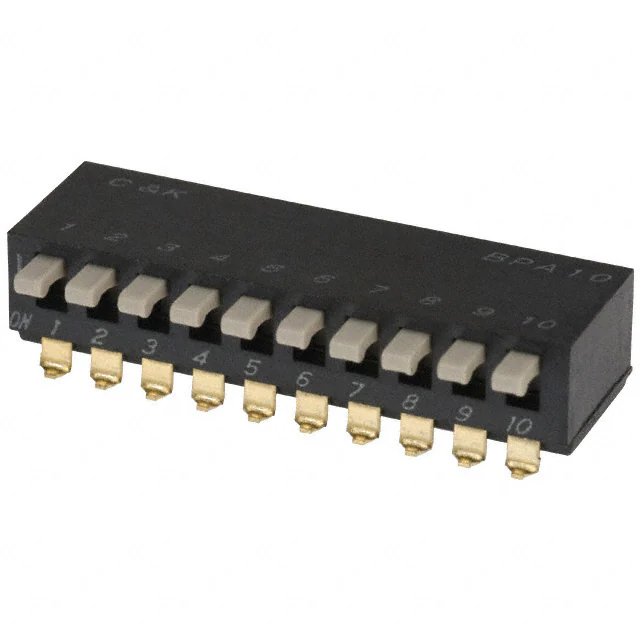

BPA10SBSWITCH PIANO DIP SPST 0.1A 5V |
2,640 |
|
Datasheet |
BPA | Tube | Active | SPST | 10 | 5VDC | Piano | Raised | 100mA | Beryllium Copper | Gold | 0.274" (6.95mm) | Surface Mount, Right Angle | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
A6D-2103SWITCH SLIDE DIP SPST 0.03A 30V |
582 |
|
Datasheet |
A6D | Tube | Active | SPST | 2 | 30VDC | Slide (Standard) | Raised | 30mA | - | Gold | 0.213" (5.40mm) | Through Hole | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | IP64 - Dust Tight, Water Resistant | Yes |
|
78B07TSWITCH SLIDE DIP SPST 0.15A 30V |
736 |
|
Datasheet |
78 | Tube | Active | SPST | 7 | 30VDC | Slide (Standard) | Raised | 150mA | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
428427520910SWITCH ROTARY DIP BCD 0.15A 24V |
195 |
|
Datasheet |
WS-ROTU | Tube | Active | BCD | 10 | 24VDC | Rotary for Tool | Flush, Recessed | 150mA | - | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
90B05STSWITCH SLIDE DIP SPST 0.025A 24V |
593 |
|
Datasheet |
90B | Tube | Active | SPST | 5 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.195" (4.95mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
A6HR-2104-PMSWITCH PIANO DIP SPST 0.025A 24V |
472 |
|
Datasheet |
A6HR | Tape & Reel (TR) | Active | SPST | 2 | 24VDC | Piano | Raised | 25mA | - | Gold | 0.165" (4.20mm) | Surface Mount, Right Angle | Gull Wing | -30°C ~ 85°C | 0.050" (1.27mm), Half | - | No |
|
78RB08TSWITCH SLIDE DIP SPST 0.15A 30V |
248 |
|
Datasheet |
78 | Tube | Active | SPST | 8 | 30VDC | Slide (Standard) | Flush, Recessed | 150mA | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
76PSB02TSWITCH PIANO DIP SPST 0.15A 30V |
3,867 |
|
Datasheet |
76 | Tube | Active | SPST | 2 | 30VDC | Piano | Raised | 150mA | Copper Alloy | Gold | 0.301" (7.65mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
FR01FR16H-06XL-SSWITCH ROTARY DIP HEX 0.1A 5V |
200 |
|
Datasheet |
FR01 | Tube | Active | Hexadecimal | 16 | 5VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

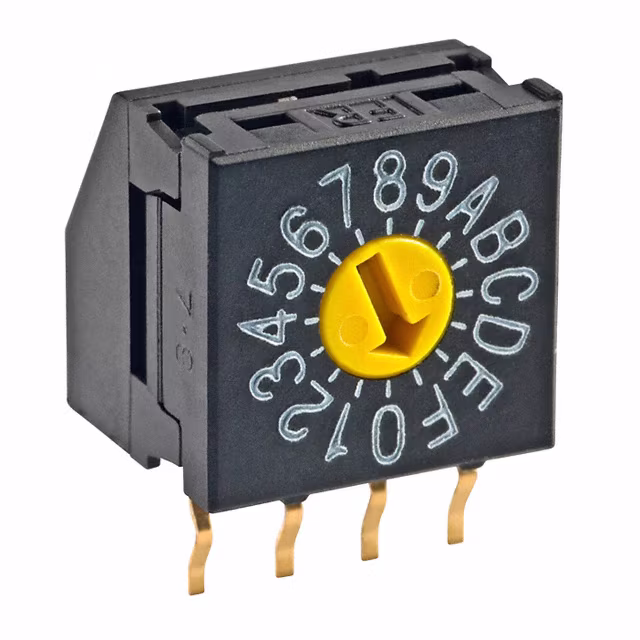

FR01FC16H-06XLSW ROTARY DIP HEX COMP 0.1A 5V |
130 |
|
Datasheet |
FR01 | Bulk | Active | Hexadecimal Complement | 16 | 5VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

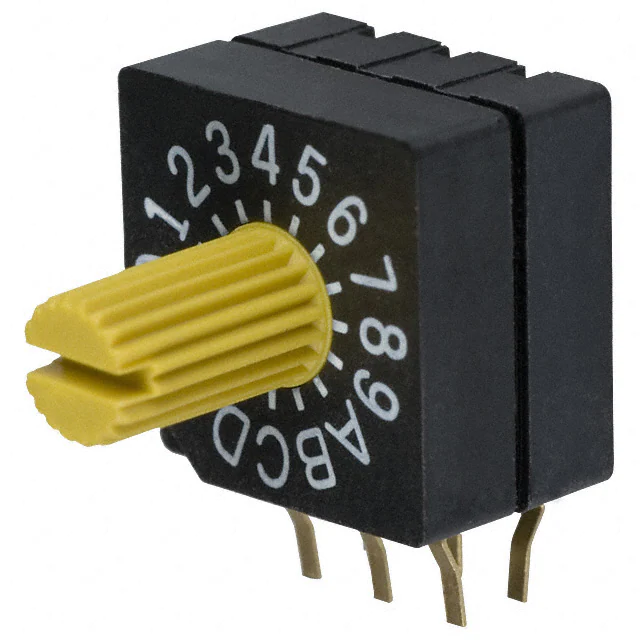

SD-1111SWITCH ROTARY DIP HEX 0.1A 5V |
415 |
|
Datasheet |
SD-1000 | Bulk | Active | Hexadecimal | 16 | 5VDC | Rotary with Shaft | Raised | 100mA | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
90B06STSWITCH SLIDE DIP SPST 0.025A 24V |
4,858 |
|
Datasheet |
90B | Tube | Active | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.195" (4.95mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
A6SN-7104SWITCH SLIDE DIP SPST 0.025A 24V |
129 |
|
Datasheet |
A6SN | Tube | Active | SPST | 7 | 24VDC | Slide (Standard) | Raised | 25mA | - | - | 0.214" (5.45mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
RTF16R3ASWITCH ROTARY DIP HEX 0.1A 5V |
668 |
|
Datasheet |
RTF | Tube | Active | Hexadecimal | 16 | 5VDC | Rotary with Shaft | Raised | 100mA | Phosphor Bronze | Gold | 0.291" (7.39mm) | Surface Mount, Right Angle | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | - | No |
|
76RSB08TSWITCH ROCKER DIP SPST 0.15A 30V |
5,005 |
|
Datasheet |
76 | Tube | Active | SPST | 8 | 30VDC | Rocker | Flush, Recessed | 150mA | Copper Alloy | Gold | 0.292" (7.41mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
DRS7116CSW ROTARY DIP HEX COMP 0.03A 15V |
240 |
|
Datasheet |
DR | Tube | Active | Hexadecimal Complement | 16 | 15VDC | Rotary for Tool | Flush, Recessed | 30mA | - | Gold | 0.161" (4.10mm) | Through Hole | PC Pin | -25°C ~ 85°C | 0.100" (2.54mm), Full | Process Sealed | Yes |
|
DRS7110CSW ROTARY DIP BCD COMP 0.03A 15V |
140 |
|
Datasheet |
DR | Tube | Active | BCD Complement | 10 | 15VDC | Rotary for Tool | Flush, Recessed | 30mA | - | Gold | 0.161" (4.10mm) | Through Hole | PC Pin | -25°C ~ 85°C | 0.100" (2.54mm), Full | Process Sealed | Yes |
